Toro Proline Mid-Size 91cm - 44410TE (406500000 - 406610836) RH Transmission No. 138-4870

Name: Toro Proline Mid-Size 91cm - 44410TE (406500000 - 406610836) RH Transmission No. 138-4870
SKU: proline_mid_size_91cm_44410te_4654661836_rh_transmission_no_138_
Price: 2.88 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size 91cm - 44410TE (406500000 - 406610836) RH Transmission No. 138-4870

Description

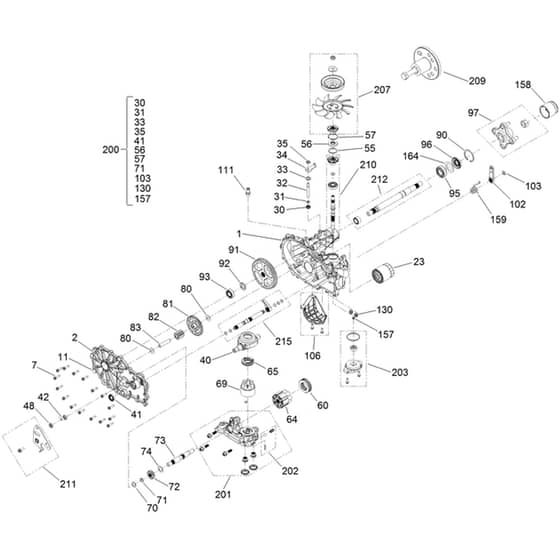

Toro Proline Mid-Size 91cm - 44410TE (406500000 - 406610836) RH Transmission No. 138-4870 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA139-4096 Available to backorder	Left Hand (Lh) Main Housing Charge Kit	£513.60 £428.00
2	HA139-4097 Available to backorder	Left Hand Control Side Cover Kit	£264.36 £220.30
7	HA117-5359 Available to backorder	Hex Head Flange (Hhf) Screw	£3.46 £2.88
11	HA353-508 Available to backorder	Plug-Straight	£8.78 £7.32
23	HA109-3321 Available to backorder	Oil Filter	£31.10 £25.92
30	HA139-7497 Available to backorder	Lip Seal	£11.10 £9.25
31	HA106-8677 Available to backorder	External Retaining Ring	£9.92 £8.27
32	HA114-1685 Available to backorder	Bypass Rod	£40.66 £33.88
33	HA106-8679 Available to backorder	Internal Retaining Ring	£10.76 £8.97
34	HA107-2489 Available to backorder	Bypass Arm	£92.12 £76.77
35	HA106-8681 Available to backorder	External Retaining Ring	£9.80 £8.17
40	HA104-5304 Available to backorder	Trunnion Swashplate	£199.92 £166.60
41	HA104-5313 Available to backorder	Lip Seal	£29.90 £24.92
42	HA104-2116 Available to backorder	Stud	£43.06 £35.88
48	HA139-4073 Available to backorder	Spacer	£15.66 £13.05
55	HA104-5308 Available to backorder	Spacer	£9.56 £7.97
56	HA104-5310 Available to backorder	Lip Seal	£44.26 £36.88
57	HA104-5309 Available to backorder	Retaining Ring	£14.34 £11.95
60	HA112-4154 Available to backorder	Thrust Bearing	£156.76 £130.63
64	HA139-4074 Available to backorder	Cylinder Block Assembly Kit	£313.08 £260.90
65	HA94-6922 Available to backorder	Thrust Bearing	£71.76 £59.80
69	HA110-8561 Available to backorder	Pump Block Assembly	£417.60 £348.00
70	HA104-5339 Available to backorder	Flat Washer	£9.54 £7.95
71	HA104-5340 Available to backorder	Retaining Ring	£8.60 £7.17
72	HA121-5749 Available to backorder	16 Tooth Gear	£15.54 £12.95
73	HA114-1691 Available to backorder	Motor Shaft	£240.24 £200.20
74	HA104-5360 Available to backorder	Washer	£11.28 £9.40
80	HA94-1933 Available to backorder	Obs Washer	£8.46 £7.05
81	HA125-0000 Available to backorder	43 Tooth Gear	£69.38 £57.82
82	HA114-1693 Available to backorder	11 Tooth Gear	£40.76 £33.97
83	HA104-5329 Available to backorder	Jackshaft Pin	£125.62 £104.68
90	HA104-2169 Available to backorder	Retaining Ring	£20.32 £16.93
91	HA114-1694 Available to backorder	54 Tooth Gear	£188.16 £156.80
92	HA120-7975 Available to backorder	Spacer	£6.44 £5.37
93	HA135-1361 Available to backorder	Bearing-Ball	£57.98 £48.32
95	HA130-8477 Available to backorder	Ball Bearing	£38.60 £32.17
96	HA104-2144 Available to backorder	Seal	£61.00 £50.83
97	HA116-3872 Available to backorder	Hub-Offset	£68.04 £56.70
102	HA125-0021 Available to backorder	Brake Handle	£21.94 £18.28
103	HA131-0906 Available to backorder	Retaining Ring	£6.10 £5.08
106	HA120-7979 Available to backorder	Left Hand Filter Guard	£33.98 £28.32
111	HA109-3278 Available to backorder	Adapter-Straight	£191.46 £159.55
130	HA114-8455 Available to backorder	Tube-Charge	£15.54 £12.95
157	HA126-1930 Available to backorder	Gerotor Seal Kit	£40.20 £33.50
158	HA116-6214 Available to backorder	Cap-Axle. Long	£17.58 £14.65
159	HA139-4099 Available to backorder	Torsion Spring	£33.78 £28.15
164	HA121-5745 Available to backorder	Spacer	£11.94 £9.95
200	HA140-8351 Available to backorder	Seal Kit	£145.78 £121.48
201	HA114-8476 Available to backorder	Left Hand (Lh) Center Section Kit	£554.40 £462.00
202	HA114-8464 Available to backorder	Charge Relief Kit	£32.90 £27.42
203	HA114-8465 Available to backorder	Charge Kit	£166.16 £138.47
207	HA135-7348 Available to backorder	Fan And Pulley Kit	£149.62 £124.68
209	HA130-8482 Available to backorder	Hub Puller Kit	£454.80 £379.00
210	HA139-7502 Available to backorder	Input Shaft Kit	£199.50 £166.25
211	HA139-7866 Available to backorder	Control Arm Kit	£56.30 £46.92
212	HA114-8470 Available to backorder	Axle Shaft Kit	£325.20 £271.00
215	HA139-7867 Available to backorder	Outboard Kit	£188.22 £156.85
