Toro Proline Mid-Size 91cm - 44410TE (400000000 - 406499999) RH Transmission No. 138-4870

Name: Toro Proline Mid-Size 91cm - 44410TE (400000000 - 406499999) RH Transmission No. 138-4870
SKU: proline_mid_size_91cm_44410te_446499999_rh_transmission_no_138_4
Price: 2.98 GBP
Availability: InStock

Part No. proline_mid_size_91cm_44410te_446499999_rh_transmission_no_138_4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size 91cm - 44410TE (400000000 - 406499999) RH Transmission No. 138-4870

Description

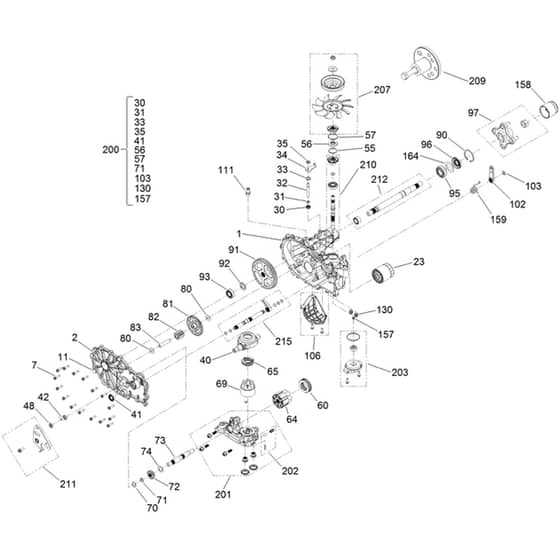

Toro Proline Mid-Size 91cm - 44410TE (400000000 - 406499999) RH Transmission No. 138-4870 Parts Diagram

	Part No.	Details
1	HA139-4096 Available to backorder	Left Hand (Lh) Main Housing Charge Kit	£488.87 £407.39
2	HA139-4097 Available to backorder	Left Hand Control Side Cover Kit	£289.56 £241.30
7	HA117-5359 Available to backorder	Hex Head Flange (Hhf) Screw	£3.58 £2.98
11	HA353-508 Available to backorder	Plug-Straight	£8.65 £7.21
23	HA109-3321 Available to backorder	Oil Filter	£32.17 £26.81
30	HA139-7497 Available to backorder	Lip Seal	£11.80 £9.83
31	HA106-8677 Available to backorder	External Retaining Ring	£10.26 £8.55
32	HA114-1685 Available to backorder	Bypass Rod	£42.06 £35.05
33	HA106-8679 Available to backorder	Internal Retaining Ring	£11.14 £9.28
34	HA107-2489 Available to backorder	Bypass Arm	£92.16 £76.80
35	HA106-8681 Available to backorder	External Retaining Ring	£10.14 £8.45
40	HA104-5304 Available to backorder	Trunnion Swashplate	£213.00 £177.50
41	HA104-5313 Available to backorder	Lip Seal	£30.94 £25.78
42	HA104-2116 Available to backorder	Stud	£44.54 £37.12
48	HA139-4073 Available to backorder	Spacer	£16.61 £13.84
55	HA104-5308 Available to backorder	Spacer	£9.89 £8.24
56	HA104-5310 Available to backorder	Lip Seal	£45.79 £38.16
57	HA104-5309 Available to backorder	Retaining Ring	£14.83 £12.36
60	HA112-4154 Available to backorder	Thrust Bearing	£165.72 £138.10
64	HA139-4074 Available to backorder	Cylinder Block Assembly Kit	£370.68 £308.90
65	HA94-6922 Available to backorder	Thrust Bearing	£71.76 £59.80
69	HA110-8561 Available to backorder	Pump Block Assembly	£397.34 £331.12
70	HA104-5339 Available to backorder	Flat Washer	£10.46 £8.72
71	HA104-5340 Available to backorder	Retaining Ring	£8.89 £7.41
72	HA121-5749 Available to backorder	16 Tooth Gear	£16.08 £13.40
73	HA114-1691 Available to backorder	Motor Shaft	£270.60 £225.50
74	HA104-5360 Available to backorder	Washer	£12.29 £10.24
80	HA94-1933 Available to backorder	Obs Washer	£9.12 £7.60
81	HA125-0000 Available to backorder	43 Tooth Gear	£69.36 £57.80
82	HA114-1693 Available to backorder	11 Tooth Gear	£44.94 £37.45
83	HA104-5329 Available to backorder	Jackshaft Pin	£125.64 £104.70
90	HA104-2169 Available to backorder	Retaining Ring	£21.02 £17.52
91	HA114-1694 Available to backorder	54 Tooth Gear	£212.04 £176.70
92	HA120-7975 Available to backorder	Spacer	£6.66 £5.55
93	HA135-1361 Available to backorder	Bearing-Ball	£61.08 £50.90
95	HA130-8477 Available to backorder	Ball Bearing	£41.59 £34.66
96	HA104-2144 Available to backorder	Seal	£60.96 £50.80
97	HA116-3872 Available to backorder	Hub-Offset	£67.56 £56.30
102	HA125-0021 Available to backorder	Brake Handle	£23.29 £19.41
103	HA131-0906 Available to backorder	Retaining Ring	£6.31 £5.26
106	HA120-7979 Available to backorder	Left Hand Filter Guard	£33.48 £27.90
111	HA109-3278 Available to backorder	Adapter-Straight	£196.32 £163.60
130	HA114-8455 Available to backorder	Tube-Charge	£16.08 £13.40
157	HA126-1930 Available to backorder	Gerotor Seal Kit	£43.26 £36.05
158	HA116-6214 Available to backorder	Cap-Axle. Long	£17.32 £14.43
159	HA139-4099 Available to backorder	Torsion Spring	£36.60 £30.50
164	HA121-5745 Available to backorder	Spacer	£12.35 £10.29
200	HA140-8351 Available to backorder	Seal Kit	£154.44 £128.70
201	HA114-8476 Available to backorder	Left Hand (Lh) Center Section Kit	£527.10 £439.25
202	HA114-8464 Available to backorder	Charge Relief Kit	£36.60 £30.50
203	HA114-8465 Available to backorder	Charge Kit	£175.32 £146.10
207	HA135-7348 Available to backorder	Fan And Pulley Kit	£154.44 £128.70
209	HA130-8482 Available to backorder	Hub Puller Kit	£433.25 £361.04
210	HA139-7502 Available to backorder	Input Shaft Kit	£202.56 £168.80
211	HA139-7866 Available to backorder	Control Arm Kit	£59.89 £49.91
212	HA114-8470 Available to backorder	Axle Shaft Kit	£309.30 £257.75
215	HA139-7867 Available to backorder	Outboard Kit	£193.08 £160.90
