Toro Proline Mid-Size 91cm - 44410TE (414700000 - 416999999) 36 Inch International Deck

Name: Toro Proline Mid-Size 91cm - 44410TE (414700000 - 416999999) 36 Inch International Deck
SKU: proline_mid_size_91cm_44410te_4147416999999_36_inch_internationa
Price: 0.4 GBP
Availability: InStock

Part No. proline_mid_size_91cm_44410te_4147416999999_36_inch_internationa

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size 91cm - 44410TE (414700000 - 416999999) 36 Inch International Deck

Description

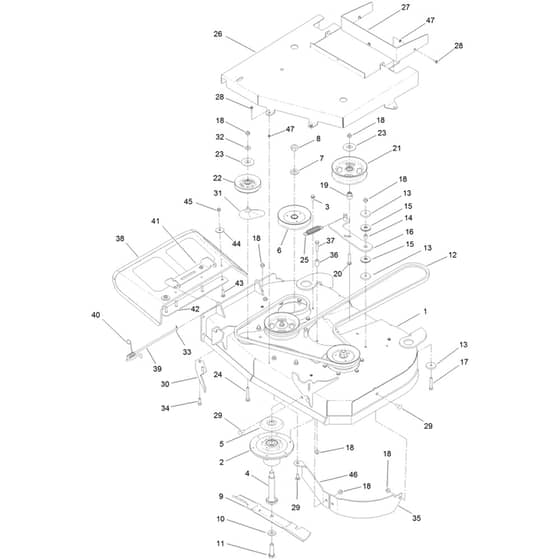

Toro Proline Mid-Size 91cm - 44410TE (414700000 - 416999999) 36 Inch International Deck Parts Diagram

	Part No.	Details
1	HA138-6802 Available to backorder	36 Inch Deck Assembly	£1,302.11 £1,085.09
2	HA139-2357 Available to backorder	Spindle Assembly	£119.64 £99.70
3	HA32144-41 Available to backorder	Taptite Screw	£5.94 £4.95
4	HA115-2642 Available to backorder	Spindle Shaft	£60.96 £50.80
5	HA138-7221 Available to backorder	Bearing Shield	£6.04 £5.03
6	HA138-6824 Available to backorder	Pulley	£37.12 £30.93
7	HA7-4150 Available to backorder	Washer	£1.99 £1.66
8	HA3219-7 Available to backorder	Hex Nut	£2.60 £2.17
9	HA138-8887-03 Available to backorder	18 Inch Hi-Flow Blade	£48.25 £40.21
10	HA125-1736 Available to backorder	Belleville Washer	£4.82 £4.02
11	HA51-4060 Available to backorder	Blade Screw	£9.40 £7.83
12	HA138-5884 Available to backorder	V-Belt For Commercial Walk Behind Mower With 36 Inch Deck	£161.52 £134.60
13	HA110-9981 Available to backorder	Plain Washer	£23.29 £19.41
14	HA139-7933 Available to backorder	Idler Bushing	£9.77 £8.14
15	HA139-7932 Available to backorder	Composite Friction Washer	£9.97 £8.31
16	HA139-7915 Available to backorder	Idler Arm Assembly	£53.21 £44.34
17	HA323-10 Available to backorder	Hex Head (Hh) Screw	£1.54 £1.28
18	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
19	HA138-7227 Available to backorder	Idler Bushing	£3.34 £2.78
20	HA323-16 Available to backorder	Carriage Screw	£3.58 £2.98
21	HA132-9425 Available to backorder	Flat Idler Pulley	£53.21 £44.34
22	HA135-4398 Available to backorder	Idler - V 4.13 Eod-A	£39.58 £32.98
23	HA126-8043 Available to backorder	Shield-Dust	£4.14 £3.45
24	HA3234-39 Available to backorder	Screw-Hhf [.375-16 X 2.5]	£1.86 £1.55
25	HA1-323071 Available to backorder	Extension Spring	£18.56 £15.47
26	HA140-5402-03 Available to backorder	Guard-Deck.Intl	£205.68 £171.40
27	HA140-5424-03 Available to backorder	Guard Bracket - Black	£58.24 £48.53
28	HA32144-4 Available to backorder	Hex Washer Head (Hwh) Screw	Was £1.60 £1.33 Special Price £0.60 £0.50
29	HA3231-27 Available to backorder	Carriage Screw	£0.94 £0.78
30	HA110-0754-01 Available to backorder	Discharge Baffle	£45.79 £38.16
31	HA109-2872 Available to backorder	Pulley Spacer	£25.99 £21.66
32	HA80-6990 Available to backorder	Hardened Washer	£5.26 £4.38
33	HA139-2614 Available to backorder	Cotter Pin	£0.48 £0.40
34	HA95-1726 In stock	Screw-Hwh Thd Form	£2.21 £1.84
35	HA110-6903-01 Available to backorder	Left Hand (Lh) Front Baffle	£81.36 £67.80
36	HA138-7230 Available to backorder	Fender Spacer	£5.29 £4.41
37	HA323-9 Available to backorder	Hex Head (Hh) Screw	£1.60 £1.33
38	HA117-1270 Available to backorder	Deflector	£89.76 £74.80
39	HA138-7231 Available to backorder	Pin	£9.89 £8.24
40	HA138-7232 Available to backorder	Torsion Spring	£3.08 £2.57
41	HA140-4282-03 Available to backorder	Bracket Assembly - Deflector [Black	£49.92 £41.60
42	HA115-5048-03 Available to backorder	Deflector Plate	£51.97 £43.31
43	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.91 £0.76
44	HA3256-68 Available to backorder	Flat Washer	£4.66 £3.88
45	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
46	HA140-4308-03 Available to backorder	Deflector Plate	£54.91 £45.76
47	HA1-803037 Available to backorder	Retaining Nut	£2.32 £1.93
