Toro Proline Mid-Size 91cm - 44410TE (413000000 - 414699999) Frame

Name: Toro Proline Mid-Size 91cm - 44410TE (413000000 - 414699999) Frame
SKU: proline_mid_size_91cm_44410te_413414699999_frame-group
Price: 0.55 GBP
Availability: InStock

Part No. proline_mid_size_91cm_44410te_413414699999_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size 91cm - 44410TE (413000000 - 414699999) Frame

Description

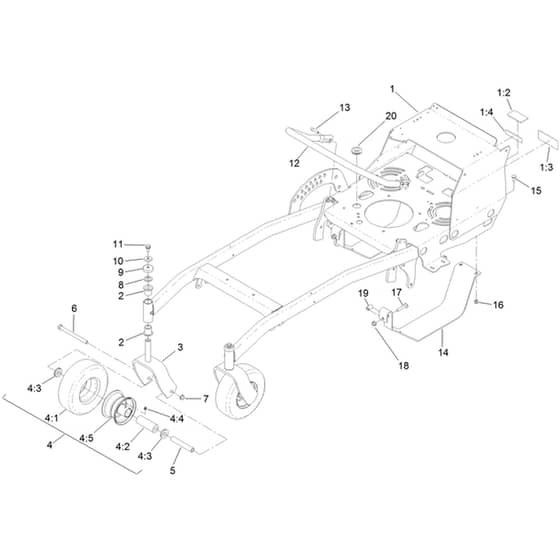

Toro Proline Mid-Size 91cm - 44410TE (413000000 - 414699999) Frame Parts Diagram

	Part No.	Details
1	HA140-1864 Available to backorder	Frame Assembly (Service)	£1,239.55 £1,032.96
1	HA138-8820 Available to backorder	[1.2] Decal - Bypass	£6.19 £5.16
1	HA126-1400 Available to backorder	[1.3] Decal-Warning. Sulky	£5.29 £4.41
1	HA98-1977 Available to backorder	[1.4] Warning Decal	£13.61 £11.34
2	HA1-303514 Available to backorder	Flange Bearing	£14.83 £12.36
3	HA116-7941-01 Available to backorder	Fork. Caster	£144.84 £120.70
4	HA140-4285 Available to backorder	Caster Wheel And Axle Assembly	£151.20 £126.00
4	HA1-513809 Available to backorder	[4.2] Bearing	£42.06 £35.05
4	HA1-513810 Available to backorder	[4.3] Bushing	£6.79 £5.66
4	HA302-61 Available to backorder	[4.4] Grease Fitting	£13.61 £11.34
5	HA1-513547 Available to backorder	Spacer	£14.83 £12.36
6	HA325-20 In stock	Hex Head (Hh) Screw	£8.06 £6.72
7	HA3296-45 Available to backorder	Hex Nut	£4.69 £3.91
9	HA126-1425 Available to backorder	Cap. Dust	£5.65 £4.71
10	HA1-373034 Available to backorder	Washer	£5.46 £4.55
12	HA138-5880-03 Available to backorder	Muffler Guard Tube	£205.68 £171.40
13	HA3274-18 Available to backorder	Hex Socket Head (Hsh) Screw	£10.99 £9.16
14	HA138-6816-03 Available to backorder	Transmission Guard	£139.92 £116.60
15	HA3230-10 Available to backorder	Carriage Bolt	£0.85 £0.71
16	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
17	HA117-9971 Available to backorder	Carriage Bolt	£3.94 £3.28
18	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
19	HA114-2754 Available to backorder	Spacer	£13.61 £11.34
20	HA1-543286 Available to backorder	Grommet	£14.83 £12.36
