Toro Proline Mid-Size - 31914 (405300000 - 410299999) Harness and Battery

Description

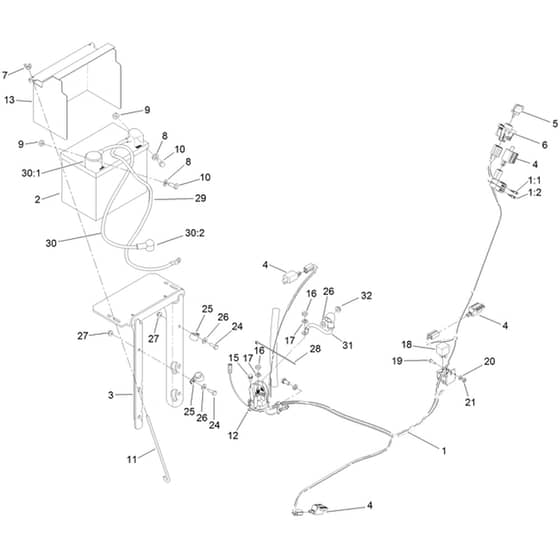

Toro Proline Mid-Size - 31914 (405300000 - 410299999) Harness and Battery Parts Diagram

	Part No.	Details
1	HA119-6667 Available to backorder	Harness-Wire	£325.08 £270.90
1	HA109103 Available to backorder	[1.1] Blade Fuse - 30 Amp	£7.54 £6.28
1	HA109102 Available to backorder	[1.2] Blade Fuse - 25 Amp	£8.14 £6.78
3	HA119-6666-03 Available to backorder	Battery Tray	£226.32 £188.60
4	HA1-513051 Available to backorder	Switch-Open. Normally	£22.26 £18.55
5	HA63-8360 Available to backorder	Ignition Key	£6.56 £5.47
6	HA137-4100 Available to backorder	Z-Master Ignition Switch	£32.17 £26.81
7	HA1-543792 Available to backorder	Wingnut	£7.03 £5.86
8	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
9	HA109-5715 Available to backorder	Nut-Hf	£0.62 £0.52
10	HA322-3 Available to backorder	Hex Head (Hh) Screw	£0.97 £0.81
11	HA1-633651 Available to backorder	Bolt-Holddown	£8.52 £7.10
12	HA117-1197 Available to backorder	Solenoid	£53.21 £44.34
13	HA117-0543-01 Available to backorder	Battery Cover	£139.92 £116.60
15	HA32144-4 Available to backorder	Hex Washer Head (Hwh) Screw	Was £1.60 £1.33 Special Price £0.60 £0.50
16	HA3220-2 Available to backorder	Jam Nut	£0.85 £0.71
17	HA3253-4 Available to backorder	Lock Washer	£0.43 £0.36
18	HA98-7249 Available to backorder	Relay	£25.99 £21.66
19	HA3290-500 Available to backorder	Phillips Pan Head (Pph) Screw	£1.46 £1.22
20	HA99-3058 Available to backorder	Washer[No. 10 X 0.450 X 12Ga. Stl. Cz ]	£5.05 £4.21
21	HA3296-2 Available to backorder	Lock Nut	£2.34 £1.95
24	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
25	HA2412-87 Available to backorder	Cable Clamp	£3.58 £2.98
26	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
27	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
28	HA1-303287 Available to backorder	Cable Tie	£0.85 £0.71
29	HA117-6422 Available to backorder	Black Battery Cable	£45.80 £38.17
30	HA109-7653 Available to backorder	Positive Battery Cable Asm	£40.84 £34.03
30	HA109-2407 Available to backorder	[30.1] Insulator-Battery	£6.04 £5.03
30	HA1-543393 Available to backorder	[30.2] Insulator-Solenoid	£6.04 £5.03
31	HA106-8268 Available to backorder	Red Battery Cable	£43.31 £36.09
32	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.43 £0.36
