Toro Proline Mid-Size - 31914 (405300000 - 410299999) Drive

Name: Toro Proline Mid-Size - 31914 (405300000 - 410299999) Drive
SKU: proline_mid_size_31914_45341299999_drive-group
Price: 0.4 GBP
Availability: InStock

Part No. proline_mid_size_31914_45341299999_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size - 31914 (405300000 - 410299999) Drive

Description

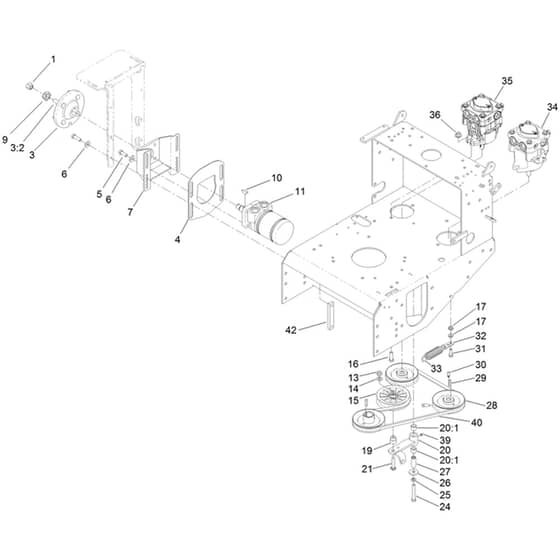

Toro Proline Mid-Size - 31914 (405300000 - 410299999) Drive Parts Diagram

	Part No.	Details
1	HA242-50 Available to backorder	Lug Nut	£2.00 £1.67
3	HA112-9049 Available to backorder	Rear Wheel Hub Assembly	£210.60 £175.50
3	HA1-633926 Available to backorder	[3.2] Wheel Stud	£5.20 £4.33
4	HA115-3805-01 Available to backorder	Debris Guard - Red	£61.86 £51.55
5	HA323-6 Available to backorder	Hex Head (Hh) Screw	£1.14 £0.95
6	HA98-5975 Available to backorder	Belleville Washer	£5.32 £4.43
7	HA103-2289-01 Available to backorder	Mount-Motor	£153.12 £127.60
9	HA116-2839 Available to backorder	Lock Nut	£13.61 £11.34
10	HA1-807019 Available to backorder	Woodruff Key	£28.28 £23.57
11	HA1-603718 Available to backorder	Hyd Motor Asm	£834.10 £695.08
13	HA32128-21 Available to backorder	Nut-Hf Lock	£0.66 £0.55
14	HA3256-24 Available to backorder	Flat Washer	£0.48 £0.40
15	HA109-4077 Available to backorder	Flat Idler Pulley	£24.74 £20.62
16	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.12 £0.93
17	HA32128-20 Available to backorder	Hex Flange (Hf) Nut	£1.22 £1.02
19	HA1-603496 Available to backorder	Idler Bushing	£11.29 £9.41
20	HA103-4681 Available to backorder	[20.1] Sleeve-Bearing	£5.20 £4.33
20	HA1-602521 Available to backorder	Idler Arm Assembly	£128.04 £106.70
21	HA3231-29 Available to backorder	Carriage Screw	£1.16 £0.97
25	HA3253-21 Available to backorder	Lock Washer	£0.48 £0.40
24	HA323-12 Available to backorder	Hex Head Screw	£1.94 £1.62
26	HA1-373034 Available to backorder	Washer	£5.46 £4.55
27	HA1-603044 Available to backorder	Bushing	£17.32 £14.43
28	HA1-413010 Available to backorder	Sheave Asm	£58.16 £48.47
29	HA1-807272 Available to backorder	Key	£5.57 £4.64
30	HA120-6474 Available to backorder	Square Head Set Screw	£2.21 £1.84
31	HA322-5 Available to backorder	Hex Head (Hh) Screw	£0.58 £0.48
32	HA1-603801 Available to backorder	Anchor-Spring	£24.74 £20.62
33	HA1-603402 Available to backorder	Extension Spring	£9.64 £8.03
34	HA116-0942 Available to backorder	Lh Hyd Pump Asm	£1,251.13 £1,042.61
35	HA116-0943 Available to backorder	Rh Hyd Pump Asm	£1,251.13 £1,042.61
36	HA32128-43 Available to backorder	Flange Nut	£1.61 £1.34
39	HA302-19 Available to backorder	Fitting-Grease [1.4-28X.51.W.Chk]	£1.06 £0.88
40	HA106-2740 Available to backorder	V-Belt For Drive Assembly	£68.16 £56.80
42	HA115-1023 Available to backorder	Nut Bar	£165.72 £138.10
