Toro Proline Mid-Size - 31914 (404315000 - 405299999) Harness and Battery

Name: Toro Proline Mid-Size - 31914 (404315000 - 405299999) Harness and Battery
SKU: proline_mid_size_31914_4431545299999_harnessbattery-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size - 31914 (404315000 - 405299999) Harness and Battery

Description

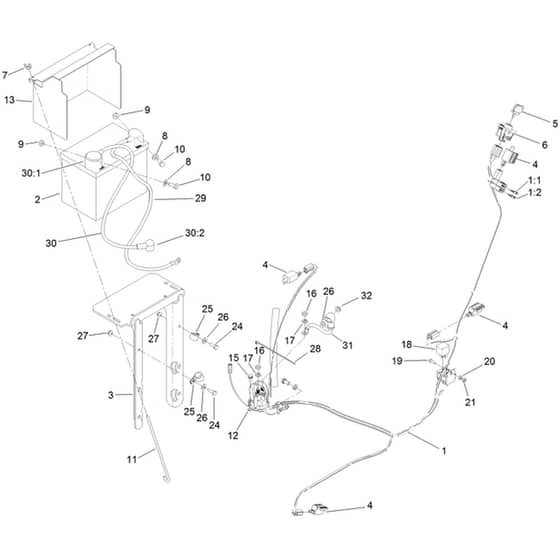

Toro Proline Mid-Size - 31914 (404315000 - 405299999) Harness and Battery Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA119-6667 Available to backorder	Harness-Wire	£290.16 £241.80
1	HA109103 Available to backorder	[1.1] Blade Fuse - 30 Amp	£7.28 £6.07
1	HA109102 Available to backorder	[1.2] Blade Fuse - 25 Amp	£7.70 £6.42
3	HA119-6666-03 Available to backorder	Battery Tray	£206.40 £172.00
4	HA1-513051 Available to backorder	Switch-Open. Normally	£21.52 £17.93
5	HA63-8360 Available to backorder	Ignition Key	£6.34 £5.28
6	HA137-4100 Available to backorder	Z-Master Ignition Switch	£31.10 £25.92
7	HA1-543792 Available to backorder	Wingnut	£6.80 £5.67
8	HA3256-23 Available to backorder	Plain Washer	£0.53 £0.44
9	HA109-5715 Available to backorder	Nut-Hf	£0.72 £0.60
10	HA322-3 Available to backorder	Hex Head (Hh) Screw	£1.13 £0.94
11	HA1-633651 Available to backorder	Bolt-Holddown	£8.27 £6.89
12	HA117-1197 Available to backorder	Solenoid	£51.44 £42.87
13	HA117-0543-01 Available to backorder	Battery Cover	£136.74 £113.95
15	HA32144-4 In stock	Hex Washer Head (Hwh) Screw	Was £1.68 £1.40 Special Price £0.60 £0.50
16	HA3220-2 Available to backorder	Jam Nut	£0.96 £0.80
17	HA3253-4 Available to backorder	Lock Washer	£0.48 £0.40
18	HA98-7249 Available to backorder	Relay	£25.12 £20.93
19	HA3290-500 Available to backorder	Phillips Pan Head (Pph) Screw	£1.70 £1.42
20	HA99-3058 Available to backorder	Washer[No. 10 X 0.450 X 12Ga. Stl. Cz ]	£4.60 £3.83
21	HA3296-2 Available to backorder	Lock Nut	£2.26 £1.88
24	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.42 £1.18
25	HA2412-87 Available to backorder	Cable Clamp	£3.46 £2.88
26	HA3256-22 Available to backorder	Flat Washer	£0.72 £0.60
27	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
28	HA1-303287 Available to backorder	Cable Tie	£0.98 £0.82
29	HA117-6422 Available to backorder	Black Battery Cable	£41.92 £34.93
30	HA109-7653 Available to backorder	Positive Battery Cable Asm	£39.48 £32.90
30	HA109-2407 Available to backorder	[30.1] Insulator-Battery	£5.84 £4.87
30	HA1-543393 Available to backorder	[30.2] Insulator-Solenoid	£5.84 £4.87
31	HA106-8268 Available to backorder	Red Battery Cable	£41.86 £34.88
32	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.48 £0.40
