Toro Proline Mid-Size - 31914 (404315000 - 405299999) Control Handle

Name: Toro Proline Mid-Size - 31914 (404315000 - 405299999) Control Handle
SKU: proline_mid_size_31914_4431545299999_control_handle-group
Price: 0.36 GBP
Availability: InStock

Part No. proline_mid_size_31914_4431545299999_control_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size - 31914 (404315000 - 405299999) Control Handle

Description

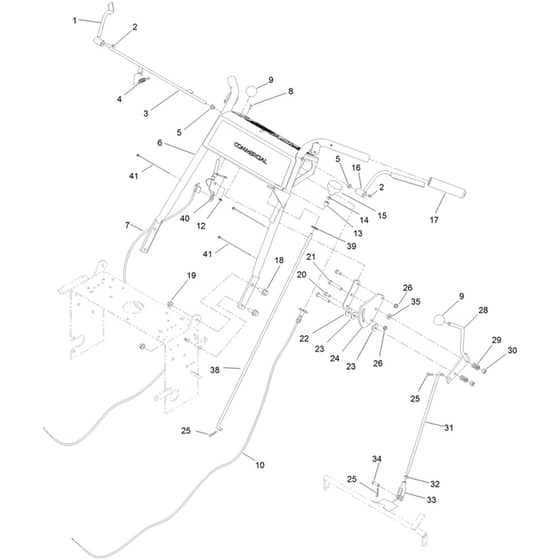

Toro Proline Mid-Size - 31914 (404315000 - 405299999) Control Handle Parts Diagram

	Part No.	Details
1	HA106-5486 Available to backorder	Right Hand Operator Presence Control Lever Assembly	£82.08 £68.40
2	HA1-803322 Available to backorder	Set Screw	£0.97 £0.81
3	HA106-2717-03 Available to backorder	Operator Presence Control Rod	£72.96 £60.80
4	HA1-303363 Available to backorder	Extension Spring	£7.54 £6.28
5	HA1-303365 Available to backorder	Nylon Bushing	£4.69 £3.91
6	HA119-6671 Available to backorder	Handle Assembly	£615.12 £512.60
7	HA119-6680 Available to backorder	Control Cable	£90.96 £75.80
8	HA1-807513 Available to backorder	Carriage Bolt	£1.97 £1.64
9	HA1-603175 Available to backorder	Knob-Ball	£13.61 £11.34
10	HA119-6679 Available to backorder	Choke Control	£134.04 £111.70
12	HA32128-17 Available to backorder	Flange Lock Nut	£0.43 £0.36
13	HA1-323143 Available to backorder	Nylon Bearing	£7.40 £6.17
14	HA3218-2 Available to backorder	Jam Nut	£0.43 £0.36
15	HA1-323134 Available to backorder	Knob-Push . Pull	£33.41 £27.84
16	HA106-5485 Available to backorder	Left Hand (Lh) Operator Presence Control Lever Assembly	£90.12 £75.10
17	HA104-9838 Available to backorder	Foam Grip	£6.66 £5.55
18	HA3234-11 Available to backorder	Hex Head Flange (Hhf) Screw	£2.11 £1.76
19	HA32128-21 Available to backorder	Nut-Hf Lock	£0.66 £0.55
20	HA321-3 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
21	HA322-10 Available to backorder	Hex Head (Hh) Screw	£1.20 £1.00
22	HA1-603716 Available to backorder	Friction Washer	£6.14 £5.12
23	HA93-1633 Available to backorder	Friction Washer	£4.46 £3.72
24	HA1-603730 Available to backorder	Plate-Lever. Shifter	£44.54 £37.12
25	HA1-806003 Available to backorder	Cotter Pin	£1.72 £1.43
26	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.43 £0.36
28	HA106-2748 Available to backorder	Shift Lever	£162.48 £135.40
29	HA1-323245 Available to backorder	Compression Spring	£7.54 £6.28
30	HA3296-29 Available to backorder	Lock Nut	£2.59 £2.16
31	HA1-323522 Available to backorder	Rod-Control. Speed	£17.32 £14.43
32	HA3220-2 Available to backorder	Jam Nut	£0.85 £0.71
33	HA1-303105 Available to backorder	Yoke-Adjustable	£14.83 £12.36
34	HA1-808280 Available to backorder	Clevis Pin	£2.83 £2.36
35	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
38	HA132-3181 Available to backorder	Linkage-Blade	£232.68 £193.90
39	HA132-3142 Available to backorder	Push Nut	£8,081.47 £6,734.56
40	HA110-5547 Available to backorder	Lever-Control	£56.81 £47.34
41	HA1-303287 Available to backorder	Cable Tie	£0.85 £0.71
