Toro Proline Mid-Size - 31914 (410300000 - 411999999) Engine and Muffler

Name: Toro Proline Mid-Size - 31914 (410300000 - 411999999) Engine and Muffler
SKU: proline_mid_size_31914_413411999999_enginemuffler-group
Price: 0.36 GBP
Availability: InStock

Part No. proline_mid_size_31914_413411999999_enginemuffler-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size - 31914 (410300000 - 411999999) Engine and Muffler

Description

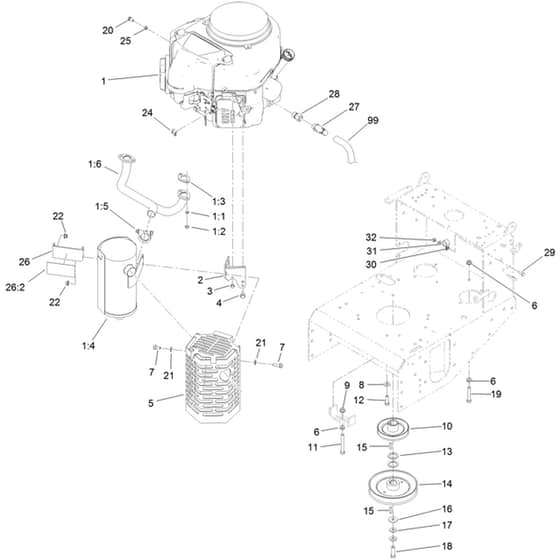

Toro Proline Mid-Size - 31914 (410300000 - 411999999) Engine and Muffler Parts Diagram

	Part No.	Details
1	HA114-3550 Available to backorder	[1.1] Lock Washer	£1.66 £1.38
1	HA114-3549 Available to backorder	[1.2] Nut	£3.34 £2.78
1	HA1-653313 Available to backorder	[1.3] Exhaust Gasket	£7.31 £6.09
1	HA119-7800 Available to backorder	[1.4] Engine Muffler	£452.95 £377.46
1	HA119-7801 Available to backorder	[1.5] Muffler Clamp	£33.26 £27.72
1	HA119-7802 Available to backorder	[1.6] Kawasaki Engine Exhaust Manifold	£180.24 £150.20
2	HA117-8561-03 Available to backorder	Muffler Bracket	£63.36 £52.80
3	HA33103-012 Available to backorder	Hex Head Flange (Hhf) Screw	£5.48 £4.57
4	HA33104-016 Available to backorder	Screw-Hhf [M8-1.25X16.Cl8.8.Yz]	£1.66 £1.38
5	HA120-3238 Available to backorder	Muffler Assembly	£544.48 £453.73
6	HA3290-357 Available to backorder	Whiz Hex Head Flange (Hhf) Nut	£1.06 £0.88
7	HA33104-025 Available to backorder	Screw-Hhf [M8-1.25 X 25. Cl8.8. Yz]	£11.09 £9.24
8	HA98-5975 Available to backorder	Belleville Washer	£5.32 £4.43
9	HA32128-21 Available to backorder	Nut-Hf Lock	£0.66 £0.55
10	HA1-653035 Available to backorder	Pulley	£76.56 £63.80
11	HA323-14 Available to backorder	Hex Head (Hh) Screw	£2.29 £1.91
12	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.12 £0.93
13	HA1-523157 Available to backorder	Special Washer	£2.32 £1.93
14	HA110-4891 Available to backorder	Pulley	£246.84 £205.70
15	HA1-807259 Available to backorder	Key	£2.34 £1.95
16	HA1-373034 Available to backorder	Washer	£5.46 £4.55
17	HA1-603610 Available to backorder	Spring Washer	£5.46 £4.55
18	HA116-3702 Available to backorder	Hex Head (Hh) Screw	£3.95 £3.29
19	HA323-11 In stock	Hex Head (Hh) Screw	Was £2.33 £1.94 Special Price £1.54 £1.28
20	HA33114-016 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
21	HA1-303334 Available to backorder	Spring Washer	£2.98 £2.48
22	HA117-1350 Available to backorder	Nut-Hf. Lock	£1.20 £1.00
24	HA81-1690 Available to backorder	Clamp-Cable	£3.83 £3.19
25	HA3253-4 Available to backorder	Lock Washer	£0.43 £0.36
26	HA120-3245 Available to backorder	Muffler Assembly	£80.16 £66.80
26	HA120-3244 Available to backorder	[26.2] Bracket Shield Foil	£13.61 £11.34
27	HA120-4321 Available to backorder	Oil Drain Valve	£22.26 £18.55
28	HA103-1966 Available to backorder	Adapter-Str	£21.02 £17.52
29	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
30	HA2412-87 Available to backorder	Cable Clamp	£3.58 £2.98
31	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
32	HA3296-42 Available to backorder	Ni Lock Nut	£0.48 £0.40
99	HA103-1964 Available to backorder	Hose-Drain. Oil	£13.61 £11.34
