Toro Proline Mid-Size - 31914 (412000000 - 999999999) Hydraulic System

Name: Toro Proline Mid-Size - 31914 (412000000 - 999999999) Hydraulic System
SKU: proline_mid_size_31914_412999999999_hydraulic_system-group
Price: 0.4 GBP
Availability: InStock

Part No. proline_mid_size_31914_412999999999_hydraulic_system-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size - 31914 (412000000 - 999999999) Hydraulic System

Description

Toro Proline Mid-Size - 31914 (412000000 - 999999999) Hydraulic System Parts Diagram

	Part No.	Details
1	HA107-8433 Available to backorder	Hydraulic Reservoir Assembly	£316.99 £264.16
1	HA115-4212 Available to backorder	[1.2] Warning Decal	£14.83 £12.36
2	HA103-1801 Available to backorder	Adapter-Straight	£37.12 £30.93
3	HA103-1807 Available to backorder	Fitting-Barbed. 45 Deg	£33.41 £27.84
4	HA103-1716 Available to backorder	Hose Clamp	£0.62 £0.52
5	HA103-1988 Available to backorder	Hose Clamp	£0.85 £0.71
6	HA119-7827 Available to backorder	Hyd High Pressure Hose Assembly	£89.76 £74.80
7	HA119-7826 Available to backorder	Hyd Hose Assembly	£101.64 £84.70
8	HA1-603991 Available to backorder	Straight Fitting	£25.99 £21.66
8	HA237-80 Available to backorder	[8.1] 0.755 Inch X 0.097 Inch O-Ring	£7.55 £6.29
9	HA321-3 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
10	HA1-805004 Available to backorder	Washer-Lock	£1.14 £0.95
11	HA103-2889 Available to backorder	Filter Head Asm	£123.24 £102.70
11	HA103-1912 Available to backorder	[11.2] Adapter-Straight	£27.20 £22.67

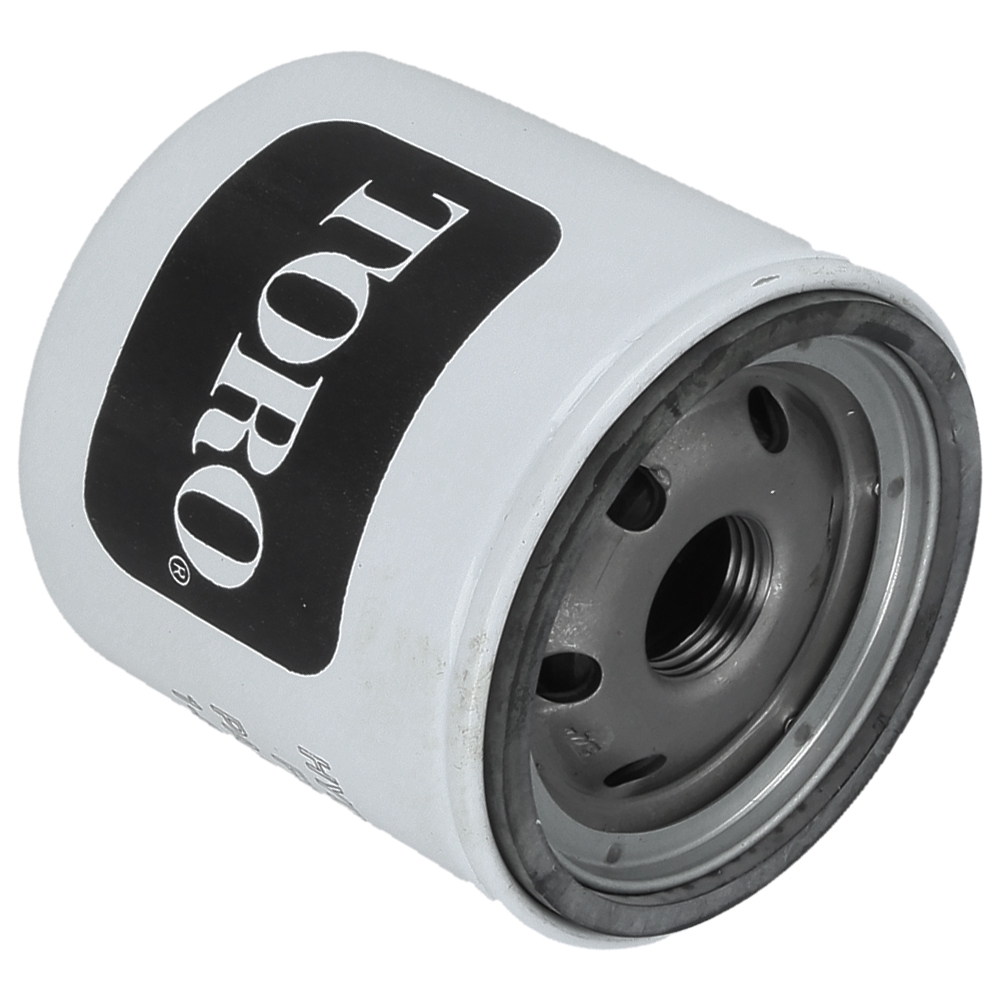

12	HA1-633750 Available to backorder	Hydraulic Oil Filter	£29.69 £24.74
13	HA116-0918 Available to backorder	Case Drain Hose Asm	£44.54 £37.12
14	HA103-1799 Available to backorder	Elbow-90 Deg	£35.88 £29.90
15	HA103-1802 Available to backorder	90 Degree Elbow Fitting Morb-6 Mjic-6	£28.45 £23.71
15	HA237-42 Available to backorder	[15.1] 0.468 Inch X 0.078 Inch O-Ring	£4.76 £3.97
16	HA116-2123 Available to backorder	Charge Hose Asm	£69.36 £57.80
17	HA103-2959 Available to backorder	Hose-Charge	£9.89 £8.24
18	HA1-603990 Available to backorder	Straight Fitting	£21.02 £17.52
18	HA1-603920 Available to backorder	[18.1] O-Ring	£4.20 £3.50
18	HA1-603992 Available to backorder	[18.2] O-Ring	£2.96 £2.47
