Toro Proline Mid-Size - 31914 (412000000 - 999999999) Engine and Muffler

Name: Toro Proline Mid-Size - 31914 (412000000 - 999999999) Engine and Muffler
SKU: proline_mid_size_31914_412999999999_enginemuffler-group
Price: 0.35 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size - 31914 (412000000 - 999999999) Engine and Muffler

Description

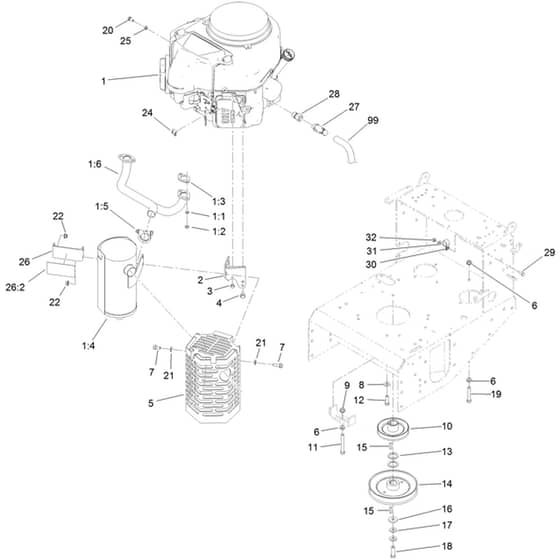

Toro Proline Mid-Size - 31914 (412000000 - 999999999) Engine and Muffler Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA114-3550 Available to backorder	[1.1] Lock Washer	£1.60 £1.33
1	HA114-3549 Available to backorder	[1.2] Nut	£3.22 £2.68
1	HA1-653313 Available to backorder	[1.3] Exhaust Gasket	£7.06 £5.88
1	HA119-7800 Available to backorder	[1.4] Engine Muffler	£471.60 £393.00
1	HA119-7801 Available to backorder	[1.5] Muffler Clamp	£32.16 £26.80
1	HA119-7802 Available to backorder	[1.6] Kawasaki Engine Exhaust Manifold	£173.04 £144.20
2	HA117-8561-03 Available to backorder	Muffler Bracket	£63.40 £52.83
3	HA33103-012 Available to backorder	Hex Head Flange (Hhf) Screw	£5.30 £4.42
4	HA33104-016 Available to backorder	Screw-Hhf [M8-1.25X16.Cl8.8.Yz]	£1.60 £1.33
5	HA120-3238 Available to backorder	Muffler Assembly	£549.60 £458.00
6	HA3290-357 Available to backorder	Whiz Hex Head Flange (Hhf) Nut	£1.02 £0.85
7	HA33104-025 Available to backorder	Screw-Hhf [M8-1.25 X 25. Cl8.8. Yz]	£10.72 £8.93
8	HA98-5975 Available to backorder	Belleville Washer	£5.14 £4.28
9	HA32128-21 Available to backorder	Nut-Hf Lock	£0.64 £0.53
10	HA1-653035 Available to backorder	Pulley	£76.56 £63.80
11	HA323-14 Available to backorder	Hex Head (Hh) Screw	£2.22 £1.85
12	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.08 £0.90
13	HA1-523157 Available to backorder	Special Washer	£2.24 £1.87
14	HA110-4891 Available to backorder	Pulley	£235.32 £196.10
15	HA1-807259 Available to backorder	Key	£2.26 £1.88
16	HA1-373034 Available to backorder	Washer	£5.28 £4.40
17	HA1-603610 Available to backorder	Spring Washer	£5.28 £4.40
18	HA116-3702 Available to backorder	Hex Head (Hh) Screw	£3.82 £3.18
19	HA323-11 In stock	Hex Head (Hh) Screw	Was £2.33 £1.94 Special Price £1.54 £1.28
20	HA33114-016 Available to backorder	Hex Head (Hh) Screw	£0.46 £0.38
21	HA1-303334 Available to backorder	Spring Washer	£2.88 £2.40
22	HA117-1350 Available to backorder	Nut-Hf. Lock	£1.16 £0.97
24	HA81-1690 Available to backorder	Clamp-Cable	£3.70 £3.08
25	HA3253-4 Available to backorder	Lock Washer	£0.42 £0.35
26	HA120-3244 Available to backorder	[26.2] Bracket Shield Foil	£13.16 £10.97
26	HA120-3245 Available to backorder	Muffler Assembly	£80.14 £66.78
27	HA120-4321 Available to backorder	Oil Drain Valve	£21.52 £17.93
28	HA103-1966 Available to backorder	Adapter-Str	£20.32 £16.93
29	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.18 £0.98
30	HA2412-87 Available to backorder	Cable Clamp	£3.46 £2.88
31	HA3256-22 Available to backorder	Flat Washer	£0.62 £0.52
32	HA3296-42 Available to backorder	Ni Lock Nut	£0.46 £0.38
99	HA103-1964 Available to backorder	Hose-Drain. Oil	£13.16 £10.97
