Toro Proline Mid-Size 122cm - 44424TE (406610858 - 412999999) Frame

Name: Toro Proline Mid-Size 122cm - 44424TE (406610858 - 412999999) Frame
SKU: proline_mid_size_122cm_44424te_4661858412999999_frame-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size 122cm - 44424TE (406610858 - 412999999) Frame

Description

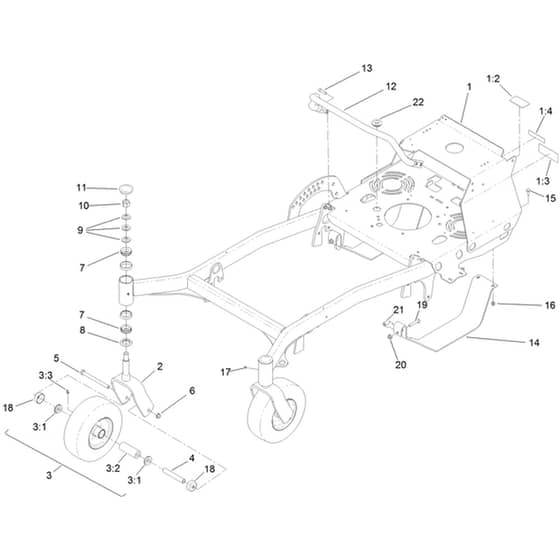

Toro Proline Mid-Size 122cm - 44424TE (406610858 - 412999999) Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA140-1865 Available to backorder	Frame Assembly	£1,665.60 £1,388.00
1	HA138-8820 Available to backorder	[1.2] Decal - Bypass	£5.98 £4.98
1	HA126-1400 Available to backorder	[1.3] Decal-Warning. Sulky	£5.12 £4.27
1	HA98-1977 Available to backorder	[1.4] Warning Decal	£13.16 £10.97
2	HA147-6343-01 Available to backorder	Grandstand Caster Fork	£240.60 £200.50
3	HA140-4286 Available to backorder	Caster Wheel And Axle Assembly	£187.08 £155.90
3	HA1-513810 Available to backorder	[3.1] Bushing	£6.56 £5.47
3	HA1-513809 Available to backorder	[3.2] Bearing	£40.66 £33.88
4	HA1-513547 Available to backorder	Spacer	£14.34 £11.95
5	HA325-20 In stock	Hex Head (Hh) Screw	£7.52 £6.27
6	HA3296-45 Available to backorder	Hex Nut	£4.54 £3.78
7	HA1-543509 Available to backorder	Bearing-Roller. Tapered	£16.74 £13.95
8	HA1-543511 Available to backorder	Seal-Grease	£13.16 £10.97
9	HA1-633508 In stock	Belleville Washer	£5.16 £4.30
10	HA3296-51 Available to backorder	Ni Lock Nut	£5.06 £4.22
11	HA103-4882 Available to backorder	Grease Cap	£8.72 £7.27
12	HA138-5881-03 Available to backorder	Muffler Guard Tube	£170.54 £142.12
13	HA3274-18 Available to backorder	Hex Socket Head (Hsh) Screw	£10.62 £8.85
14	HA139-2938-03 Available to backorder	Transmission Guard	£120.66 £100.55
15	HA3230-10 Available to backorder	Carriage Bolt	£0.96 £0.80
16	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
17	HA1-811010 Available to backorder	Plug	£5.84 £4.87
18	HA133-7088 Available to backorder	Seal Guard	£2.86 £2.38
19	HA117-9971 Available to backorder	Carriage Bolt	£3.80 £3.17
20	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
21	HA114-2754 Available to backorder	Spacer	£13.16 £10.97
22	HA1-543286 Available to backorder	Grommet	£14.34 £11.95
