Toro Proline Mid-Size 122cm - 44424TE (406610858 - 412999999) 48 Inch International Deck

Description

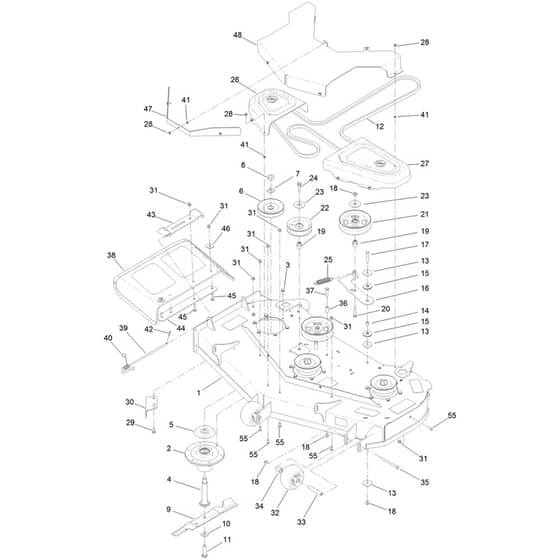

Toro Proline Mid-Size 122cm - 44424TE (406610858 - 412999999) 48 Inch International Deck Parts Diagram

	Part No.	Details
1	HA138-6805 Available to backorder	48 Inch Deck Assembly (Service)	£1,346.12 £1,121.77
2	HA139-2357 Available to backorder	Spindle Assembly	£119.64 £99.70
3	HA32144-41 Available to backorder	Taptite Screw	£5.94 £4.95
4	HA115-2642 Available to backorder	Spindle Shaft	£60.96 £50.80
5	HA138-7221 Available to backorder	Bearing Shield	£6.04 £5.03
6	HA138-7224 Available to backorder	Pulley	£90.96 £75.80
7	HA7-4150 Available to backorder	Washer	£1.99 £1.66
8	HA3219-7 Available to backorder	Hex Nut	£2.60 £2.17
9	HA138-8888-03 Available to backorder	16.5 Inch Hi-Flow Blade	£19.88 £16.57
10	HA125-1736 Available to backorder	Belleville Washer	£4.82 £4.02
11	HA51-4060 Available to backorder	Blade Screw	£9.40 £7.83
12	HA126-0784 Available to backorder	Belt. Deck	£163.92 £136.60
13	HA110-9981 Available to backorder	Plain Washer	£23.29 £19.41
14	HA139-7933 Available to backorder	Idler Bushing	£9.77 £8.14
15	HA139-7932 Available to backorder	Composite Friction Washer	£9.97 £8.31
16	HA139-7915 Available to backorder	Idler Arm Assembly	£53.21 £44.34
17	HA323-11 In stock	Hex Head (Hh) Screw	Was £2.33 £1.94 Special Price £1.54 £1.28
18	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
19	HA138-7227 Available to backorder	Idler Bushing	£3.34 £2.78
20	HA323-16 Available to backorder	Carriage Screw	£3.58 £2.98
21	HA132-9425 Available to backorder	Flat Idler Pulley	£53.21 £44.34
22	HA132-4718 Available to backorder	Flat Idler Pulley	£39.58 £32.98
23	HA126-8043 Available to backorder	Shield-Dust	£4.14 £3.45
24	HA3234-19 Available to backorder	Hex Head Flange (Hhf) Screw	£2.98 £2.48
25	HA1-323071 Available to backorder	Extension Spring	£18.56 £15.47
26	HA133-9283 Available to backorder	Right Hand Belt Cover	£23.51 £19.59
27	HA133-9282 Available to backorder	Left Hand Belt Cover	£27.20 £22.67
28	HA32144-4 Available to backorder	Hex Washer Head (Hwh) Screw	Was £1.60 £1.33 Special Price £0.60 £0.50
29	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
30	HA117-7418-03 Available to backorder	Cutoff Baffle	£25.99 £21.66
31	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
32	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£28.45 £23.71
33	HA138-7229 Available to backorder	Spanner Tube	£6.41 £5.34
34	HA104-0892 Available to backorder	Rear Axle Spacer	£5.57 £4.64
35	HA323-23 Available to backorder	Hex Head (Hh) Screw	£3.56 £2.97
36	HA138-7230 Available to backorder	Fender Spacer	£5.29 £4.41
37	HA323-9 Available to backorder	Hex Head (Hh) Screw	£1.60 £1.33
38	HA117-1270 Available to backorder	Deflector	£89.76 £74.80
39	HA138-7231 Available to backorder	Pin	£9.89 £8.24
40	HA138-7232 Available to backorder	Torsion Spring	£3.08 £2.57
41	HA1-803037 Available to backorder	Retaining Nut	£2.32 £1.93
42	HA139-2614 Available to backorder	Cotter Pin	£0.48 £0.40
43	HA140-4282-03 Available to backorder	Bracket Assembly - Deflector [Black	£49.92 £41.60
44	HA115-5048-03 Available to backorder	Deflector Plate	£51.97 £43.31
45	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.91 £0.76
46	HA3256-68 Available to backorder	Flat Washer	£4.66 £3.88
47	HA140-5423-03 Available to backorder	Plate-Guard	£58.24 £48.53
48	HA140-4349-03 Available to backorder	Plate-Guard. Center	£191.52 £159.60
55	HA322-2 Available to backorder	Hex Head (Hh) Screw	£1.18 £0.98
