Toro Proline Mid-Size 122cm - 44424TE (406500000 - 406610857) 48 Inch International Deck

Name: Toro Proline Mid-Size 122cm - 44424TE (406500000 - 406610857) 48 Inch International Deck
SKU: proline_mid_size_122cm_44424te_4654661857_48_inch_international_
Price: 0.38 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size 122cm - 44424TE (406500000 - 406610857) 48 Inch International Deck

Description

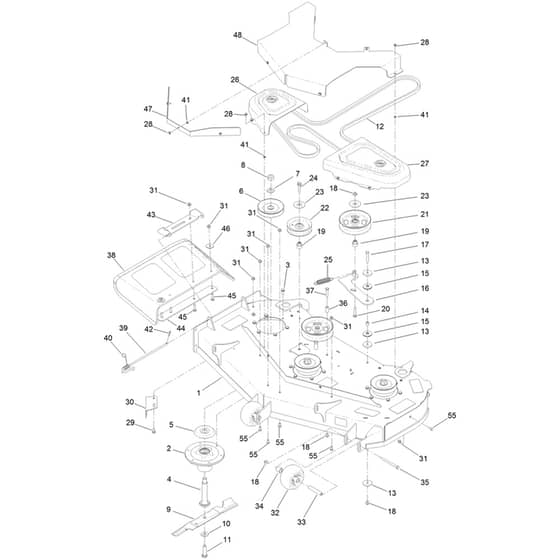

Toro Proline Mid-Size 122cm - 44424TE (406500000 - 406610857) 48 Inch International Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA138-6805 Available to backorder	48 Inch Deck Assembly (Service)	£1,320.00 £1,100.00
2	HA139-2357 Available to backorder	Spindle Assembly	£114.84 £95.70
3	HA32144-41 Available to backorder	Taptite Screw	£5.74 £4.78
4	HA115-2642 Available to backorder	Spindle Shaft	£61.00 £50.83
5	HA138-7221 Available to backorder	Bearing Shield	£5.84 £4.87
6	HA138-7224 Available to backorder	Pulley	£90.92 £75.77
7	HA7-4150 Available to backorder	Washer	£1.92 £1.60
8	HA3219-7 Available to backorder	Hex Nut	£2.52 £2.10
9	HA138-8888-03 Available to backorder	16.5 Inch Hi-Flow Blade	£19.22 £16.02
10	HA125-1736 Available to backorder	Belleville Washer	£4.66 £3.88
11	HA51-4060 Available to backorder	Blade Screw	£8.84 £7.37
12	HA126-0784 Available to backorder	Belt. Deck	£157.32 £131.10
13	HA110-9981 Available to backorder	Plain Washer	£22.52 £18.77
14	HA139-7933 Available to backorder	Idler Bushing	£9.44 £7.87
15	HA139-7932 Available to backorder	Composite Friction Washer	£9.64 £8.03
16	HA139-7915 Available to backorder	Idler Arm Assembly	£51.44 £42.87
17	HA323-11 In stock	Hex Head (Hh) Screw	Was £2.33 £1.94 Special Price £1.54 £1.28
18	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
19	HA138-7227 Available to backorder	Idler Bushing	£3.22 £2.68
20	HA323-16 Available to backorder	Carriage Screw	£3.46 £2.88
21	HA132-9425 Available to backorder	Flat Idler Pulley	£51.44 £42.87
22	HA132-4718 Available to backorder	Flat Idler Pulley	£37.08 £30.90
23	HA126-8043 Available to backorder	Shield-Dust	£4.00 £3.33
24	HA3234-19 Available to backorder	Hex Head Flange (Hhf) Screw	£2.88 £2.40
25	HA1-323071 Available to backorder	Extension Spring	£17.94 £14.95
26	HA133-9283 Available to backorder	Right Hand Belt Cover	£22.72 £18.93
27	HA133-9282 Available to backorder	Left Hand Belt Cover	£26.30 £21.92
28	HA32144-4 In stock	Hex Washer Head (Hwh) Screw	Was £1.68 £1.40 Special Price £0.60 £0.50
29	HA3230-23 Available to backorder	Carriage Screw	£1.06 £0.88
30	HA117-7418-03 Available to backorder	Cutoff Baffle	£25.12 £20.93
31	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.64 £0.53
32	HA1-603299 Available to backorder	Titan Anti-Scalp & Wear Bar Kit	£26.30 £21.92
33	HA138-7229 Available to backorder	Spanner Tube	£6.20 £5.17
34	HA104-0892 Available to backorder	Rear Axle Spacer	£5.38 £4.48
35	HA323-23 Available to backorder	Hex Head (Hh) Screw	£3.44 £2.87
36	HA138-7230 Available to backorder	Fender Spacer	£5.12 £4.27
37	HA323-9 Available to backorder	Hex Head (Hh) Screw	£1.54 £1.28
38	HA117-1270 Available to backorder	Deflector	£89.72 £74.77
39	HA138-7231 Available to backorder	Pin	£9.56 £7.97
40	HA138-7232 Available to backorder	Torsion Spring	£2.98 £2.48
41	HA1-803037 Available to backorder	Retaining Nut	£2.24 £1.87
42	HA139-2614 Available to backorder	Cotter Pin	£0.46 £0.38
43	HA140-4282-03 Available to backorder	Bracket Assembly - Deflector [Black	£48.26 £40.22
44	HA115-5048-03 Available to backorder	Deflector Plate	£50.24 £41.87
45	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£0.88 £0.73
46	HA3256-68 Available to backorder	Flat Washer	£4.50 £3.75
47	HA140-5423-03 Available to backorder	Plate-Guard	£56.30 £46.92
48	HA140-4349-03 Available to backorder	Plate-Guard. Center	£183.84 £153.20
55	HA322-2 Available to backorder	Hex Head (Hh) Screw	£1.14 £0.95
