Toro Proline Mid-Size 122cm - 44424TE (418000000 - 999999999) Transmission

Description

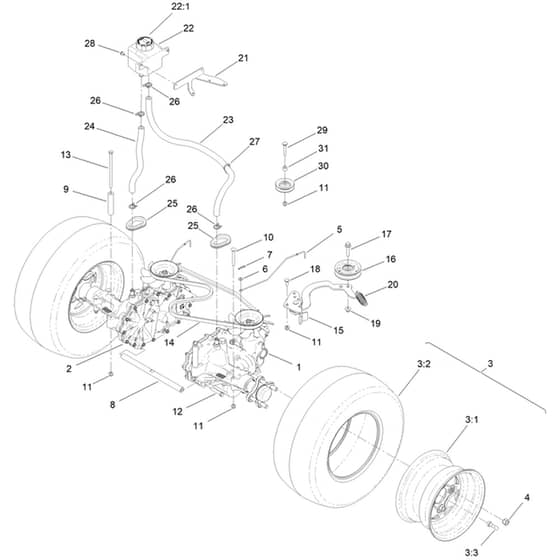

Toro Proline Mid-Size 122cm - 44424TE (418000000 - 999999999) Transmission Parts Diagram

	Part No.	Details
1	HA147-0362 Available to backorder	Zt-2800 Lh Transmission	£1,591.72 £1,326.43
2	HA147-0363 Available to backorder	Zt-2800 Right Hand (Rh) Transmission	£1,591.72 £1,326.43
3	HA139-5580 Available to backorder	Drive Wheel And Tire Assembly	£305.76 £254.80
3	HA139-5581 Available to backorder	[3.1] 10 Inch Walk Behind Drive Rim	£183.36 £152.80
3	HA139-5582 Available to backorder	[3.2] Commercial Walk Behind Mower Tire	£234.24 £195.20
3	HA5108 Available to backorder	[3.3] Valve Stem	£10.80 £9.00
4	HA242-50 Available to backorder	Lug Nut	£2.00 £1.67
5	HA139-5592 Available to backorder	Bypass Rod	£14.83 £12.36
6	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
7	HA1-806003 Available to backorder	Cotter Pin	£1.72 £1.43
9	HA138-5803 Available to backorder	Transmission Spacer	£26.60 £22.17
10	HA3230-9 Available to backorder	Screw-Carr [.312-18X2.750.Gr5.Yz]	£1.16 £0.97
11	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
12	HA94-7972 Available to backorder	Hex Head (Hh) Loctite Screw	£4.20 £3.50
13	HA1-800286 Available to backorder	Hex Head (Hh) Screw	£3.58 £2.98
14	HA112-3799 Available to backorder	Transmission V-Belt	£105.24 £87.70
15	HA139-2899 Available to backorder	Idler Arm Assembly	£93.36 £77.80
16	HA92-7101 Available to backorder	Flat Idler Pulley	£48.25 £40.21
17	HA3234-19 Available to backorder	Hex Head Flange (Hhf) Screw	£2.98 £2.48
18	HA3230-10 Available to backorder	Carriage Bolt	£0.85 £0.71
19	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
20	HA138-6814 Available to backorder	Extension Spring	£9.26 £7.72
21	HA139-7914-03 Available to backorder	Bracket Assembly With Black	£41.59 £34.66
22	HA109-2250 Available to backorder	Tank-Hyd	£75.36 £62.80
22	HA109-3320 Available to backorder	[22.1] Cap-Reservoir. Hyd	£33.41 £27.84
23	HA136-4182 Available to backorder	Hydro Hose	£30.94 £25.78
24	HA115-4969 Available to backorder	Overflow Hose	£12.35 £10.29
25	HA240-12 Available to backorder	Rubber Grommet	£48.95 £40.79
26	HA117-1193 Available to backorder	Hose Clamp	£1.60 £1.33
27	HA32180-030 Available to backorder	Tie Clip	£7.18 £5.98
28	HA137-4795 Available to backorder	Screw-Hwh [Taptite 1.4-20 X .38.Yz]	£0.35 £0.29

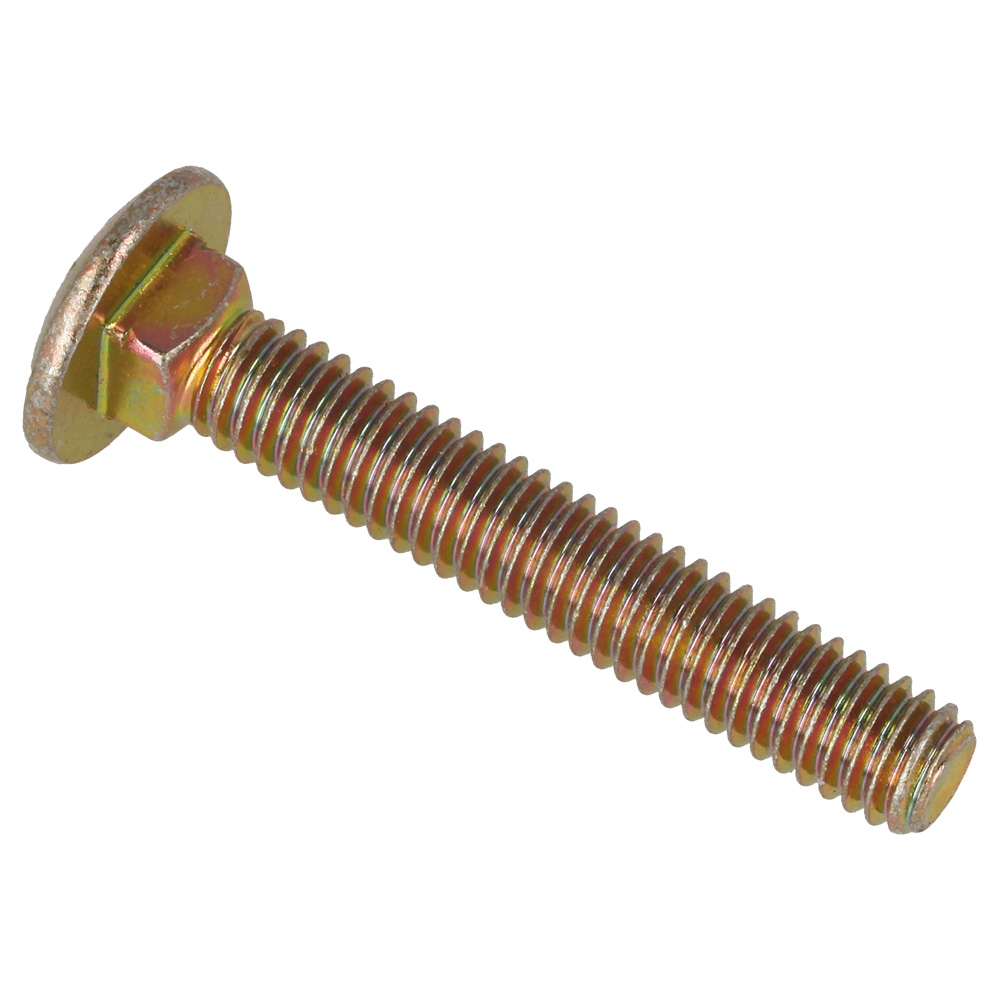

29	HA3230-6 Available to backorder	Carriage Bolt	£1.01 £0.84

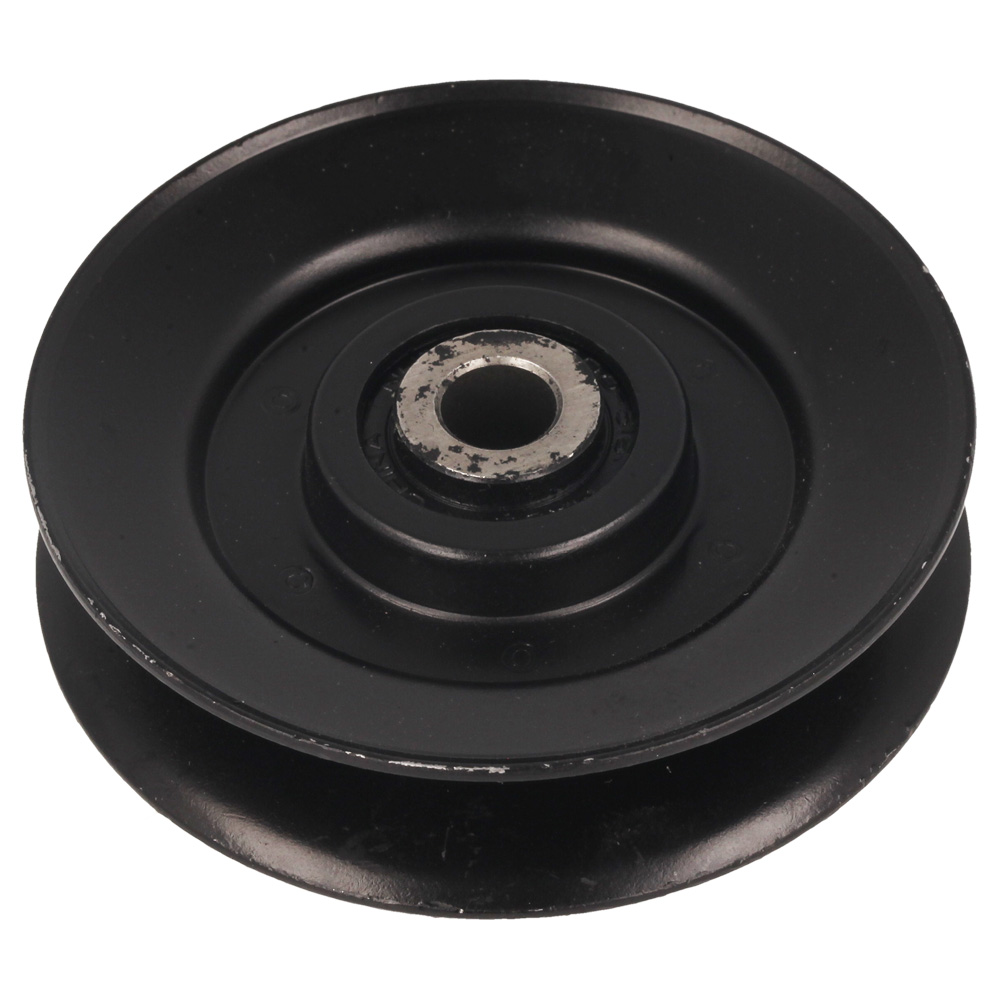

30	HA119-8822 Available to backorder	Idler Pulley	£28.45 £23.71
31	HA98-4695 Available to backorder	Spacer[5.16 X 5.8 X 0.40. Stl. Cz]	£10.82 £9.02
