Toro Proline Mid-Size 122cm - 44424TE (418000000 - 999999999) Fuel System

Description

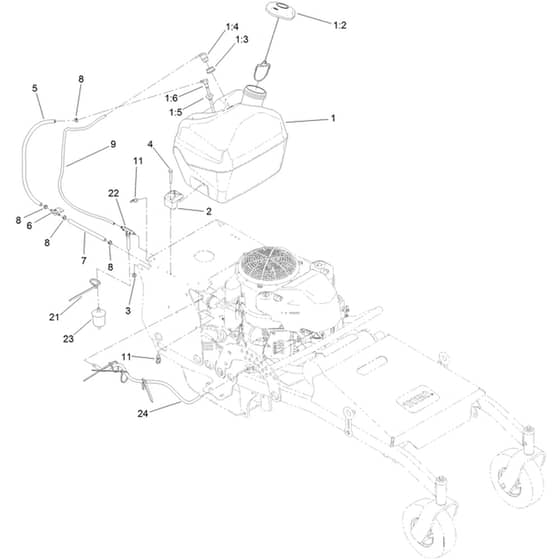

Toro Proline Mid-Size 122cm - 44424TE (418000000 - 999999999) Fuel System Parts Diagram

	Part No.	Details
1	HA46-6560 In stock	[1.5] 0.62 Inch X 0.56 Inch X 0.362 Inch Flanged Bushing	£5.24 £4.37
1	HA114-0284 Available to backorder	[1.3] Grommet	£4.14 £3.45
1	HA137-4119 Available to backorder	[1.2] Ratcheting Fuel Cap	£32.17 £26.81
1	HA116-2459 Available to backorder	[1.6] Fitting-Fuel (W.Line And Screen)	£48.25 £40.21
1	HA119-3547 Available to backorder	[1.4] Valve-Vent. Fuel	£26.09 £21.74
1	HA140-4343 Available to backorder	5 Gallon Fuel Tank Assembly	£378.72 £315.60
2	HA107-4543 Available to backorder	Clamp	£23.06 £19.22
3	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
4	HA322-10 Available to backorder	Hex Head (Hh) Screw	£1.20 £1.00
5	HA114-4428 Available to backorder	Fuel Hose	£12.35 £10.29
6	HA1-603770 Available to backorder	Fuel Valve	£9.64 £8.03
7	HA110-1876 Available to backorder	Fuel Hose	£14.83 £12.36
8	HA2412-98 Available to backorder	Hose Clamp	£1.72 £1.43
9	HA138-8837 Available to backorder	Emissions Hose	£13.61 £11.34
11	HA32180-030 Available to backorder	Tie Clip	£7.18 £5.98
22	HA116-5464 Available to backorder	Tee And Check	£54.43 £45.36
23	HA120-2235 Available to backorder	Fuel Filter	£9.77 £8.14
24	HA119-6074 Available to backorder	Fuel Hose	£22.69 £18.91
