Toro Proline Mid-Size 122cm - 44424TE (418000000 - 999999999) Frame

Name: Toro Proline Mid-Size 122cm - 44424TE (418000000 - 999999999) Frame
SKU: proline_mid_size_122cm_44424te_418999999999_frame-group
Price: 0.55 GBP
Availability: InStock

Part No. proline_mid_size_122cm_44424te_418999999999_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size 122cm - 44424TE (418000000 - 999999999) Frame

Description

Toro Proline Mid-Size 122cm - 44424TE (418000000 - 999999999) Frame Parts Diagram

	Part No.	Details
1	HA140-1865 Available to backorder	Frame Assembly	£1,543.06 £1,285.88
1	HA138-8820 Available to backorder	[1.2] Decal - Bypass	£6.19 £5.16
1	HA126-1400 Available to backorder	[1.3] Decal-Warning. Sulky	£5.29 £4.41
1	HA98-1977 Available to backorder	[1.4] Warning Decal	£13.61 £11.34

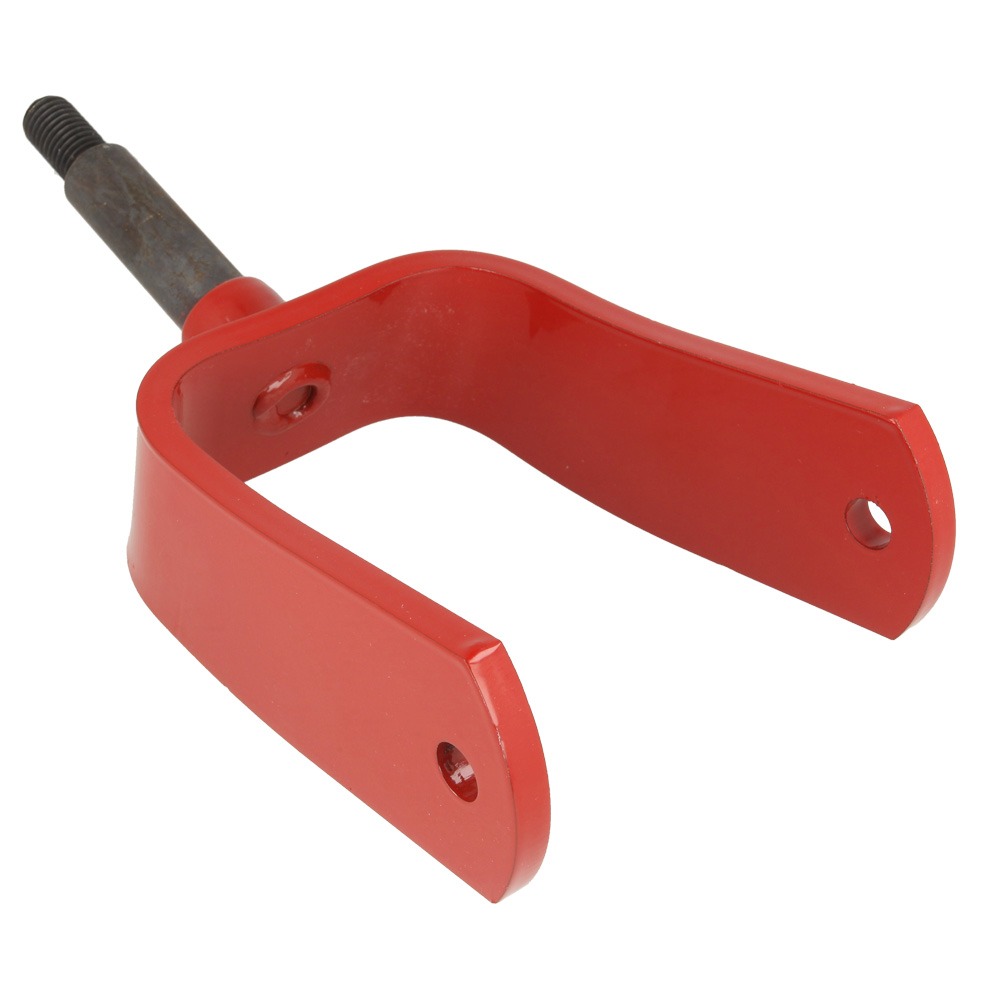

2	HA147-6343-01 Available to backorder	Grandstand Caster Fork	£256.32 £213.60
3	HA140-4286 Available to backorder	Caster Wheel And Axle Assembly	£199.44 £166.20
3	HA1-513810 Available to backorder	[3.1] Bushing	£6.79 £5.66
3	HA1-513809 Available to backorder	[3.2] Bearing	£42.06 £35.05
4	HA1-513547 Available to backorder	Spacer	£14.83 £12.36

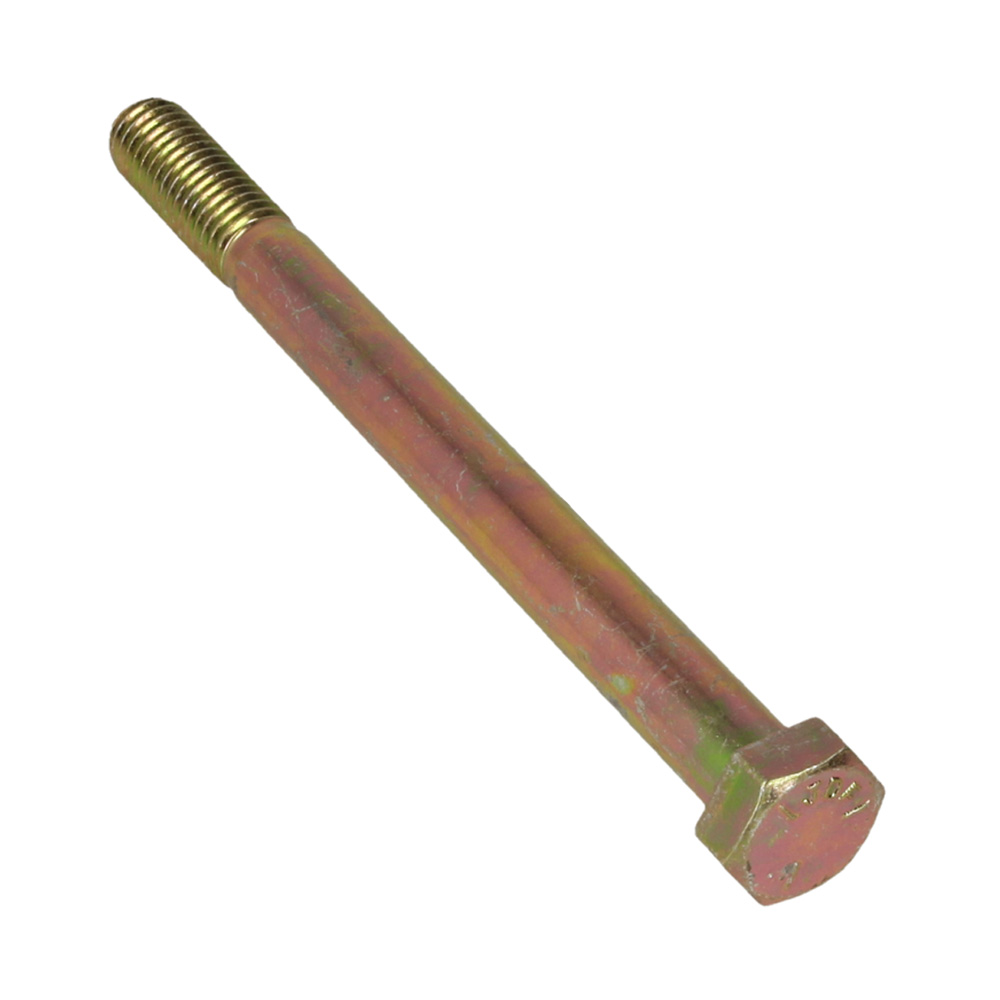

5	HA325-20 In stock	Hex Head (Hh) Screw	£8.06 £6.72
6	HA3296-45 Available to backorder	Hex Nut	£4.69 £3.91

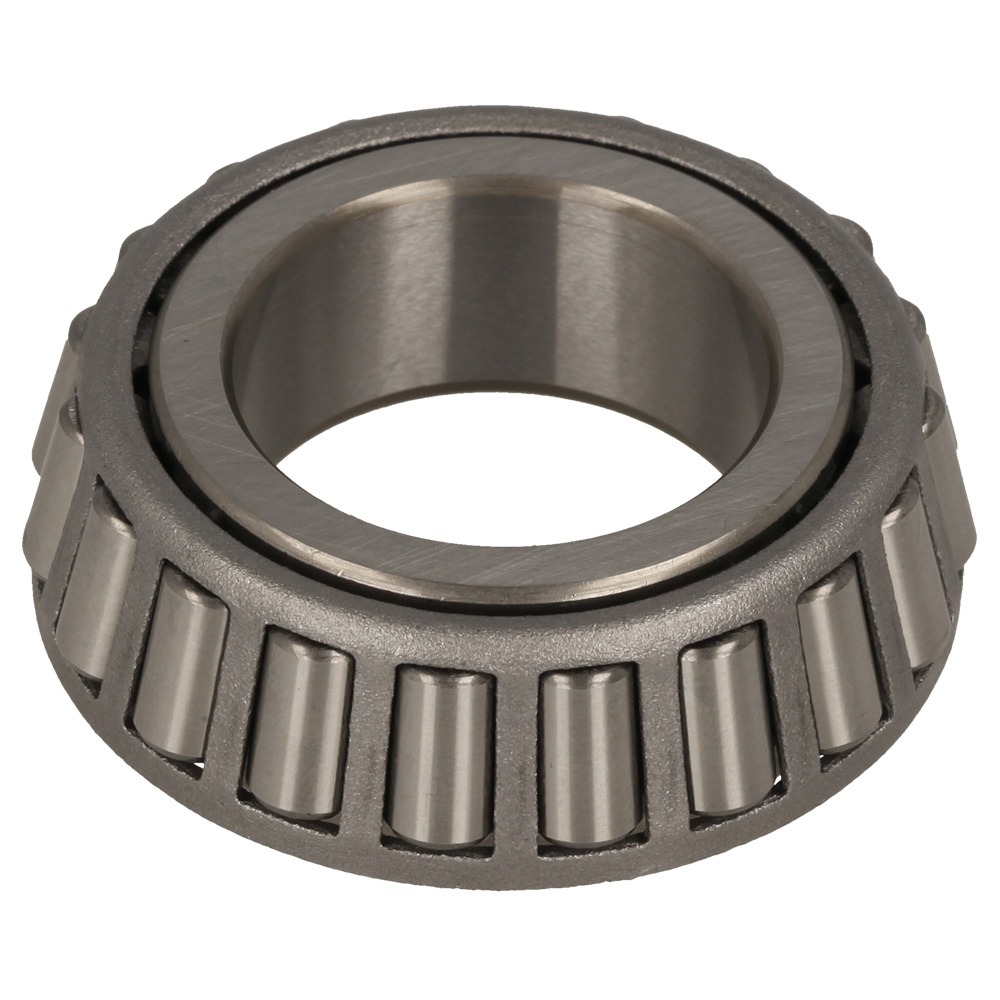

7	HA1-543509 Available to backorder	Bearing-Roller. Tapered	£17.32 £14.43
8	HA1-543511 Available to backorder	Seal-Grease	£13.61 £11.34

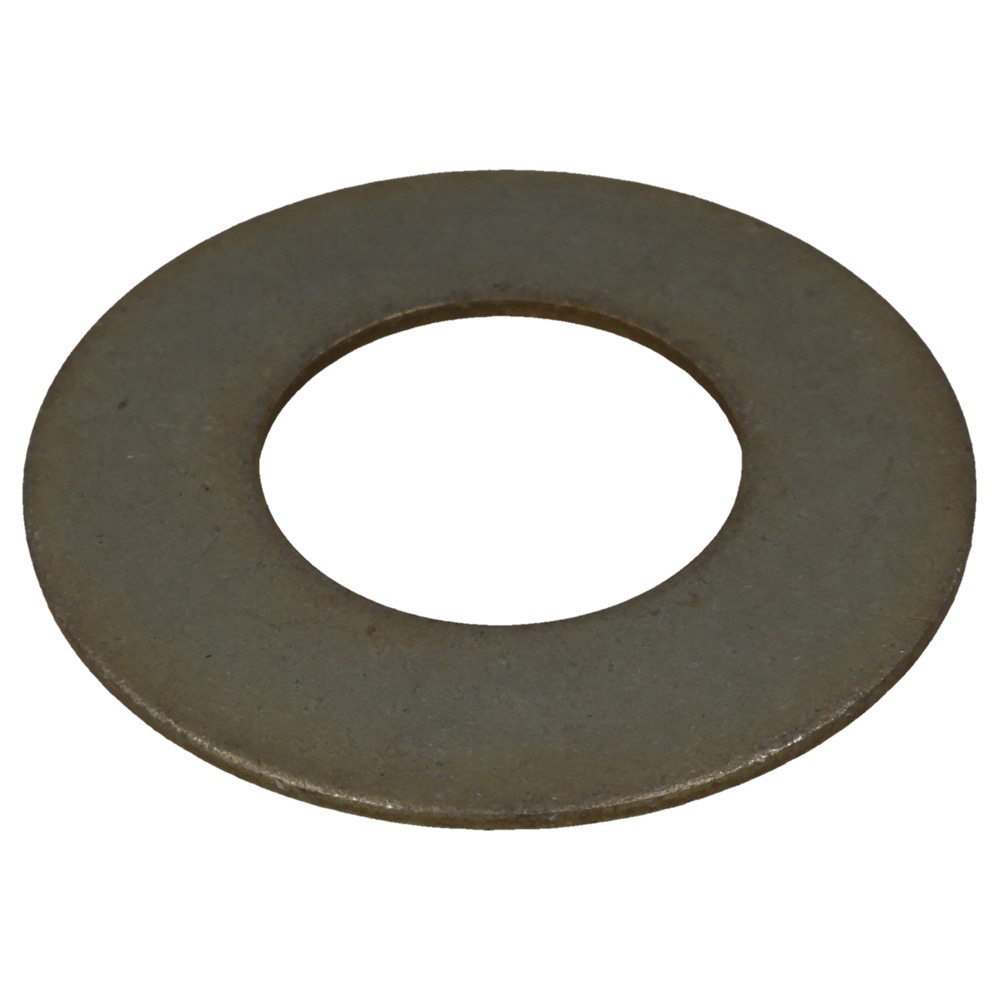

9	HA1-633508 In stock	Belleville Washer	£5.66 £4.72
10	HA3296-51 Available to backorder	Ni Lock Nut	£5.52 £4.60
11	HA103-4882 Available to backorder	Grease Cap	£9.02 £7.52
12	HA138-5881-03 Available to backorder	Muffler Guard Tube	£175.32 £146.10
13	HA3274-18 Available to backorder	Hex Socket Head (Hsh) Screw	£10.99 £9.16
14	HA139-2938-03 Available to backorder	Transmission Guard	£123.84 £103.20
15	HA3230-10 Available to backorder	Carriage Bolt	£0.85 £0.71
16	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
17	HA1-811010 Available to backorder	Plug	£6.04 £5.03
18	HA133-7088 Available to backorder	Seal Guard	£2.96 £2.47
19	HA117-9971 Available to backorder	Carriage Bolt	£3.94 £3.28
20	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
21	HA114-2754 Available to backorder	Spacer	£13.61 £11.34
22	HA1-543286 Available to backorder	Grommet	£14.83 £12.36
