Toro Proline Mid-Size 122cm - 44424TE (418000000 - 999999999) Electrical Harness and Battery

Description

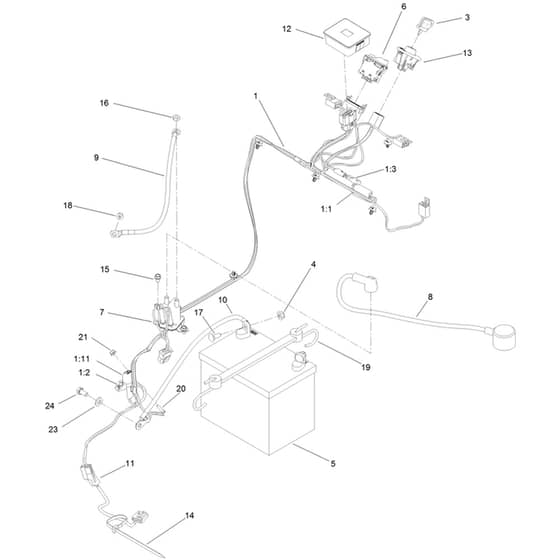

Toro Proline Mid-Size 122cm - 44424TE (418000000 - 999999999) Electrical Harness and Battery Parts Diagram

	Part No.	Details
1	HA138-8840 Available to backorder	Wire Harness - Wasp - Fs	£311.28 £259.40
1	HA109355 Available to backorder	[1.1] Blade Fuse - 15 Amp	£5.32 £4.43
1	HA109102 Available to backorder	[1.2] Blade Fuse - 25 Amp	£8.14 £6.78
1	HA116-0053 Available to backorder	[1.3] Plug Cap	£47.00 £39.17
1	HA100-4918 Available to backorder	[1.11] 6 Amp Diode	£34.78 £28.98
3	HA63-8360 Available to backorder	Ignition Key	£6.56 £5.47
4	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
5	HA105-1692 Available to backorder	230 Amp Battery	£208.92 £174.10
6	HA139-6367 Available to backorder	Rocker Switch (On-Off-On)	£40.84 £34.03
7	HA117-1197 Available to backorder	Solenoid	£53.21 £44.34
8	HA115-3864 Available to backorder	Battery Cable	£35.88 £29.90
9	HA139-6354 Available to backorder	6 Gauge 12 Inch Positive Battery Cable Assembly	£9.89 £8.24
10	HA139-6358 Available to backorder	6 Gauge 15 Inch Negative Battery Cable Assembly	£12.35 £10.29
11	HA126-0624 Available to backorder	Harness-Clutch Pigtail	£21.62 £18.02
12	HA139-5561 Available to backorder	Hour Meter Module	£136.80 £114.00
13	HA137-4100 Available to backorder	Z-Master Ignition Switch	£32.17 £26.81
14	HA3290-378 Available to backorder	Cable Tie	£0.97 £0.81
15	HA137-4795 Available to backorder	Screw-Hwh [Taptite 1.4-20 X .38.Yz]	£0.35 £0.29
16	HA3220-2 Available to backorder	Jam Nut	£0.85 £0.71
17	HA3230-1 Available to backorder	Carriage Bolt	£1.84 £1.53
18	HA32128-32 Available to backorder	Hex Head Flange (Hhf) Nut	£3.34 £2.78
19	HA104-2466 Available to backorder	14 Inch Battery Holddown	£27.20 £22.67
20	HA3290-134 Available to backorder	Screw	£0.48 £0.40
21	HA120-4578 Available to backorder	Hex Flange (Hf) Nut	£0.71 £0.59
23	HA33094-00 Available to backorder	Plain Washer	£0.43 £0.36
24	HA33114-016 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
