Toro Proline Mid-Size 122cm - 44424TE (413000000 - 417999999) RH Transmission No. 147-0363

Description

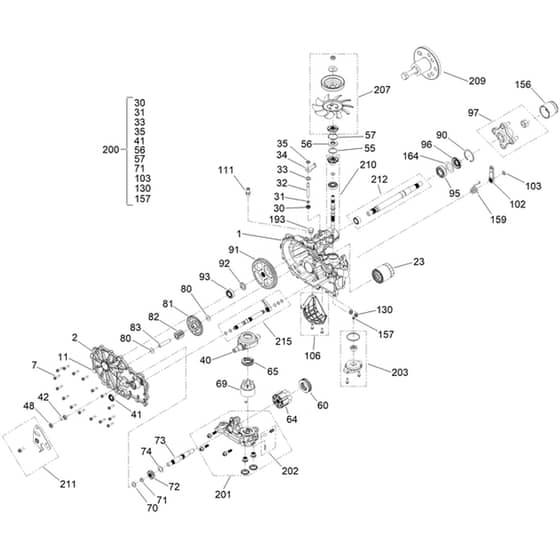

Toro Proline Mid-Size 122cm - 44424TE (413000000 - 417999999) RH Transmission No. 147-0363 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA140-9495 Available to backorder	Left Hand Main Housing Charge Kit	£436.80 £364.00
2	HA140-9496 Available to backorder	Left Hand Control Side Cover Kit	£168.36 £140.30
7	HA117-5359 Available to backorder	Hex Head Flange (Hhf) Screw	£3.46 £2.88
11	HA353-508 Available to backorder	Plug-Straight	£8.78 £7.32
23	HA109-3321 Available to backorder	Oil Filter	£31.10 £25.92
30	HA139-7497 Available to backorder	Lip Seal	£11.40 £9.50
31	HA106-8677 Available to backorder	External Retaining Ring	£9.92 £8.27
32	HA114-1685 Available to backorder	Bypass Rod	£40.66 £33.88
33	HA106-8679 Available to backorder	Internal Retaining Ring	£10.76 £8.97
34	HA107-2489 Available to backorder	Bypass Arm	£92.12 £76.77
35	HA106-8681 Available to backorder	External Retaining Ring	£9.80 £8.17
40	HA104-5304 Available to backorder	Trunnion Swashplate	£203.04 £169.20
41	HA104-5313 Available to backorder	Lip Seal	£29.90 £24.92
42	HA104-2116 Available to backorder	Stud	£43.06 £35.88
48	HA139-4073 Available to backorder	Spacer	£16.06 £13.38
55	HA104-5308 Available to backorder	Spacer	£9.56 £7.97
56	HA104-5310 Available to backorder	Lip Seal	£44.26 £36.88
57	HA104-5309 Available to backorder	Retaining Ring	£14.34 £11.95
60	HA112-4154 Available to backorder	Thrust Bearing	£159.12 £132.60
64	HA139-4074 Available to backorder	Cylinder Block Assembly Kit	£340.68 £283.90
65	HA94-6922 Available to backorder	Thrust Bearing	£71.76 £59.80
69	HA110-8561 Available to backorder	Pump Block Assembly	£414.00 £345.00
70	HA104-5339 Available to backorder	Flat Washer	£10.12 £8.43
71	HA104-5340 Available to backorder	Retaining Ring	£8.60 £7.17
72	HA121-5749 Available to backorder	16 Tooth Gear	£15.54 £12.95
73	HA114-1691 Available to backorder	Motor Shaft	£257.88 £214.90
74	HA104-5360 Available to backorder	Washer	£11.88 £9.90
80	HA94-1933 Available to backorder	Obs Washer	£8.82 £7.35
81	HA125-0000 Available to backorder	43 Tooth Gear	£69.38 £57.82
82	HA114-1693 Available to backorder	11 Tooth Gear	£43.44 £36.20
83	HA104-5329 Available to backorder	Jackshaft Pin	£120.60 £100.50
90	HA104-2169 Available to backorder	Retaining Ring	£20.32 £16.93
91	HA114-1694 Available to backorder	54 Tooth Gear	£202.08 £168.40
92	HA120-7975 Available to backorder	Spacer	£6.44 £5.37
93	HA135-1361 Available to backorder	Bearing-Ball	£61.12 £50.93
95	HA130-8477 Available to backorder	Ball Bearing	£40.20 £33.50
96	HA104-2144 Available to backorder	Seal	£61.00 £50.83
97	HA109-5939 Available to backorder	Hub Kit	£156.00 £130.00
102	HA125-0021 Available to backorder	Brake Handle	£22.52 £18.77
103	HA131-0906 Available to backorder	Retaining Ring	£6.10 £5.08
106	HA139-7498 Available to backorder	Filter Guard Kit	£56.30 £46.92
111	HA109-3278 Available to backorder	Adapter-Straight	£188.40 £157.00
130	HA114-8455 Available to backorder	Tube-Charge	£15.54 £12.95
156	HA115-5057 Available to backorder	Hydro Axle Nut Cover	£20.32 £16.93
157	HA126-1930 Available to backorder	Gerotor Seal Kit	£41.82 £34.85
159	HA139-4099 Available to backorder	Torsion Spring	£35.38 £29.48
164	HA121-5745 Available to backorder	Spacer	£11.94 £9.95
193	HA140-8343 Available to backorder	Plug	£12.86 £10.72
200	HA140-8351 Available to backorder	Seal Kit [Zt2800]	£148.32 £123.60
201	HA114-8476 Available to backorder	Left Hand (Lh) Center Section Kit	£532.80 £444.00
202	HA114-8464 Available to backorder	Charge Relief Kit	£35.38 £29.48
203	HA114-8465 Available to backorder	Charge Kit	£168.36 £140.30
207	HA135-7348 Available to backorder	Fan And Pulley Kit	£148.32 £123.60
209	HA130-8482 Available to backorder	Hub Puller Kit	£451.20 £376.00
210	HA139-7502 Available to backorder	Input Shaft Kit	£193.08 £160.90
211	HA139-7866 Available to backorder	Control Arm Kit	£57.90 £48.25
212	HA114-8470 Available to backorder	Axle Shaft Kit	£321.60 £268.00
215	HA140-9498 Available to backorder	Right Hand (Rot B) . Left Hand (Rot A) Outboard Kit	£174.48 £145.40
