Toro Proline Heavy-Duty BBC 53cm - 22285 (400000000 - 415399999) Transmission No. 131-5350

Name: Toro Proline Heavy-Duty BBC 53cm - 22285 (400000000 - 415399999) Transmission No. 131-5350
SKU: proline_heavy_duty_bbc_53cm_22285_4415399999_transmission_no_131
Price: 1.95 GBP
Availability: InStock

Part No. proline_heavy_duty_bbc_53cm_22285_4415399999_transmission_no_131

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Heavy-Duty BBC 53cm - 22285 (400000000 - 415399999) Transmission No. 131-5350

Description

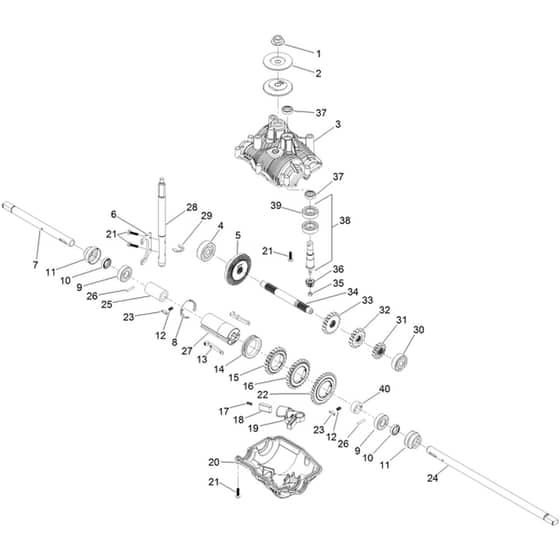

Toro Proline Heavy-Duty BBC 53cm - 22285 (400000000 - 415399999) Transmission No. 131-5350 Parts Diagram

	Part No.	Details
1	HA130-2301 Available to backorder	Flange Nut	£2.83 £2.36
2	HA130-2326 Available to backorder	Flange Pulley	£16.08 £13.40
3	HA130-2336 Available to backorder	Upper Transmission Case	£58.16 £48.47
4	HA130-2318 Available to backorder	Ball Bearing	£24.74 £20.62
5	HA130-2311 Available to backorder	53 Tooth Bevel Gear	£61.86 £51.55
6	HA130-2327 Available to backorder	Shift Fork	£13.61 £11.34
7	HA133-2611 Available to backorder	Short Output Shaft	£72.96 £60.80
8	HA130-2322 Available to backorder	Retaining Spring	£9.89 £8.24
10	HA130-2325 Available to backorder	Seal	£6.79 £5.66
11	HA130-2333 Available to backorder	Output Shaft Bushing	£35.88 £29.90
12	HA133-2615 Available to backorder	Spring	£2.83 £2.36
13	HA130-2328 Available to backorder	Shift Key	£28.45 £23.71
14	HA130-2329 Available to backorder	Shift Ring	£42.06 £35.05
15	HA130-2315 Available to backorder	22 Tooth Gear Output	£28.45 £23.71
16	HA130-2316 Available to backorder	25 Tooth Output Gear	£29.69 £24.74
17	HA130-2321 Available to backorder	Shifter Indexing Spring	£2.34 £1.95
18	HA130-2332 Available to backorder	Shifter Indexing Pin	£4.32 £3.60
19	HA130-2331 Available to backorder	Shifter Indexing Lever	£12.35 £10.29
20	HA130-2337 Available to backorder	Lower Transmission Case	£69.36 £57.80
21	HA130-2302 Available to backorder	Screw	£2.96 £2.47
22	HA130-2317 Available to backorder	32 Tooth Output Gear	£34.63 £28.86
23	HA133-2614 Available to backorder	Key	£14.83 £12.36
24	HA133-2612 Available to backorder	Long Output Shaft	£96.96 £80.80
25	HA133-2617 Available to backorder	Long Spacer	£17.32 £14.43
26	HA133-2616 Available to backorder	Pin	£12.35 £10.29
27	HA133-2613 Available to backorder	Output Gear Hub	£98.16 £81.80
28	HA130-2306 Available to backorder	Shift Shaft	£75.36 £62.80
30	HA130-2319 Available to backorder	Ball Bearing	£14.83 £12.36
31	HA130-2314 Available to backorder	14 Tooth Intermediate Gear	£21.02 £17.52
32	HA130-2313 Available to backorder	15 Tooth Intermediate Gear	£23.51 £19.59
33	HA130-2312 Available to backorder	17 Tooth Intermediate Gear	£25.99 £21.66
34	HA130-2307 Available to backorder	Intermediate Shaft	£71.76 £59.80
35	HA130-2303 Available to backorder	Input Shaft Nut	£3.31 £2.76
36	HA130-2310 Available to backorder	12 Tooth Bevel Gear	£22.26 £18.55
37	HA130-2324 Available to backorder	Seal	£11.14 £9.28
38	HA130-2300 Available to backorder	Input Shaft Kit	£112.68 £93.90
39	HA130-9708 Available to backorder	Ball Bearing (Ref 39 &9)	£14.83 £12.36
40	HA133-2618 Available to backorder	Short Spacer	£13.61 £11.34
