Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Handle

Name: Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Handle
SKU: proline_heavy_duty_bbc_53cm_22285_417417499999_handle-group
Price: 0.48 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Handle

Description

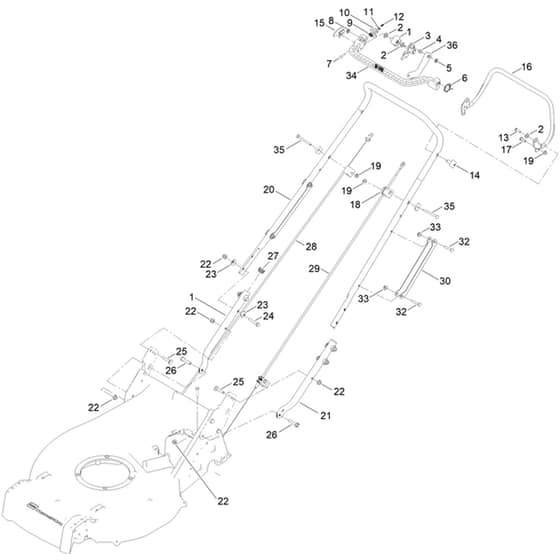

Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Handle Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA111-8990 Available to backorder	Clamp-Bar	£0.64 £0.53
2	HA09688 Available to backorder	Washer-Nylon	£0.70 £0.58
3	HA134-2660 Available to backorder	Anchor Plate Welded	£13.74 £11.45
4	HA134-1761 In stock	Bush. Igus (8 X 9 X 8)	£1.02 £0.85
5	HA0201086 In stock	Washer-Starlock	£1.66 £1.38
6	HA134-2284 In stock	Lever-Bail Arm. Spring	£4.50 £3.75
7	HA111-8908 Available to backorder	Latch-Pin	£1.84 £1.53
8	HA134-3208 In stock	Starlock-Domed	£0.65 £0.54
9	HA111-8906 Available to backorder	Lever-Bail. Spring	£0.74 £0.62
10	HA111-8903 Available to backorder	Lever-Catch	£2.26 £1.88
11	HA111-0718 In stock	Fastener-Starlock. Push-On	£1.50 £1.25
12	HA134-2027 In stock	Clip-Tree	£0.58 £0.48
13	HA09687 In stock	Screw	£1.68 £1.40
14	HA340182 In stock	Pin-Pivot	£1.66 £1.38
15	HA145-4027 Available to backorder	Blade Brake Cable (Bbc) Latch Button	£1.70 £1.42
16	HA111-9381-03 In stock	Lever-Clutch. Gearbox	£16.68 £13.90
17	HA42-3560 Available to backorder	Shoulder Bolt	£7.60 £6.33
18	HA133-8199 Available to backorder	Cable Anchor	£6.56 £5.47
19	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
20	HA145-4022-03 Available to backorder	Upper Handle	£128.00 £106.67
21	HA134-5087-03 Available to backorder	Lower Handle	£49.86 £41.55
22	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
23	HA137-3009 Available to backorder	Cup Washer	£0.94 £0.78
24	HA322-39 Available to backorder	Screw-Hh[.312-18X1.750.Gr8.Bo]	£1.73 £1.44
25	HA3230-4 Available to backorder	Carriage Bolt	£0.86 £0.72
26	HA115-1794 Available to backorder	Screw-Hhf[5.16-18 X 1.5.Gr 5. Yz]	£2.70 £2.25
27	HA144-6379 Available to backorder	1 Inch Round Tube Plug	£4.66 £3.88
28	HA145-5850 Available to backorder	Blade Brake Cable (Bbc) Clutch	£40.66 £33.88
29	HA161-8211 Available to backorder	Cable-Traction	£57.42 £47.85
30	HA134-5187-03 Available to backorder	Handle Cable Guard	£19.12 £15.93
32	HA108-0988 Available to backorder	Carriage Screw	£1.13 £0.94
33	HA114-3778 Available to backorder	Lock Nut	£1.54 £1.28
34	HA134-2608 In stock	Arm-Bail	£18.32 £15.27
35	HA144-0221 Available to backorder	Carriage Screw	£1.54 £1.28
36	HA134-2662 In stock	Bbc Linkage Assembly	£8.44 £7.03
