Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Front Wheel and Height-of-Cut

Name: Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Front Wheel and Height-of-Cut
SKU: proline_heavy_duty_bbc_53cm_22285_417417499999_front_wheelheight
Price: 0.42 GBP
Availability: InStock

Part No. proline_heavy_duty_bbc_53cm_22285_417417499999_front_wheelheight

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Front Wheel and Height-of-Cut

Description

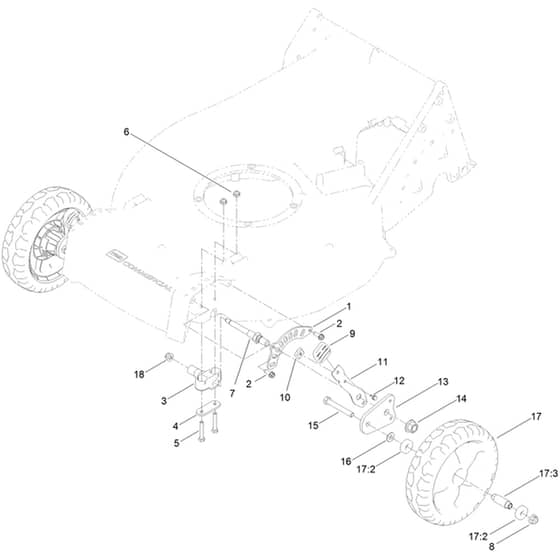

Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Front Wheel and Height-of-Cut Parts Diagram

	Part No.	Details
1	HA121-1439 Available to backorder	Front Height of Cut (HOC) Plate	£6.19 £5.16
2	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.56 £2.13
3	HA136-5871 Available to backorder	Front Axle Bushing	£6.66 £5.55
4	HA130-6434 Available to backorder	Axle Bushing Retainer	£3.34 £2.78
5	HA321-37 Available to backorder	Hex Head (Hh) Screw	£13.61 £11.34
6	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
7	HA133-2644 Available to backorder	Front Axle Height Of Cut (Hoc)	£12.35 £10.29
8	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
9	HA125-1093 Available to backorder	Height Of Cut (Hoc) Lever Knob	£5.44 £4.53
10	HA131-5377 In stock	Spring Arm Key	£1.91 £1.59
11	HA121-1431-03 Available to backorder	Spring Arm	£7.78 £6.48
12	HA104-2065 In stock	Hex Washer Head (Hwh) Screw	£0.50 £0.42
13	HA130-6420 In stock	Front Pivot Arm	Was £14.88 £12.40 Special Price £9.60 £8.00
14	HA99-5107 Available to backorder	Lock Nut	£3.04 £2.53
15	HA323-13 In stock	Hex Head (Hh) Screw	£2.06 £1.72
16	HA74-1671 Available to backorder	Wheel Cover Spacer	£1.84 £1.53
17	HA133-2639 Available to backorder	9 Inch Wheel Assembly With Bearings	£61.08 £50.90
17	HA125-1077 Available to backorder	[17.3] Spacer	£7.54 £6.28
17	HA133-2603 Available to backorder	[17.2] Ball Bearing	Was £30.94 £25.78 Special Price £11.99 £9.99
18	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
