Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Frame

Name: Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Frame
SKU: proline_heavy_duty_bbc_53cm_22285_417417499999_frame-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Frame

Description

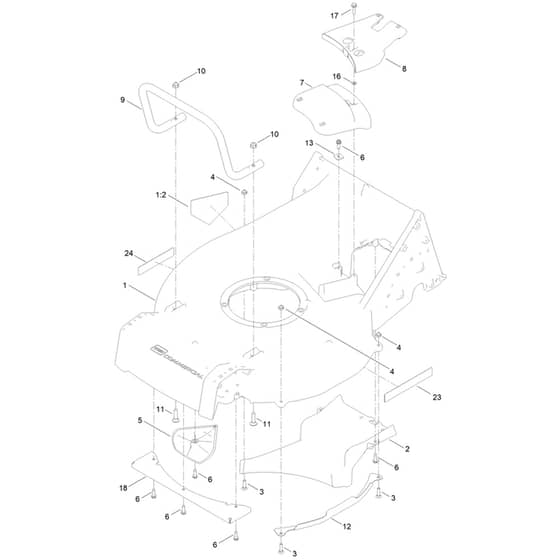

Toro Proline Heavy-Duty BBC 53cm - 22285 (417000000 - 417499999) Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA112-8760 Available to backorder	[1.2] Danger Decal	£13.16 £10.97
1	HA136-5897 Available to backorder	Housing Assembly	£342.60 £285.50
2	HA125-1002-01 Available to backorder	Chute Floor	£67.00 £55.83
3	HA3229-2 Available to backorder	Carriage Screw	£3.46 £2.88
4	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
5	HA125-5041 Available to backorder	Kicker	£9.08 £7.57
6	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.38 £1.98
7	HA125-5038 Available to backorder	Rear Belt Cover For Lawn Mower	£13.16 £10.97
8	HA125-5039 Available to backorder	Rear Belt Cover For Walk Power Mower	£15.54 £12.95
9	HA140-3880-03 Available to backorder	Guard-Engine	£44.26 £36.88
10	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
11	HA3230-3 Available to backorder	Screw-Carr [.312-18X1.250.Gr5.Yz]	£1.01 £0.84
12	HA125-1047-03 Available to backorder	Guard Assembly - Deck [Black	£13.16 £10.97
13	HA125-8387 Available to backorder	Cable Clamp	£2.50 £2.08
16	HA32115-15 Available to backorder	Push Nut	£1.18 £0.98
17	HA32144-86 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.54 £1.28
18	HA125-8435-03 Available to backorder	Guard Assembly - Front [Black	£31.34 £26.12
23	HA119-2368 Available to backorder	Recycler Decal	£6.70 £5.58
24	HA125-8420 Available to backorder	Decal	£4.84 £4.03
