Toro Proline Heavy-Duty BBC 53cm - 22285 (415400000 - 416999999) Transmission and Rear Wheel

Description

Toro Proline Heavy-Duty BBC 53cm - 22285 (415400000 - 416999999) Transmission and Rear Wheel Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	HA125-1077 Available to backorder	Spacer	£7.28 £6.07
1	HA131-5350 Available to backorder	Transmission	£404.40 £337.00
2	HA125-5090-03 Available to backorder	Belt Guide	£38.26 £31.88
3	HA125-5040 Available to backorder	Shift Lever	£7.28 £6.07

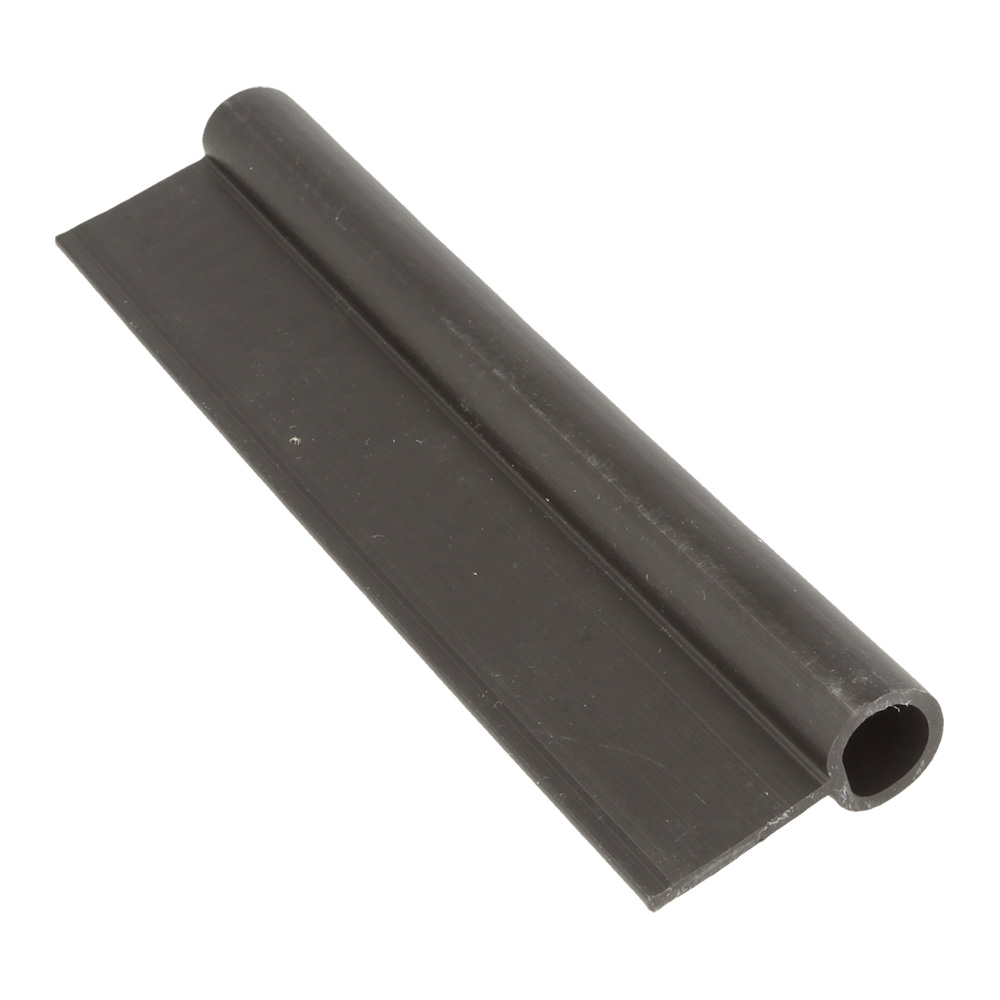

4	HA130-9681 Available to backorder	Transmission Shaft Cover	£5.02 £4.18
5	HA125-1011 In stock	Walk Push Mower Transmission-Belt	£15.54 £12.95

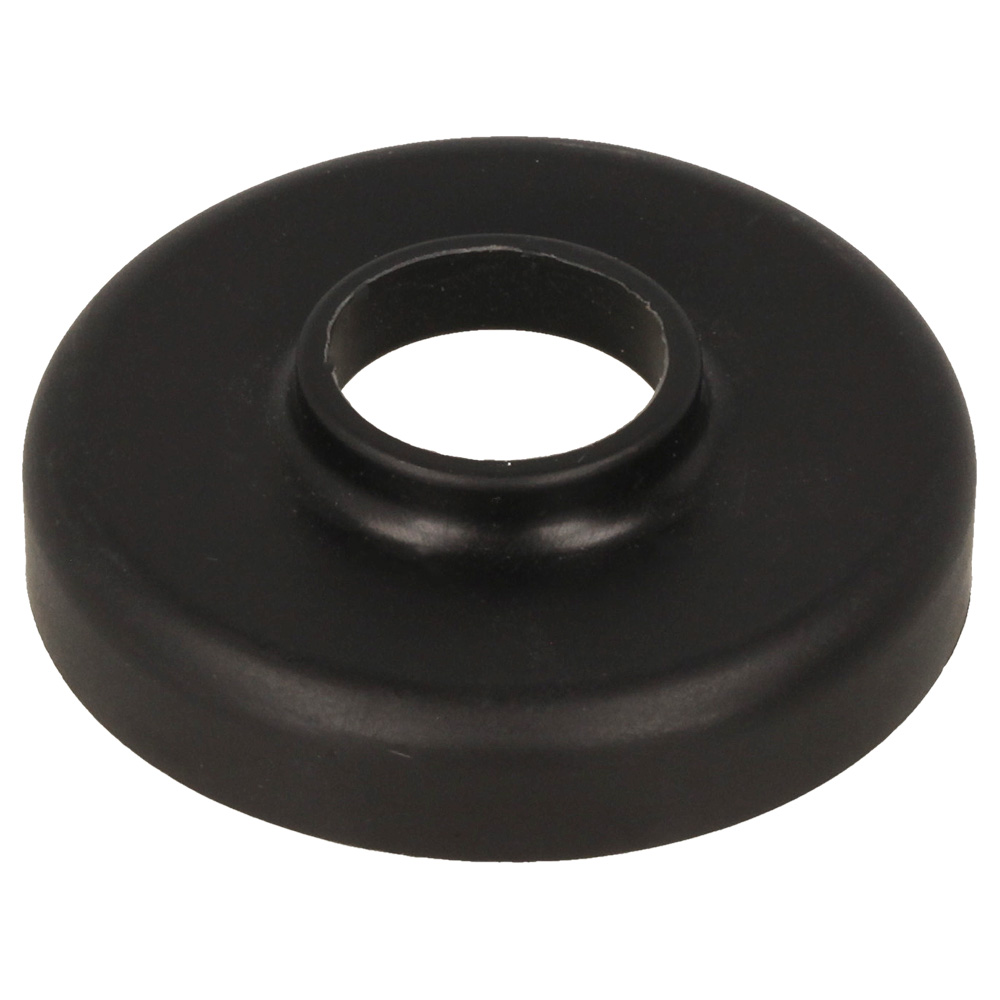

6	HA127-6848 Available to backorder	Bearing Cover	£3.70 £3.08

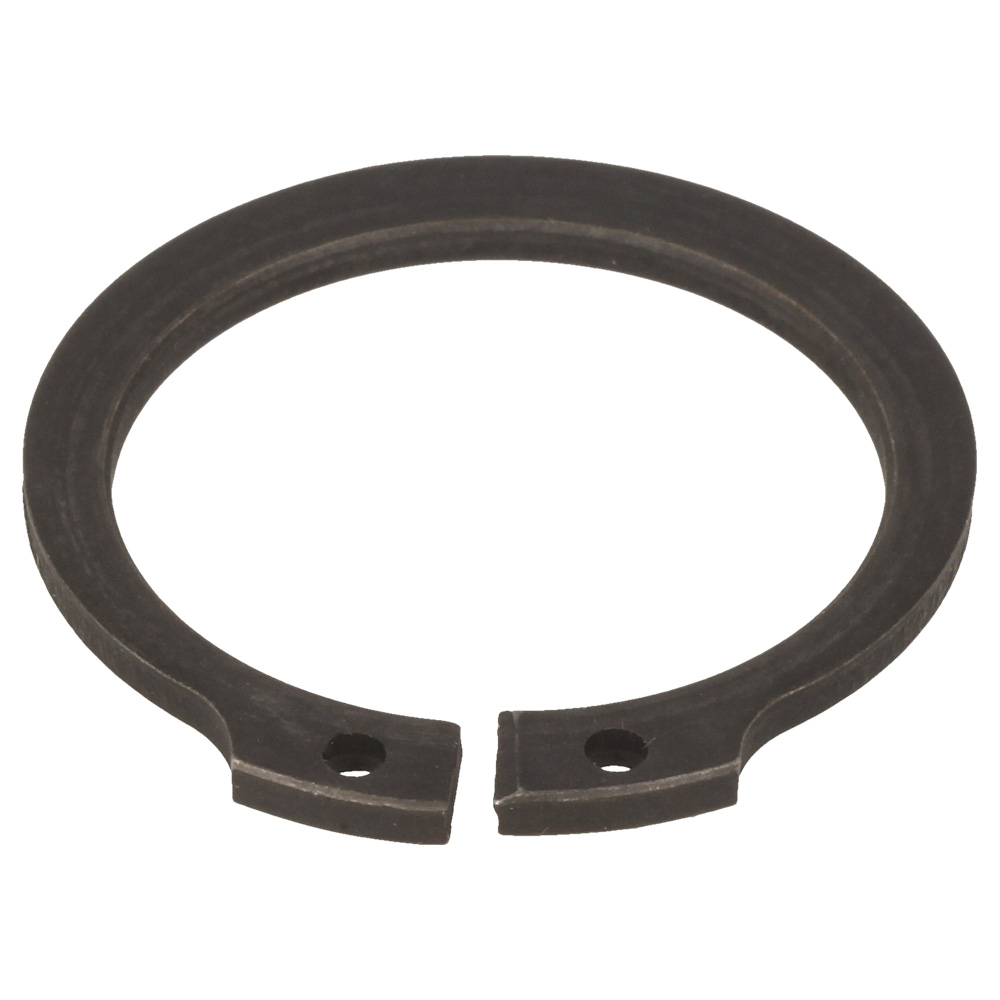

7	HA32151-10 Available to backorder	Ring-Retaining [Ext 1-3.8"]	£1.54 £1.28
8	HA98-1452 Available to backorder	Washer-Thrust	£1.78 £1.48
9	HA130-6422 Available to backorder	Rear Height Of Cut (Hoc) Plate	£16.74 £13.95
10	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.38 £1.98
11	HA323-13 In stock	Hex Head (Hh) Screw	£2.00 £1.67
12	HA133-2641 Available to backorder	Rear Pivot Arm	£13.16 £10.97
13	HA131-5377 In stock	Spring Arm Key	£1.78 £1.48
14	HA125-1093 Available to backorder	Height Of Cut (Hoc) Lever Knob	£5.26 £4.38
15	HA104-2065 In stock	Hex Washer Head (Hwh) Screw	£0.46 £0.38
16	HA121-1448-03 Available to backorder	Rear Arm Spring	£11.94 £9.95

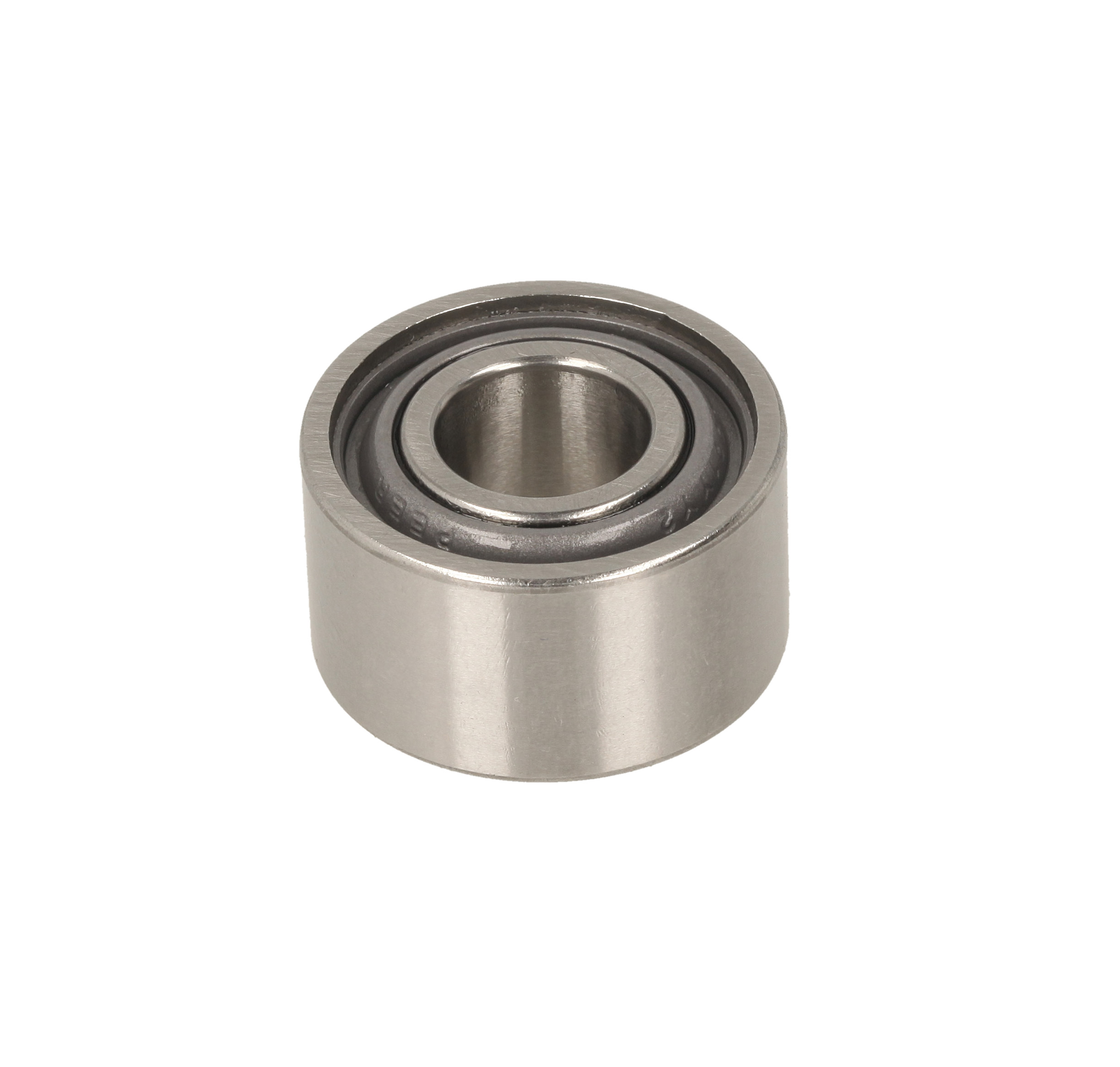

17	HA133-2606 Available to backorder	[17.2] Custom Ball Bearing	£17.94 £14.95
18	HA133-2668 Available to backorder	Hex Head (Hh) Screw	£1.90 £1.58

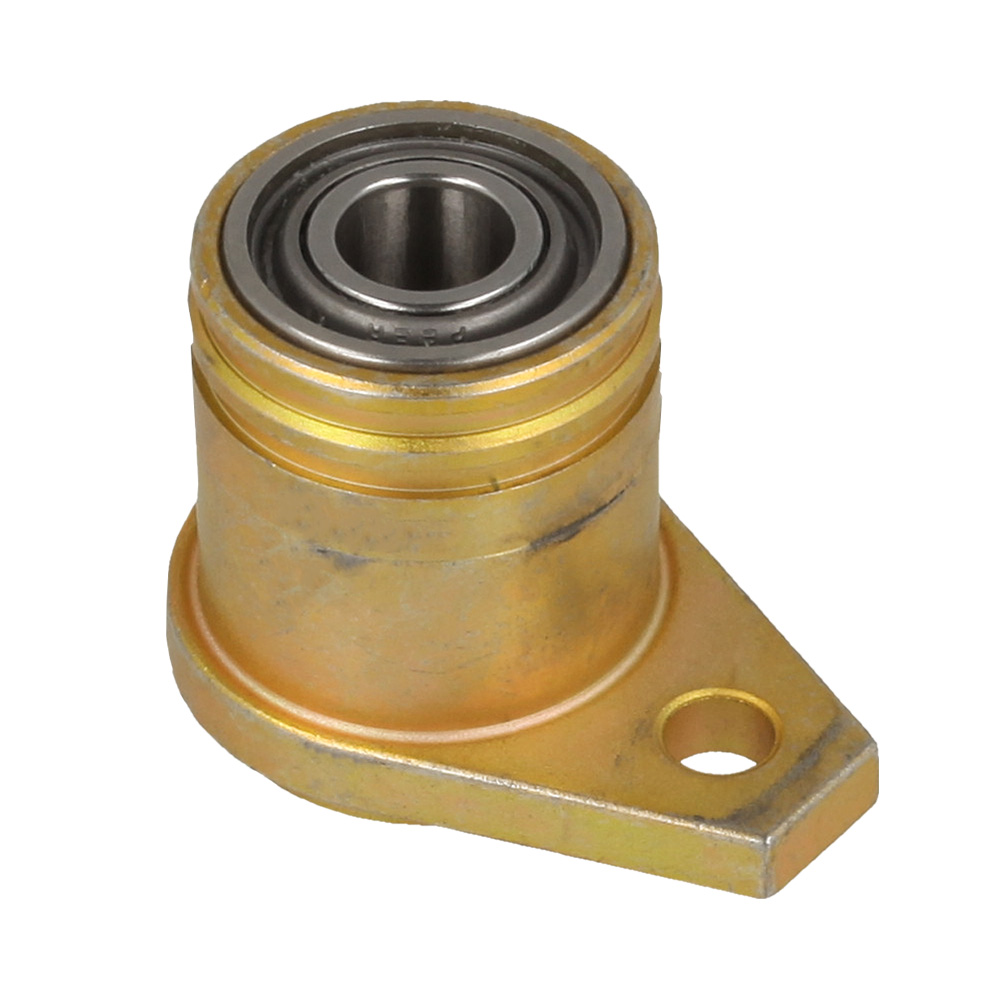

17	HA136-5894 Available to backorder	Bearing Retainer Assembly	£59.56 £49.63
19	HA133-2635 Available to backorder	Wheel Cover	£14.34 £11.95
20	HA32151-61 Available to backorder	Retaining Ring	£2.86 £2.38
21	HA131-5399 Available to backorder	Pinion Gear	£5.74 £4.78
22	HA74-1671 Available to backorder	Wheel Cover Spacer	£1.78 £1.48
23	HA133-2640 Available to backorder	9 Inch Geared Rear Drive Wheel	£85.26 £71.05
24	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
25	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
