Toro Proline Heavy-Duty 53cm - 22283 (416800000 - 999999999) Transmission and Rear Wheel

Name: Toro Proline Heavy-Duty 53cm - 22283 (416800000 - 999999999) Transmission and Rear Wheel
SKU: proline_heavy_duty_53cm_22283_4168999999999_transmissionrear_whe
Price: 0.42 GBP
Availability: InStock

Part No. proline_heavy_duty_53cm_22283_4168999999999_transmissionrear_whe

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Heavy-Duty 53cm - 22283 (416800000 - 999999999) Transmission and Rear Wheel

Description

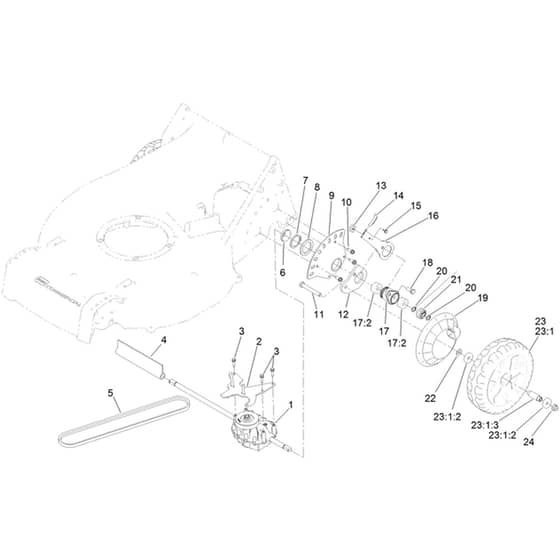

Toro Proline Heavy-Duty 53cm - 22283 (416800000 - 999999999) Transmission and Rear Wheel Parts Diagram

	Part No.	Details
0	HA125-1077 Available to backorder	Spacer	£7.54 £6.28
1	HA125-1020 Available to backorder	Transmission	£260.04 £216.70
2	HA125-8430-03 Available to backorder	Lawn Mower Belt Guide	£39.58 £32.98
3	HA27-0220 Available to backorder	Special Screw	£8.77 £7.31
4	HA130-9681 Available to backorder	Transmission Shaft Cover	£5.20 £4.33

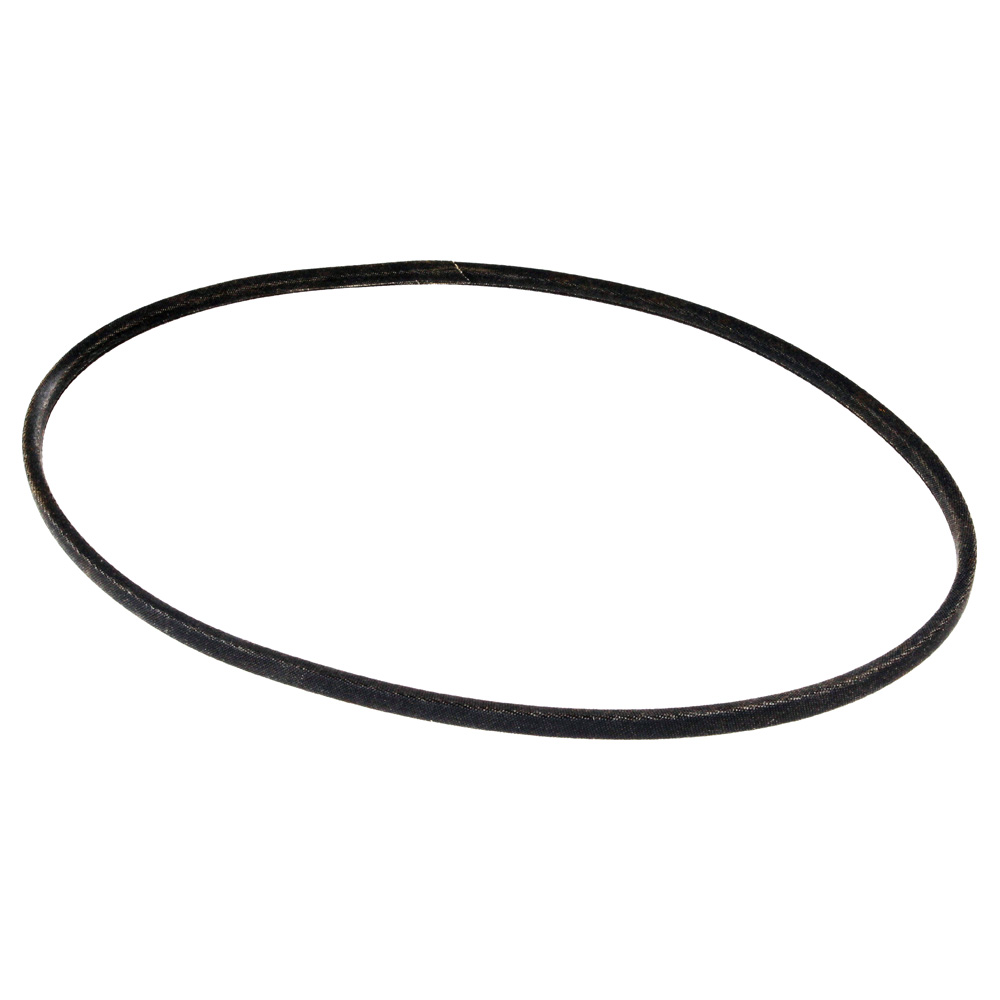

5	HA125-8395 Available to backorder	Walk Push Mower Transmission-Belt	£21.02 £17.52
6	HA127-6848 Available to backorder	Bearing Cover	£3.83 £3.19
7	HA32151-10 Available to backorder	Ring-Retaining [Ext 1-3.8"]	£1.39 £1.16
8	HA98-1452 Available to backorder	Washer-Thrust	£1.61 £1.34
9	HA130-6422 Available to backorder	Rear Height Of Cut (Hoc) Plate	£17.32 £14.43
10	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.56 £2.13
11	HA323-13 In stock	Hex Head (Hh) Screw	£2.06 £1.72
12	HA133-2641 Available to backorder	Rear Pivot Arm	£13.61 £11.34
13	HA131-5377 In stock	Spring Arm Key	£1.91 £1.59
14	HA125-1093 Available to backorder	Height Of Cut (Hoc) Lever Knob	£5.44 £4.53
15	HA104-2065 In stock	Hex Washer Head (Hwh) Screw	£0.50 £0.42
16	HA121-1448-03 Available to backorder	Rear Arm Spring	£12.35 £10.29
17	HA133-2606 Available to backorder	[17.2] Custom Ball Bearing	£18.56 £15.47
17	HA136-5894 Available to backorder	Bearing Retainer Assembly	£62.76 £52.30
18	HA133-2668 Available to backorder	Hex Head (Hh) Screw	£1.97 £1.64
19	HA133-2635 Available to backorder	Wheel Cover	£14.83 £12.36
20	HA32151-61 Available to backorder	Retaining Ring	£3.07 £2.56
21	HA131-5399 In stock	Pinion Gear	£6.25 £5.21
22	HA74-1671 Available to backorder	Wheel Cover Spacer	£1.84 £1.53
23	HA133-2640 In stock	9 Inch Geared Rear Drive Wheel	£88.44 £73.70
24	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
