Toro Proline Heavy-Duty 53cm - 22283 (416800000 - 999999999) Handle

Name: Toro Proline Heavy-Duty 53cm - 22283 (416800000 - 999999999) Handle
SKU: proline_heavy_duty_53cm_22283_4168999999999_handle-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Heavy-Duty 53cm - 22283 (416800000 - 999999999) Handle

Description

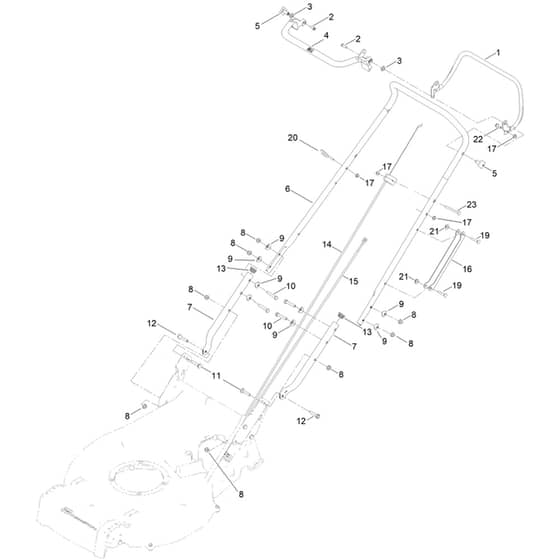

Toro Proline Heavy-Duty 53cm - 22283 (416800000 - 999999999) Handle Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA111-9381-03 In stock	Lever-Clutch. Gearbox	£16.68 £13.90
2	HA09687 In stock	Screw	£1.68 £1.40
3	HA09688 Available to backorder	Washer-Nylon	£0.70 £0.58
4	HA111-9662 In stock	Opc Lever - Engine	£18.24 £15.20
5	HA340182 In stock	Pin-Pivot	£1.66 £1.38
6	HA145-4022-03 Available to backorder	Upper Handle	£128.00 £106.67
7	HA134-5087-03 Available to backorder	Lower Handle	£49.86 £41.55
8	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
9	HA137-3009 Available to backorder	Cup Washer	£0.94 £0.78
10	HA322-39 Available to backorder	Screw-Hh[.312-18X1.750.Gr8.Bo]	£1.73 £1.44
11	HA3230-4 Available to backorder	Carriage Bolt	£0.86 £0.72
12	HA115-1794 Available to backorder	Screw-Hhf[5.16-18 X 1.5.Gr 5. Yz]	£2.70 £2.25
13	HA144-6379 Available to backorder	1 Inch Round Tube Plug	£4.66 £3.88
14	HA145-5852 Available to backorder	Brake Cable	£31.10 £25.92
15	HA161-8211 Available to backorder	Cable-Traction	£57.42 £47.85
16	HA134-5187-03 Available to backorder	Handle Cable Guard	£19.12 £15.93
17	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
19	HA108-0988 Available to backorder	Carriage Screw	£1.13 £0.94
20	HA114-2775 Available to backorder	Rope Guide	£11.94 £9.95
21	HA137-3016 Available to backorder	Hex Flange (Hf) Nut	£2.74 £2.28
22	HA42-3560 Available to backorder	Shoulder Bolt	£7.60 £6.33
23	HA144-0221 Available to backorder	Carriage Screw	£1.54 £1.28
