Toro Proline Heavy-Duty 53cm - 22283 (415300000 - 416799999) Handle

Name: Toro Proline Heavy-Duty 53cm - 22283 (415300000 - 416799999) Handle
SKU: proline_heavy_duty_53cm_22283_4153416799999_handle-group
Price: 0.55 GBP
Availability: InStock

Part No. proline_heavy_duty_53cm_22283_4153416799999_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Heavy-Duty 53cm - 22283 (415300000 - 416799999) Handle

Description

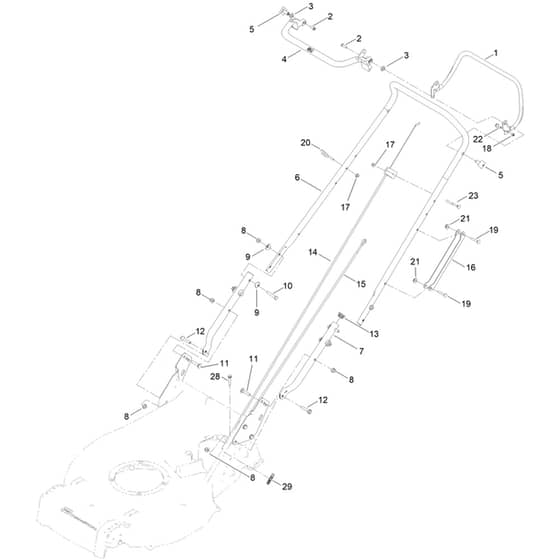

Toro Proline Heavy-Duty 53cm - 22283 (415300000 - 416799999) Handle Parts Diagram

	Part No.	Details
1	HA111-9381-03 Available to backorder	Lever-Clutch. Gearbox	£18.38 £15.32
2	HA09687 In stock	Screw	£1.84 £1.53
3	HA09688 In stock	Washer-Nylon	£0.78 £0.65
4	HA111-9662 In stock	Opc Lever - Engine	£20.12 £16.77
5	HA340182 In stock	Pin-Pivot	£1.84 £1.53
6	HA145-4022-03 Available to backorder	Upper Handle	£128.04 £106.70
7	HA134-5087-03 Available to backorder	Lower Handle	£53.23 £44.36
8	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
9	HA137-3009 Available to backorder	Cup Washer	£0.83 £0.69
10	HA322-39 Available to backorder	Screw-Hh[.312-18X1.750.Gr8.Bo]	£1.57 £1.31
11	HA3230-4 Available to backorder	Carriage Bolt	£0.80 £0.67
12	HA115-1794 Available to backorder	Screw-Hhf[5.16-18 X 1.5.Gr 5. Yz]	£2.98 £2.48
13	HA144-6379 Available to backorder	1 Inch Round Tube Plug	£4.82 £4.02
14	HA145-5852 Available to backorder	Brake Cable	£32.17 £26.81
15	HA145-1483 Available to backorder	60V Traction Cable	£50.51 £42.09
16	HA134-5187-03 Available to backorder	Handle Cable Guard	£19.78 £16.48
17	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
18	HA09544 In stock	Nut-Nyloc	£1.76 £1.47
19	HA108-0988 Available to backorder	Carriage Screw	£0.97 £0.81
20	HA114-2775 Available to backorder	Rope Guide	£12.35 £10.29
21	HA114-3778 Available to backorder	Lock Nut	£1.60 £1.33
22	HA42-3560 Available to backorder	Shoulder Bolt	£8.32 £6.93
23	HA92-2270 Available to backorder	Handle Screw	£9.77 £8.14
28	HA94-2691 Available to backorder	Screw-Hwh Taptite [.250-20 X 1.50	£1.74 £1.45
29	HA131-0822 Available to backorder	Self Propel Drive Decal	£6.41 £5.34
