Toro ProLine 113cm - 31040 (324000175-324000284) Central Bar and Rear Axle Frame

Part No. proline_113cm_31040_324175324284_central_barrear_axle_frame-grou
Toro ProLine 113cm - 31040 (324000175-324000284) Central Bar and Rear Axle Frame
Toro ProLine 113cm - 31040 (324000175-324000284) Central Bar and Rear Axle Frame

Description

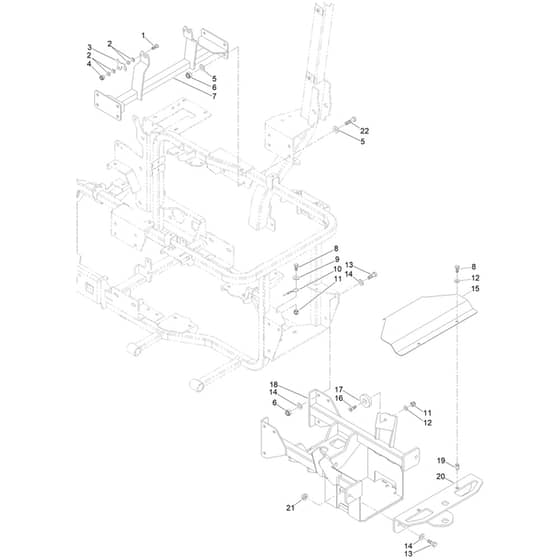

Toro ProLine 113cm - 31040 (324000175-324000284) Central Bar and Rear Axle Frame Parts Diagram

Ref. Img. Part No. Details
  1 Screw
Screw
HA134-1302
Available to backorder
Screw
£1.06 £0.88

  2 Washer. Belleville [16 X 8.2 X 0.8]
Washer. Belleville [16 X 8.2 X 0.8]
HA134-9164
Available to backorder
Washer. Belleville [16 X 8.2 X 0.8]
£1.49 £1.24

  3 Hook. Chute
Hook. Chute
HA134-9155
Available to backorder
Hook. Chute
£3.48 £2.90

  4 Nut
Nut
HA134-1038
Available to backorder
Nut
£0.54 £0.45

  5 Washer [10.5 X 25 X 4]
Washer [10.5 X 25 X 4]
HA134-9408
Available to backorder
Washer [10.5 X 25 X 4]
£1.00 £0.83

  6 Nut
Nut
HA134-1079
Available to backorder
Nut
£0.71 £0.59

  8 Screw
Screw
HA134-1011
Available to backorder
Screw
£0.54 £0.45

  9 Washer
Washer
HA134-3126
Available to backorder
Washer
£0.48 £0.40

  11 Nut
Nut
HA134-1092
Available to backorder
Nut
£0.41 £0.34

  12 Washer [M8. Cz. Uni 6592]
Washer [M8. Cz. Uni 6592]
HA134-1045
Available to backorder
Washer [M8. Cz. Uni 6592]
£0.41 £0.34

  13 Screw [M10X30. Uni 5739. Zn]
Screw [M10X30. Uni 5739. Zn]
HA134-1023
Available to backorder
Screw [M10X30. Uni 5739. Zn]
£1.16 £0.97

  14 Washer
Washer
HA134-1046
Available to backorder
Washer
£0.41 £0.34

  16 Screw
Screw
HA134-1121
Available to backorder
Screw
£1.57 £1.31

  17 Support
Support
HA134-0759
Available to backorder
Support
£20.75 £17.29

  19 Insert-Hex [M8 3.0-6.0]
Insert-Hex [M8 3.0-6.0]
HA134-9193
Available to backorder
Insert-Hex [M8 3.0-6.0]
£1.49 £1.24

  21 Nut
Nut
HA134-3009
Available to backorder
Nut
£0.85 £0.71

  22 Screw [M10X40. Uni 5739. Zn]
Screw [M10X40. Uni 5739. Zn]
HA134-1030
Available to backorder
Screw [M10X40. Uni 5739. Zn]
£1.82 £1.52


Description

Toro ProLine 113cm - 31040 (324000175-324000284) Central Bar and Rear Axle Frame Parts Diagram
