Toro ProLine 113cm - 31040 (324000167 - 324000174) Hopper Electrical

Name: Toro ProLine 113cm - 31040 (324000167 - 324000174) Hopper Electrical
SKU: proline_113cm_31040_324167324174_hopper_electrical-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro ProLine 113cm - 31040 (324000167 - 324000174) Hopper Electrical

Description

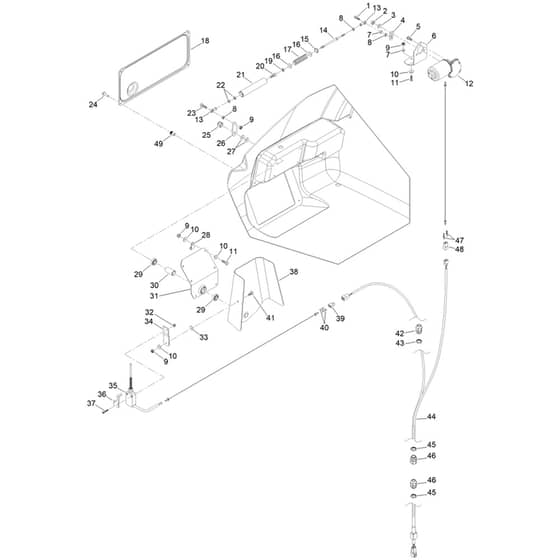

Toro ProLine 113cm - 31040 (324000167 - 324000174) Hopper Electrical Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA134-9371 Available to backorder	Screw [M6 X 22 Uni 5739]	£0.55 £0.46
2	HA134-1078 Available to backorder	Nut	£0.48 £0.40
3	HA134-1054 Available to backorder	Washer	£0.60 £0.50
4	HA134-1003 Available to backorder	Plate. Hopper-Spreader	£21.04 £17.53
5	HA134-1303 Available to backorder	Screw	£0.72 £0.60
6	HA134-0766 Available to backorder	Support-Engine	£12.72 £10.60
7	HA134-1044 Available to backorder	Washer	£0.48 £0.40
8	HA134-1039 Available to backorder	Nut	£0.48 £0.40
9	HA134-1041 Available to backorder	Nut	£0.48 £0.40
10	HA134-1234 Available to backorder	Washer	£0.48 £0.40
11	HA134-1009 Available to backorder	Screw	£0.60 £0.50
12	HA134-0595 Available to backorder	Baffle-Motor	£214.20 £178.50
13	HA134-0592 Available to backorder	Head-Joint	£46.84 £39.03
16	HA134-0691 Available to backorder	Washer	£5.02 £4.18
17	HA134-0926 Available to backorder	Spring	£5.52 £4.60
18	HA134-0914 Available to backorder	Cover	£48.00 £40.00
19	HA134-1042 Available to backorder	Nut	£0.48 £0.40
20	HA134-1025 Available to backorder	Screw	£0.67 £0.56
21	HA134-9614 Available to backorder	Body Shock Kit	£34.94 £29.12
22	HA134-1080 Available to backorder	Nut	£0.48 £0.40
23	HA134-9370 Available to backorder	Screw-Hh [M6 X 30 Uni 5735]	£0.55 £0.46
24	HA134-8236 Available to backorder	Screw-Flange [M6 X 16. A2]	£1.36 £1.13
25	HA134-1081 Available to backorder	Nut	£1.32 £1.10
26	HA134-0768 Available to backorder	Lever-Hopper [Galvanised]	£2.62 £2.18
27	HA134-0998 Available to backorder	Spacer	£4.76 £3.97
28	HA134-1348 Available to backorder	Grommet	£7.18 £5.98
29	HA134-1104 Available to backorder	Bearing [Nsk 6001-2Rs.12X28X8]	£23.14 £19.28
30	HA134-0841 Available to backorder	Spacer	£10.28 £8.57
31	HA134-0767 Available to backorder	Support-Spreader	£34.74 £28.95
32	HA134-1040 Available to backorder	Nut	£0.48 £0.40
33	HA134-1237 Available to backorder	Washer-Belleville [23X10.2X0.9]	£1.32 £1.10
34	HA134-0916 Available to backorder	Support-Sensor. Catcher	£6.52 £5.43
35	HA134-0607 Available to backorder	Microswitch. Hopper	£119.82 £99.85
36	HA134-0700 Available to backorder	Bracket	£7.36 £6.13
37	HA134-1113 Available to backorder	Screw	£0.48 £0.40
38	HA134-3103 Available to backorder	Manifold	£71.46 £59.55
39	HA134-1288 Available to backorder	Connector-Electric	£0.86 £0.72
40	HA134-1221 Available to backorder	Cap-Cable End. Female	£0.86 £0.72
41	HA134-1304 Available to backorder	Screw	£1.94 £1.62
42	HA134-1278 Available to backorder	Fitting-Union	£5.26 £4.38
43	HA134-1292 Available to backorder	Nut-Plastic	£1.70 £1.42
44	HA134-0601 Available to backorder	Wiring-Catcher. Grass	£94.12 £78.43
47	HA134-1225 Available to backorder	Connector	£0.65 £0.54
48	HA134-1222 Available to backorder	Connector-Electric	£3.34 £2.78
49	HA134-8237 Available to backorder	Nutsert-Blind [M6 X 12. Steel]	£4.00 £3.33
