Toro ProLine 113cm - 31040 (324000167 - 324000174) Gearbox No. 1

Name: Toro ProLine 113cm - 31040 (324000167 - 324000174) Gearbox No. 1
SKU: proline_113cm_31040_324167324174_gearbox_no_1-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro ProLine 113cm - 31040 (324000167 - 324000174) Gearbox No. 1

Description

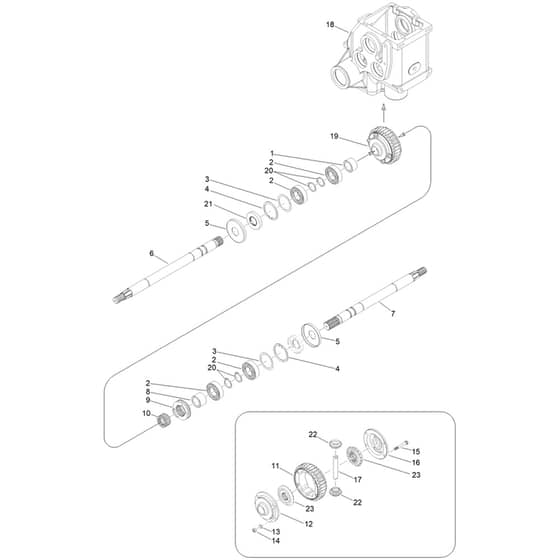

Toro ProLine 113cm - 31040 (324000167 - 324000174) Gearbox No. 1 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA134-5172 Available to backorder	Bearing [Nsk 6205.cm.25X52X15]	£21.54 £17.95
3	HA134-0996 Available to backorder	Spacer	£6.42 £5.35
4	HA134-1057 Available to backorder	Ring-Retaining. Int [52. 7437 Uni]	£3.10 £2.58
5	HA134-7646 Available to backorder	Cap. Gearbox	£7.94 £6.62
9	HA134-9422 Available to backorder	Sleeve. Differential Lock	£72.10 £60.08
10	HA134-9423 Available to backorder	Splined Bushing	£36.04 £30.03
11	HA134-9425 Available to backorder	Spur Gear. Differential	£131.68 £109.73
12	HA134-9428 Available to backorder	Cover. Lh Differential Gear	£67.40 £56.17
13	HA134-3027 Available to backorder	Washer-Wave [12 X 6.5 X 0.5 X 2.1]	£0.48 £0.40
14	HA134-1039 Available to backorder	Nut	£0.48 £0.40
15	HA134-9426 Available to backorder	Screw-Hh [M6 X 45 Uni 5735]	£0.94 £0.78
16	HA134-9424 Available to backorder	Cover. Rh Differential Gear	£105.02 £87.52
17	HA134-9427 Available to backorder	Pin. Satellite	£23.50 £19.58
19	HA134-9589 Available to backorder	Differential Gear. Assembly	£414.00 £345.00
20	HA134-9491 Available to backorder	Retainer. Shaft [Dia 25 X 2 Uni7436]	£1.49 £1.24
21	HA134-9492 Available to backorder	Seal. Oil [Dia 25 X 52 X8]	£10.96 £9.13
22	HA134-9495 Available to backorder	Gear. Satellite	£54.86 £45.72
23	HA134-9494 Available to backorder	Gear. Planetary	£76.80 £64.00
