Toro ProLine 113cm - 31040 (323000000 - 323000100) Gearbox No. 1

Part No. proline_113cm_31040_3233231_gearbox_no_1-group
Toro ProLine 113cm - 31040 (323000000 - 323000100) Gearbox No. 1
Toro ProLine 113cm - 31040 (323000000 - 323000100) Gearbox No. 1

Description

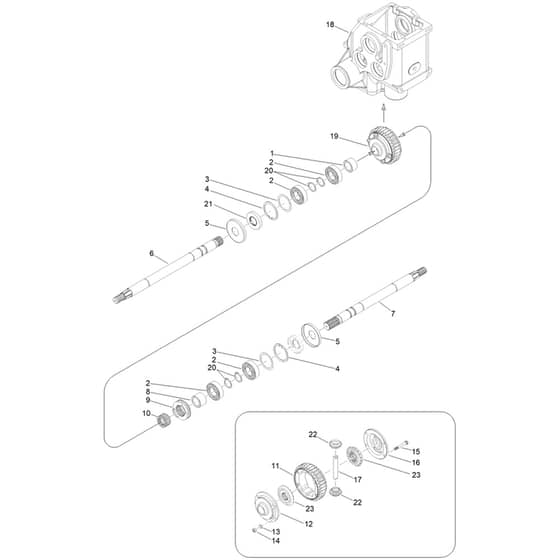

Toro ProLine 113cm - 31040 (323000000 - 323000100) Gearbox No. 1 Parts Diagram

Ref. Img. Part No. Details
  2 Bearing [Nsk 6205.cm.25X52X15]
Bearing [Nsk 6205.cm.25X52X15]
HA134-5172
Available to backorder
Bearing [Nsk 6205.cm.25X52X15]
£22.86 £19.05

  3 Spacer
Spacer
HA134-0996
Available to backorder
Spacer
£6.80 £5.67

  4 Ring-Retaining. Int [52. 7437 Uni]
Ring-Retaining. Int [52. 7437 Uni]
HA134-1057
Available to backorder
Ring-Retaining. Int [52. 7437 Uni]
£3.29 £2.74

  5 Cap. Gearbox
Cap. Gearbox
HA134-7646
Available to backorder
Cap. Gearbox
£8.42 £7.02

  9 Sleeve. Differential Lock
Sleeve. Differential Lock
HA134-9422
Available to backorder
Sleeve. Differential Lock
£74.04 £61.70

  10 Splined Bushing
Splined Bushing
HA134-9423
Available to backorder
Splined Bushing
£38.26 £31.88

  11 Spur Gear. Differential
Spur Gear. Differential
HA134-9425
Available to backorder
Spur Gear. Differential
£135.12 £112.60

  12 Cover. Lh Differential Gear
Cover. Lh Differential Gear
HA134-9428
Available to backorder
Cover. Lh Differential Gear
£69.24 £57.70

  13 Washer-Wave [12 X 6.5 X 0.5 X 2.1]
Washer-Wave [12 X 6.5 X 0.5 X 2.1]
HA134-3027
Available to backorder
Washer-Wave [12 X 6.5 X 0.5 X 2.1]
£0.41 £0.34

  14 Nut
Nut
HA134-1039
Available to backorder
Nut
£0.41 £0.34

  15 Screw-Hh [M6 X 45 Uni 5735]
Screw-Hh [M6 X 45 Uni 5735]
HA134-9426
Available to backorder
Screw-Hh [M6 X 45 Uni 5735]
£0.83 £0.69

  16 Cover. Rh Differential Gear
Cover. Rh Differential Gear
HA134-9424
Available to backorder
Cover. Rh Differential Gear
£107.76 £89.80

  17 Pin. Satellite
Pin. Satellite
HA134-9427
Available to backorder
Pin. Satellite
£24.95 £20.79

  19 Differential Gear. Assembly
Differential Gear. Assembly
HA134-9589
Available to backorder
Differential Gear. Assembly
£382.27 £318.56

  20 Retainer. Shaft [Dia 25 X 2 Uni7436]
Retainer. Shaft [Dia 25 X 2 Uni7436]
HA134-9491
Available to backorder
Retainer. Shaft [Dia 25 X 2 Uni7436]
£1.31 £1.09

  21 Seal. Oil [Dia 25 X 52 X8]
Seal. Oil [Dia 25 X 52 X8]
HA134-9492
Available to backorder
Seal. Oil [Dia 25 X 52 X8]
£11.63 £9.69

  22 Gear. Satellite
Gear. Satellite
HA134-9495
Available to backorder
Gear. Satellite
£58.24 £48.53

  23 Gear. Planetary
Gear. Planetary
HA134-9494
Available to backorder
Gear. Planetary
£78.84 £65.70


Description

Toro ProLine 113cm - 31040 (323000000 - 323000100) Gearbox No. 1 Parts Diagram
