PRINCESS 38 Li Kit - 2021-2022 - 294386263/M21 - Mountfield Rotary Mower Blade Diagram

Name: PRINCESS 38 Li Kit - 2021-2022 - 294386263/M21 - Mountfield Rotary Mower Blade Diagram
SKU: princess_38_li_kit_294386263_m21_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. princess_38_li_kit_294386263_m21_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PRINCESS 38 Li Kit - 2021-2022 - 294386263/M21 - Mountfield Rotary Mower Blade Diagram

Description

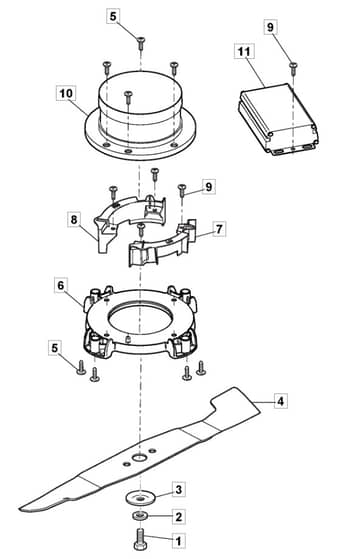

Mountfield PRINCESS 38 Li Kit Parts Diagram

Model Year - 2021-2022

Model Type - EL 380 Li 48L

Art.N - 294386263/M21

	Part No.	Details
1	MO112793312/0 Available to backorder	Screw	£1.55 £1.29
2	MO122671651/0 In stock	Washer	£1.97 £1.64
3	MO112508122/0 Available to backorder	Washer	£1.63 £1.36
4	MO181004466/0 In stock	Blade	£15.76 £13.13
5	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
7	MO322393686/0 Available to backorder	Left Battery Flange Wall	£1.84 £1.53
8	MO322393685/0 Available to backorder	Right Battery Flange Wall	£1.84 £1.53
9	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
10	MO118563519/0 Available to backorder	Electric Motor	£125.30 £104.42
11	MO118206013/0 Available to backorder	Controller Li 48V 20A	£175.97 £146.64
