PRINCESS 38 - 2021-2022 - 294380063/M21 - Mountfield Rotary Mower Handle Diagram

Name: PRINCESS 38 - 2021-2022 - 294380063/M21 - Mountfield Rotary Mower Handle Diagram
SKU: princess_38_294380063_m21_handle-group
Price: 1.22 GBP
Availability: InStock

Part No. princess_38_294380063_m21_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PRINCESS 38 - 2021-2022 - 294380063/M21 - Mountfield Rotary Mower Handle Diagram

Description

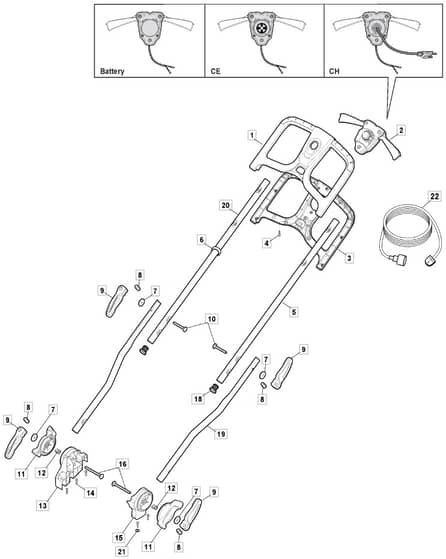

Mountfield PRINCESS 38 Parts Diagram

Model Year - 2021-2022

Model Type - EL 380

Art.N - 294380063/M21

	Part No.	Details
1	MO322291070/0 Available to backorder	Upper Half Handgrip Switch	£21.89 £18.24
2	MO381600521/1 Available to backorder	Dead Hand Switch Ce. Yellow	£45.04 £37.53
3	MO322291071/0 Available to backorder	Lower Half Handgrip Switch	£21.41 £17.84
4	MO112728713/0 Available to backorder	Screw	£1.46 £1.22
6	MO122192000/1 Available to backorder	Clamp	£1.84 £1.53
7	MO112523050/0 In stock	Washer	£1.57 £1.31
8	MO122524352/0 In stock	Pin	£3.52 £2.93
9	MO322319526/1 Available to backorder	Fixing Lever Handle	£2.40 £2.00
10	MO122943016/0 In stock	Screw	£1.55 £1.29
11	MO322246102/0 Available to backorder	Handle Joint	£4.08 £3.40
12	MO122430210/0 Available to backorder	Bearing	£1.70 £1.42
13	MO322745055/0 Available to backorder	Right Joint	£7.31 £6.09
14	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
15	MO322745056/0 Available to backorder	Left Joint	£7.31 £6.09
16	MO122943017/0 Available to backorder	Screw	£1.70 £1.42
18	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch	£1.55 £1.29
19	MO381007513/0 Available to backorder	Lower Handle. Black	£10.98 £9.15
20	MO381007514/1 Available to backorder	Upper Handle. Black Left + Right Part	£11.12 £9.27
21	MO112521320/0 Available to backorder	Washer	£1.63 £1.36
22	MO1911-9291-01 In stock		£37.84 £31.53
