Primo - 2009 - 13-2412-02 - Mountfield Front Mower PTO (Power Take Off) Diagram

Description

Mountfield Primo Parts Diagram

Product Name - Primo

Model Year - 2009

Model Type -

Art.N - 13-2412-02

Engine Model -

	Part No.	Details
1	MO1134-6496-01 Available to backorder	Belt Pulley	£64.75 £53.96
3	MO1134-6617-01 Available to backorder	Intermediate Belt Pulley	£109.09 £90.91
4	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
7	MO1134-5548-01 In stock	Spacer	£13.94 £11.62
11	MO9838-8822-19 Available to backorder	Screw	£1.55 £1.29
12	MO1134-6501-01 Available to backorder	Clutch Lever	£25.62 £21.35
14	MO9997-0811-02 Available to backorder	Screw	£3.25 £2.71

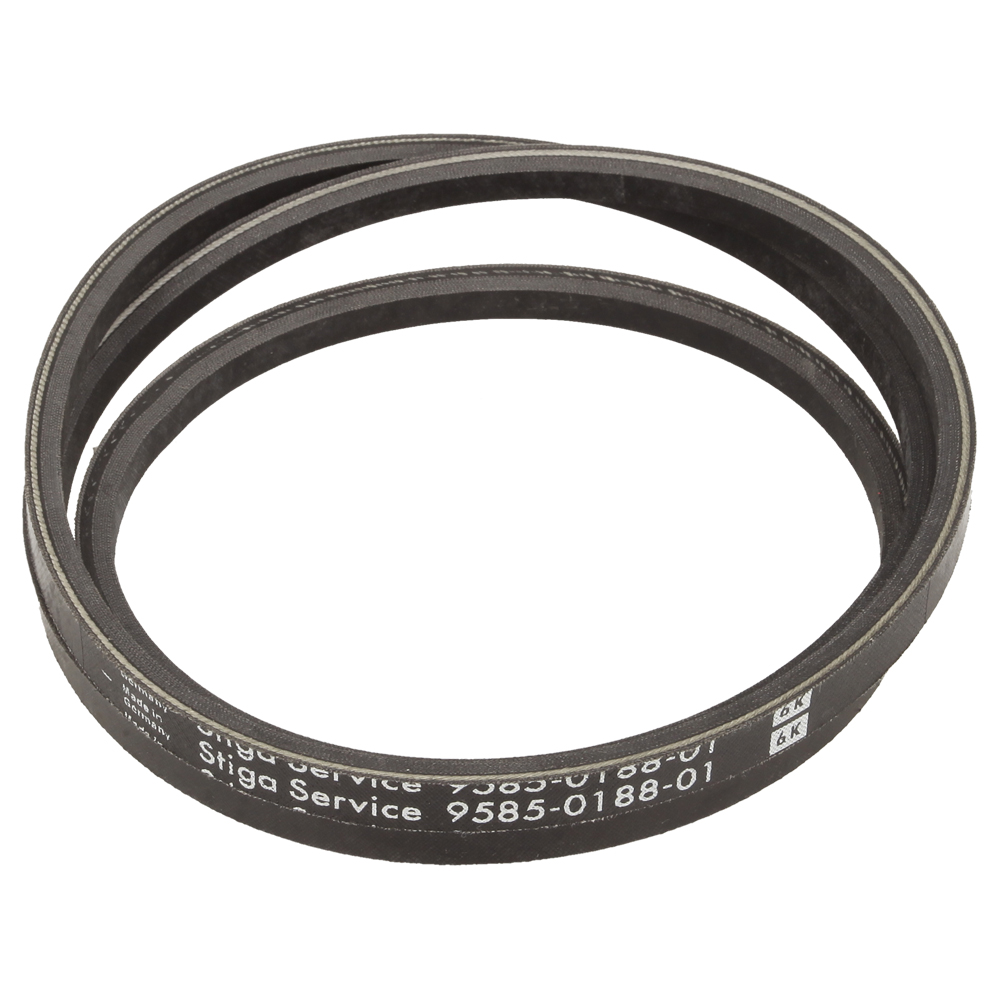

17	MO1134-9135-01 Available to backorder	V-Belt	£33.66 £28.05

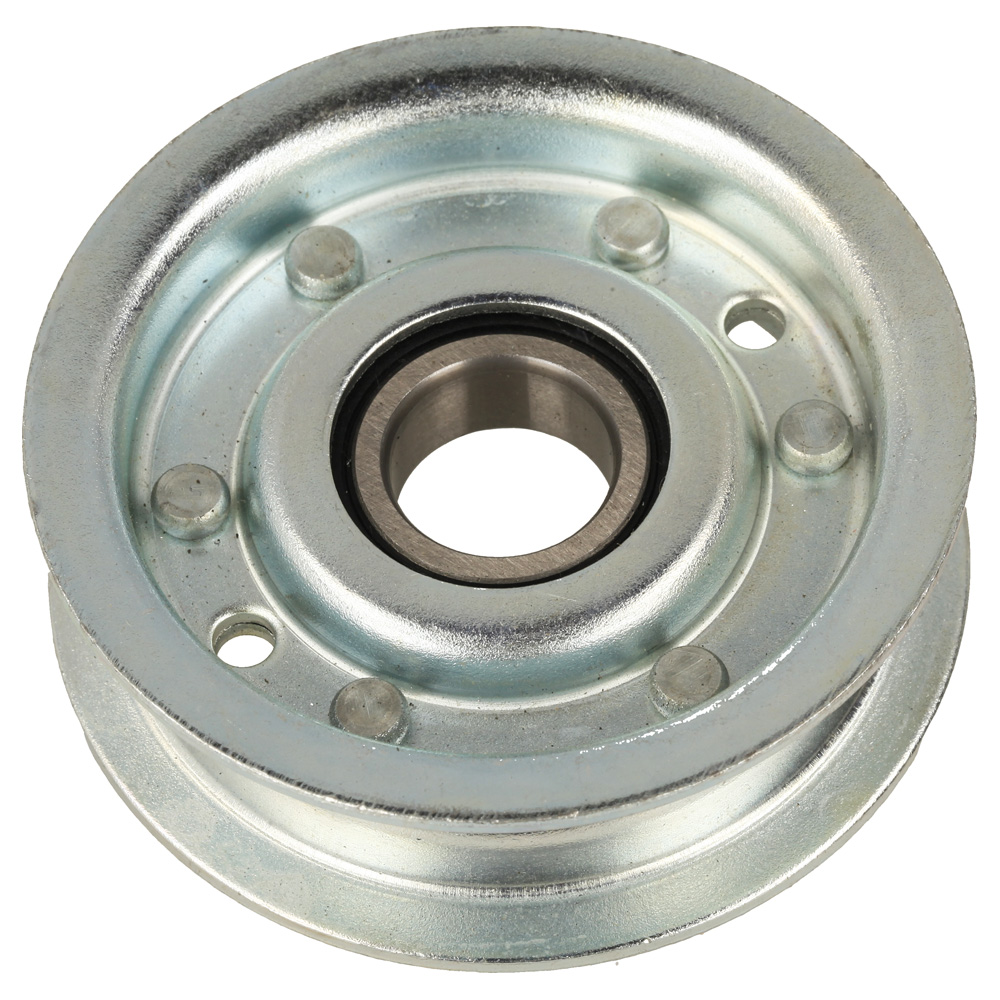

18	MO1134-6516-01 Available to backorder	Tension Roller	£14.58 £12.15
20	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
22	MO112295200/0 In stock	Nut	£1.39 £1.16
24	MO1134-4164-04 Available to backorder	Brake Pad	£40.27 £33.56
25	MO9897-0825-16 Available to backorder	Screw	£2.93 £2.44
26	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
27	MO112523060/0 In stock	Washer	£1.55 £1.29
28	MO9997-0840-16 Available to backorder	Screw	£1.55 £1.29
29	MO1134-1565-06 Available to backorder	Spacer	£10.98 £9.15
31	MO1134-4170-01 Available to backorder	Nippel	£16.75 £13.96
32	MO112154510/0 In stock	Lock Nut	£1.55 £1.29

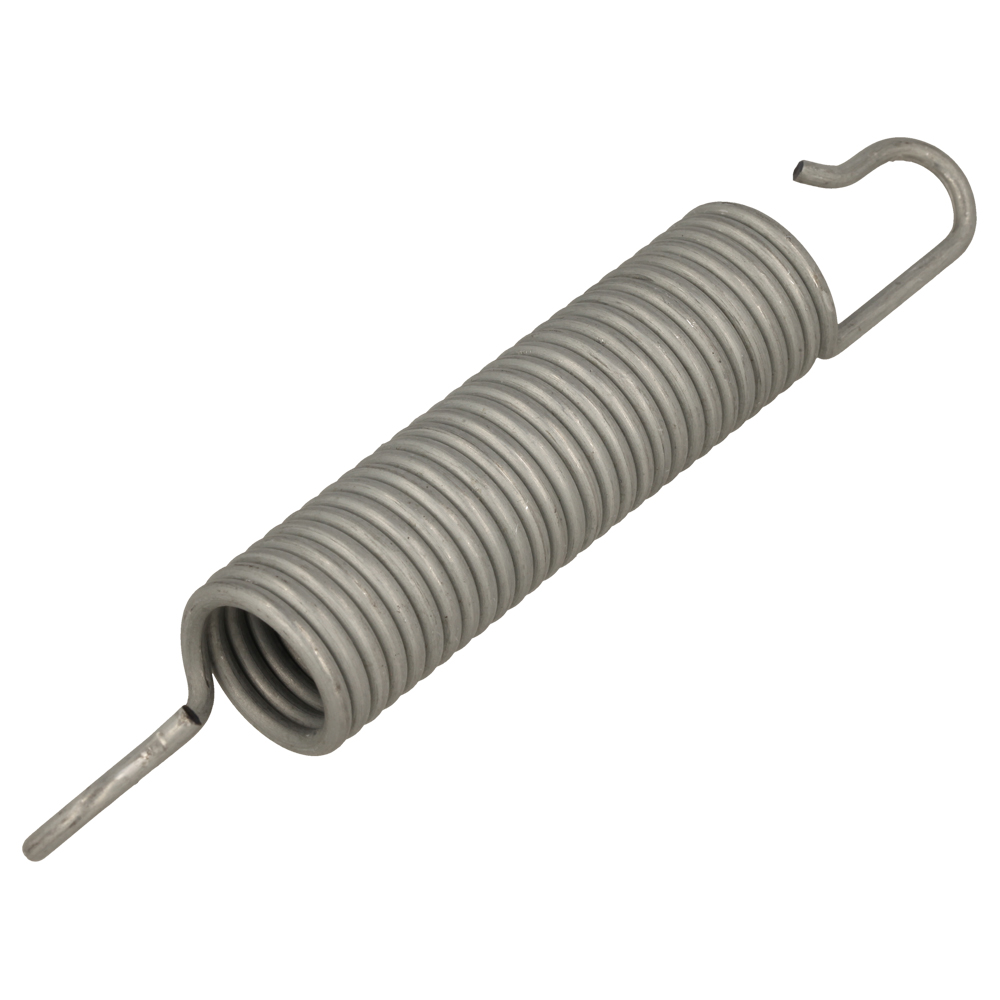

41	MO1134-5713-03 In stock	Spring	£13.81 £11.51
