Primo - 2009 - 13-2412-02 - Mountfield Front Mower Frame Diagram

Description

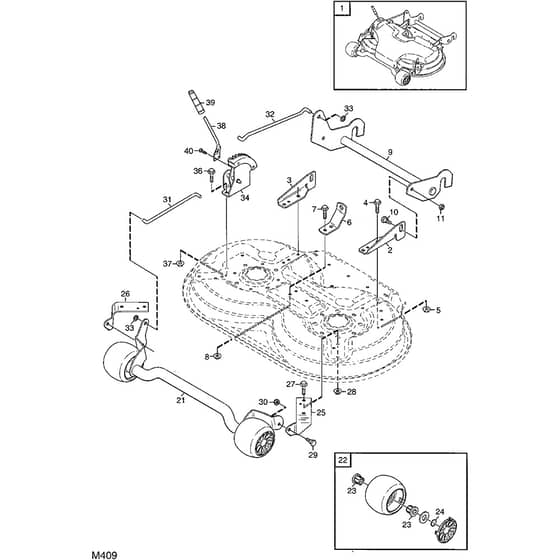

Mountfield Primo Parts Diagram

Product Name - Primo

Model Year - 2009

Model Type -

Art.N - 13-2412-02

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
9	MO1134-6598-01 Available to backorder	Mounting Frame	£59.12 £49.27
21	MO1134-6735-01 Available to backorder	Fuel Tube Pos 22 incl.	£171.86 £143.22
22	MO1134-9139-01 Available to backorder	Support Wheel Kit Pos 23. 24 incl.	£81.66 £68.05
23	MO1134-0068-00 Available to backorder	Bushing	£4.37 £3.64
24	MO112609260/0 Available to backorder	Circlip	£1.82 £1.52
29	MO1134-0240-00 In stock	Screw	£8.80 £7.33
30	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
33	MOMX585 Available to backorder	Starlock	£1.14 £0.95
36	MO9959-0820-16 In stock	Screw	£1.55 £1.29
37	MO112293201/0 In stock	Nut	£1.69 £1.41
39	MO322399808/0 Available to backorder	Lever Knob	£2.40 £2.00
40	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
