Primo - 2009 - 13-2412-02 - Mountfield Front Mower Blade Diagram

Description

Mountfield Primo Parts Diagram

Product Name - Primo

Model Year - 2009

Model Type -

Art.N - 13-2412-02

Engine Model -

	Part No.	Details
2	MO9945-0825-16 In stock	Screw	£2.40 £2.00
3	MO1134-6609-01 Available to backorder	Blade Bar	£45.79 £38.16

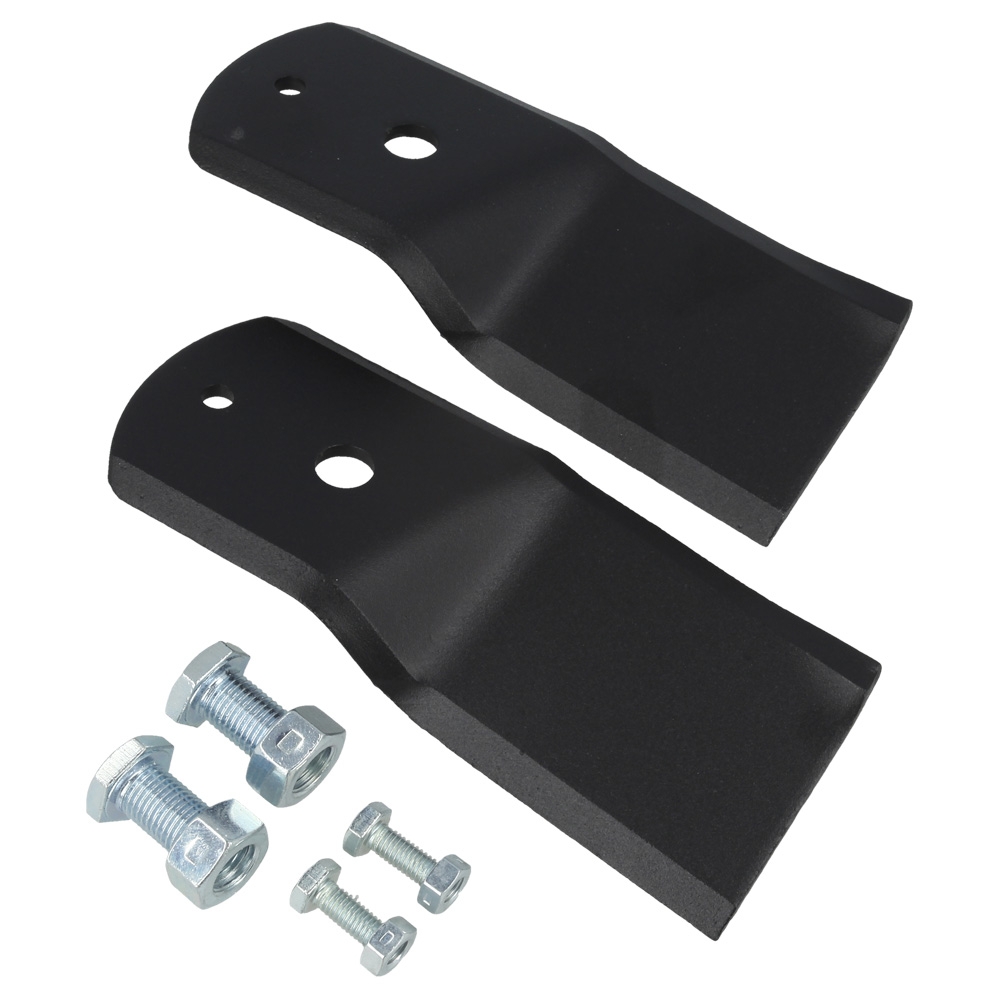

4	MO1134-9130-01 In stock	Blade Kit Sats 2 st. Kit of 2	£32.32 £26.93
5	MO1134-9054-01 In stock	Shear Bolt Kit 6 bultar.6 bolts+nuts	£8.59 £7.16
6	MO1134-6311-01 Available to backorder	Bolt	£2.94 £2.45
7	MO1134-6312-01 Available to backorder	Nut	£2.53 £2.11
8	MO1134-6211-01 Available to backorder	Washer	£3.10 £2.58
12	MO1134-0341-01 Available to backorder	Washer	£6.64 £5.53
21	MO1134-6713-02 Available to backorder	Transm.Cover-Red	£49.26 £41.05
22	MO1134-0240-00 In stock	Screw	£8.80 £7.33
24	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
25	MO1134-6616-01 Available to backorder	Toothed Pulley Assy	£27.54 £22.95
26	MO1134-6607-01 Available to backorder	Belt Pulley	£161.89 £134.91

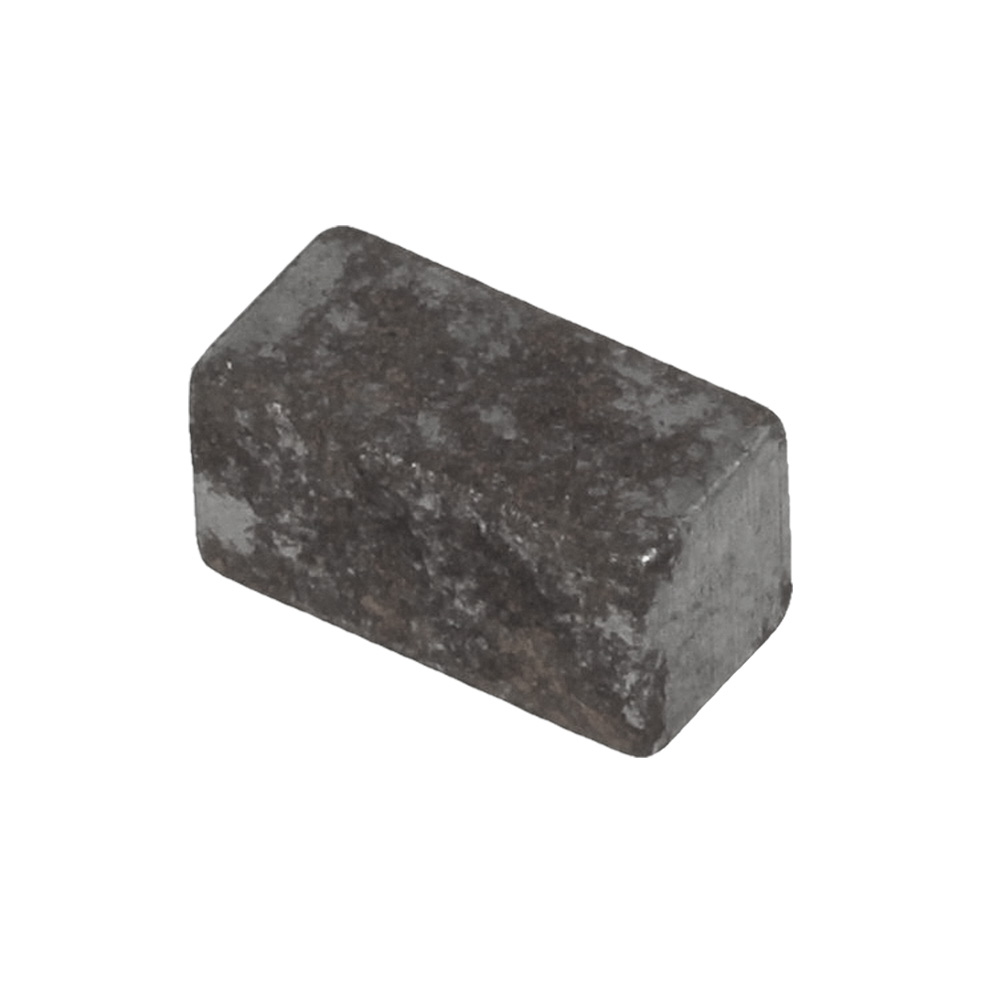

27	MO9600-0168-01 Available to backorder	Key	£4.24 £3.53
28	MO1134-5124-02 Available to backorder	Spacer	£16.50 £13.75
29	MO1134-5406-01 Available to backorder	Washer	£3.79 £3.16
30	MO9997-0850-16 Available to backorder	Screw	£4.08 £3.40
31	MO1134-9133-01 Available to backorder	Toothed Belt	£32.32 £26.93
32	MO9585-0176-01 Available to backorder	V-Belt	£38.93 £32.44
34	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
35	MO112293201/0 In stock	Nut	£1.70 £1.42
37	MO112523060/0 In stock	Washer	£1.55 £1.29
