PR 2510 - 2014-2015 - 228010023/MBR - Mountfield Chainsaw Engine Diagram

Description

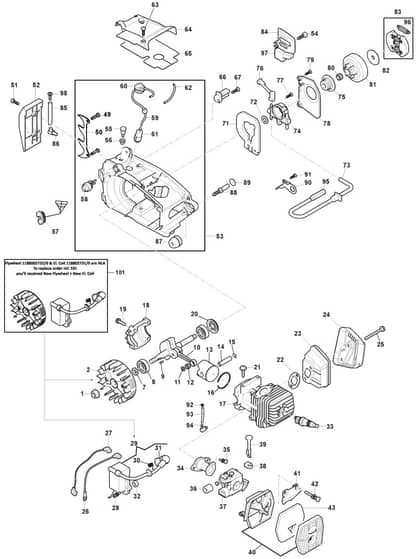

Mountfield PR 2510 Parts Diagram

Model Year - 2014-2015

Model Type - CJ 300

Art.N - 228010023/MBR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO123120008/0 Available to backorder	Nut	£1.69 £1.41
2	MO118805205/0 Available to backorder	Flywheel Ass.Y Euro-2 From S.N 19AC1CHA102285	£29.48 £24.57
7	MO119035162/0 Available to backorder	Seal Ring	£4.78 £3.98
8	MO114215219/0 Available to backorder	Ball Bearing	£5.76 £4.80
9	MO118800959/0 Available to backorder	Flywheel Key	£1.55 £1.29
10	MO123020030/0 Available to backorder	Crankshaft	£32.38 £26.98
11	MO123652505/0 Available to backorder	Washer	£2.95 £2.46
12	MO123235008/0 In stock	Needle Bearing	Was £4.96 £4.13 Special Price £2.38 £1.98
13	MO123590012/0 Available to backorder	Piston	£9.16 £7.63
14	MO123760006/0 Available to backorder	Piston Pin	£1.69 £1.41
15	MO123202006/0 Available to backorder	Circlip	£1.33 £1.11
16	MO123204014/0 Available to backorder	Piston Ring	£4.93 £4.11
17	MO118805206/0 Available to backorder	Cylinder Assy Euro-2	£232.28 £193.57
18	MO123082006/0 Available to backorder	Stabilizer	£4.78 £3.98
20	MO119035163/0 Available to backorder	Seal Ring	£4.93 £4.11
21	MO123878081/0 Available to backorder	Screw	£1.75 £1.46
22	MO123280067/0 Available to backorder	Muffler Gasket	£1.55 £1.29
23	MO118802733/0 Available to backorder	Muffler Euro-2	£56.32 £46.93
24	MO118804648/0 Available to backorder	Muffler Cover Euro-2	£1.97 £1.64
25	MO123878078/0 Available to backorder	Screw	£1.40 £1.17
26	MO6995210 Available to backorder	Earth Cable	£6.90 £5.75
27	MO6995227 Available to backorder	Stop Wire	£7.19 £5.99
28	MO123878079/0 Available to backorder	Screw	£1.33 £1.11
29	MO118805204/0 Available to backorder	Electronic Coil Euro-2 From S.N 19AC1CHA102285	£36.29 £30.24
30	MO6995022 Available to backorder	Spark Plug Spring	£1.40 £1.17
31	MO6995066 Available to backorder	Spark Plug Cover	£4.72 £3.93
32	MO123160063/0 Available to backorder	Spacer	£1.33 £1.11
33	2688 In stock	Spark Plug	Was £1.44 £1.20 Special Price £1.07 £0.89
34	MO123073516/0 Available to backorder	Intake Manifold Assy	£2.26 £1.88
36	MO118801153/0 Available to backorder	Gasket	£1.33 £1.11
37	MO123054034/0 Available to backorder	Carburetor	£82.84 £69.03
38	MO123275025/0 Available to backorder	Grommet Air-Lever	£1.40 £1.17
39	MO123315093/0 Available to backorder	Air Lever. Black	£1.82 £1.52
40	MO183040000/0 Available to backorder	Air Filter Support + Cover	£5.64 £4.70
41	MO123543002/0 Available to backorder	Plate	£2.81 £2.34
42	MO123878086/0 Available to backorder	Screw	£1.69 £1.41
43	MO123220014/0 Available to backorder	Air Filter	£2.26 £1.88
50	MO118550596/0 Available to backorder	Spike	£2.95 £2.46
51	MO123878008/0 Available to backorder	Screw	£1.40 £1.17
52	MO118801597/0 Available to backorder	Front Cover. White	£5.35 £4.46
53	MO183057007/0 Available to backorder	Crankcase Ass.Y. Yellow You can use also the Black 118802270.0 but the oil vent valve is not on the front	£29.56 £24.63
54	MO6995187 Available to backorder	Screw	£1.33 £1.11
55	MO183875003/0 Available to backorder	Breather Valve Assy	£4.22 £3.52
56	MO123275024/0 Available to backorder	Grommet	£1.69 £1.41
57	MO118804552/0 Available to backorder	Cap Ass'Y	£3.38 £2.82
58	MO118804231/0 In stock	Air Purge	£7.14 £5.95
59	MO123867019/0 Available to backorder	Pipe	£2.40 £2.00
60	MO123650004/0 Available to backorder	Grommet	£3.79 £3.16
61	MO183520007/0 Available to backorder	Fuel Pickup Assy	£3.52 £2.93
62	MO118801532/0 Available to backorder	Pipe	£2.12 £1.77
64	MO123109580/0 Available to backorder	Upper Cover. White	£3.38 £2.82
65	MO123600072/0 Available to backorder	Guard	£2.40 £2.00
66	MO123202007/0 Available to backorder	Chain Guard	£3.52 £2.93
71	MO123600073/0 Available to backorder	Gasket	£1.55 £1.29
72	MO123652506/0 Available to backorder	Washer	£1.33 £1.11
73	MO123867020/0 Available to backorder	Pipe	£2.40 £2.00
75	MO123878083/0 Available to backorder	Screw	£3.38 £2.82
76	MO123867024/0 Available to backorder	Pipe	£1.33 £1.11
77	MO123878084/0 Available to backorder	Screw	£1.33 £1.11
78	MO123109577/0 Available to backorder	Cover Pump	£1.33 £1.11
80	MO123235009/0 Available to backorder	Needle Bearing	£4.78 £3.98
81	MO123050007/0 Available to backorder	Clutch Drum Assy	£15.48 £12.90
82	MO123657011/0 Available to backorder	Sprocket Washer	£1.69 £1.41
83	MO183215008/0 Available to backorder	Clutch Ass.Y	£12.17 £10.14
84	MO123311009/0 Available to backorder	Plate	£1.33 £1.11
85	MO118800255/0 Available to backorder	Pickup Oil	£1.69 £1.41
86	MO118801162/0 Available to backorder	Nozzle	£1.55 £1.29
87	MO123275027/0 Available to backorder	Shock Absorber	£2.68 £2.23
88	MO123878093/0 Available to backorder	Screw	£1.69 £1.41
89	MO123790022/0 Available to backorder	Cap. Black	£1.33 £1.11
90	MO123208412/0 Available to backorder	Clamp	£1.69 £1.41
91	MO123878080/0 Available to backorder	Screw	£1.40 £1.17
92	MO123206852/0 Available to backorder	Fair Led	£1.33 £1.11
93	MO123867018/0 Available to backorder	Pipe	£1.69 £1.41
94	MO118803594/0 Available to backorder	Joint	£2.81 £2.34
95	MO123220013/0 Available to backorder	Fuel Pickup Assy	£2.40 £2.00
96	MO123430593/0 Available to backorder	Clutch Spring	£2.95 £2.46
97	MO123600074/0 Available to backorder	Guard	£1.33 £1.11
98	MO112728524/0 Available to backorder	Screw	£1.48 £1.23
