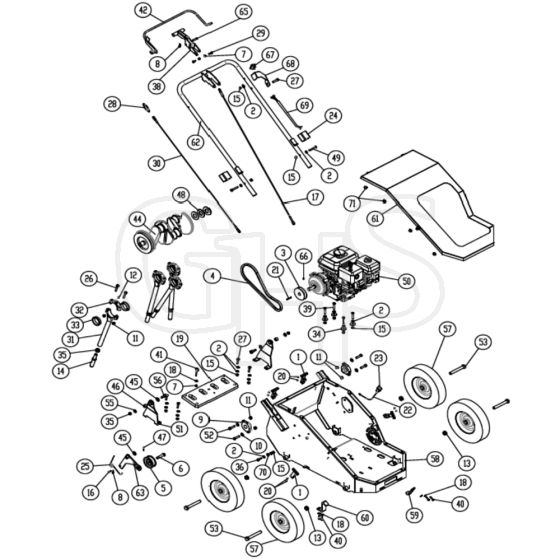

Billy Goat PL1800H - 18" Plugr Main Diagram

Ref. Img. Part No. Details
  1 Rubber Latch Kit BG382611
Rubber Latch Kit
Out of stock
£44.23 £36.86

  2 Flat Washer 5/16 BG8171003
Flat Washer 5/16"
Out of stock
£0.78 £0.65

  3 Engine Pulley 35 BG5105968
Engine Pulley 35"
Out of stock
£52.24 £43.53

  4 Cogged V-Belt B 35 BG381019
Cogged V-Belt B 35"
Out of stock
£37.80 £31.50

  5 Idler Pulley 275 BG350114
Idler Pulley 275" Dia
Out of stock
£39.68 £33.07

  7 Nylock Nut 1/4 BG8160001
Nylock Nut 1/4"- 20 Unc
Out of stock
£0.97 £0.81

  10 3/8 BG8171004
3/8" Flat Washer
Out of stock
£0.78 £0.65

  11 Nutlock 3/8-16 BG8160003
Nutlock 3/8-16
Out of stock
£0.97 £0.81

  13 Nut Jam 5/8 BG381110
Nut Jam 5/8"-11 2 Way Locknut Zp
Out of stock
£0.86 £0.72

  15 Nutlock 5/16 BG8160002
Nutlock 5/16"-18
Out of stock
£0.97 £0.81

  17 Retractor Plate Cable BG382332
Retractor Plate Cable
Out of stock
£68.16 £56.80

  18 Washer 1/4 BG8171002
Washer 1/4" Flat
Out of stock
£0.78 £0.65

  21 Key 3/15 BG5108837
Key 3/15" Sq X 1 1/4
Out of stock
£2.96 £2.47

  23 Switch Interlock BG840058
Switch Interlock
Out of stock
£19.44 £16.20

  25 Clutch Torsion Spring BG381138
Clutch Torsion Spring
Out of stock
£4.20 £3.50

  28 Extension Spring 3/4 BG381157
Extension Spring 3/4" X 1" - 3"
Out of stock
£11.10 £9.25

  30 Clutch Cable 37 BG380221
Clutch Cable 37"
Out of stock
£54.60 £45.50

  31 Tine Rod BG380214
Tine Rod
Out of stock
£123.56 £102.97

  33 Journal Bearing 2 BG380213
Journal Bearing 2"
Out of stock
£19.92 £16.60

  34 Fender Washer 5/16 BG8172020
Fender Washer 5/16"
Out of stock
£0.78 £0.65

  35 Nut Jam 5/8 BG8143007
Nut Jam 5/8"-11 Zp
Out of stock
£6.38 £5.32

  36 Screwcap 5/16 BG8041028
Screwcap 5/16"-18 X 1" Hcs Zp
Out of stock
£0.97 £0.81

  38 Retractor Handle BG381201
Retractor Handle
Out of stock
£120.44 £100.37

  39 Screwcap 5/16 BG8041031
Screwcap 5/16"-18 X 1 3/4" Hcs Zp
Out of stock
£0.97 £0.81

  40 Screwcap 1/4 BG8041004
Screwcap 1/4"-20 X 3/4" Gr 5 Hcs Zp
Out of stock
£0.97 £0.81

  45 Washer 1/2 BG8171006
Washer 1/2" Flat
Out of stock
£0.78 £0.65

  46 Bushing 1/2 BG381512
Bushing 1/2" Id X 3/4" Od X 1/2"
Out of stock
£6.43 £5.36

  47 Cotter Pin 1/8 BG8197031
Cotter Pin 1/8" X 1"
Out of stock
£0.78 £0.65

  49 Screwcap 5/16 BG8041032
Screwcap 5/16"-18 X 2" Hcs Zp
Out of stock
£0.97 £0.81

  52 Screwcap 3/8 BG8041052
Screwcap 3/8"-16 X 1 1/2" Hcs Zp
Out of stock
£1.28 £1.07

  55 Washer 5/16 BG381757
Washer 5/16" Uss Thru-Hardened Zinc Yellow
Out of stock
£0.62 £0.52

  56 Shoulder Bolt 1/2 BG381758
Shoulder Bolt 1/2" X 5/8"
Out of stock
£4.20 £3.50

  57 Wheel 12 BG382606
Wheel 12" Semi-Pneumatic W/ 5/8" Bearing Hub
Out of stock
£230.94 £192.45

  58 400 Series Frame BG381769
400 Series Frame
Out of stock
£1,070.40 £892.00

  60 Lower Belt Tensioner Bracket BG381769-10
Lower Belt Tensioner Bracket
Out of stock
£18.20 £15.17

  61 Cover Wa Pl18 BG381770-WA
Cover Wa Pl18
Out of stock
£292.40 £243.67

  67 Switch Lkg Rkr BG500281
Switch Lkg Rkr
Out of stock
£12.92 £10.77

  70 Nut 5/16 BG350346
Nut 5/16" - 18 Ser Hex Wshr Flng Zp
Out of stock
£0.97 £0.81


Description

PL1800H Parts Diagram
