PGX 175 HD - 2020-2021 - 2T0440473/C20 - Castel Garden Ride On Mower Cutting Deck Diagram

Description

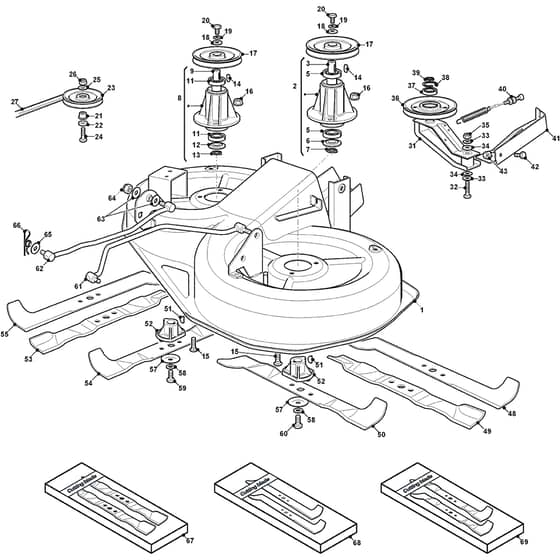

Castel Garden PGX 175 HD Parts Diagram

Product Name - PGX 175 HD

Model Year - 2020-2021

Model Type - NJX 92 Hydro

Art.N - 2T0440473/C20

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382564075/1 Available to backorder	Cutting Plate Black	£387.72 £323.10
1	MO382564116/0 Available to backorder	Cutting Plate Grey Grey	£591.24 £492.70
2	MO382207202/1LC Available to backorder	Main Blade Shaft Ass.Y	£90.80 £75.67
3	MO125020834/0 Available to backorder	Main Blade Shaft	£30.40 £25.33
8	MO382207203/1LC Available to backorder	Secondary Blade Shaft Ass.Y	£90.80 £75.67
9	MO125020835/0 Available to backorder	Secondary Blade Shaft	£30.40 £25.33
11	MO119216047/0 In stock	Bearing	£15.78 £13.15
12	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
13	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
14	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
15	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
16	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
17	MO125601563/0 Available to backorder	Pulley	£43.64 £36.37
19	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
20	MO112793102/0 In stock	Screw	£1.55 £1.29
21	MO125160079/0 Available to backorder	Spacer	£4.08 £3.40
22	MO125670007/0 In stock	Washer	£1.97 £1.64
23	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
24	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
25	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
27	MO135061508/0LC In stock	Drive Belt	£63.29 £52.74
31	MO382318141/2 In stock	Lever	£36.59 £30.49
32	MO112691700/0 In stock	Screw	£1.82 £1.52
33	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
34	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
35	MO112155000/0 In stock	Nut	£1.55 £1.29
36	MO125601564/1 Available to backorder	Pulley	£45.04 £37.53
37	MO119216048/0 In stock	Bearing	£18.31 £15.26
38	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
39	MO112609200/0 Available to backorder	Seeger	£1.55 £1.29
40	MO382004618/0 In stock	Wire	£22.81 £19.01
41	MO382774215/3 Available to backorder	Clamp	£30.97 £25.81
42	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
43	MO112293201/0 In stock	Nut	£1.69 £1.41
48	MO182004344/1 In stock	Left Blade. Winged	£23.29 £19.41
49	MO181004346/3 In stock	Left Mulching. Blade	£14.15 £11.79
50	MO182004353/0 In stock	Left Mulching Blade. Winged	£23.71 £19.76
51	MO112139100/0 In stock	Key	£1.55 £1.29
52	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
53	MO182004352/0 Available to backorder	Right Mulching Blade	£19.93 £16.61
54	MO182004354/0 In stock	Right Mulching Blade. Winged	£23.71 £19.76
55	MO182004345/1 In stock	Right Blade. Winged	£23.29 £19.41
57	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
58	MO112523080/0 In stock	Washer	£1.55 £1.29
59	MO112735695/1 In stock	Screw	£3.79 £3.16
60	MO112735694/0 In stock	Screw	£1.97 £1.64
61	MO382000535/0LC Available to backorder	Equalizer Rod. Left	£35.20 £29.33
62	MO382000533/0LC Available to backorder	Equalizer Rod. Right	£35.20 £29.33
64	MO112156602/0 In stock	Nut	£1.40 £1.17
65	MO325670008/1 In stock	Washer	£1.55 £1.29
66	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
67	MO1134-9223-01 Available to backorder	Mulching Blades. Right And Left Stiga Packed into 181004346.3 + 182004352.0	£43.08 £35.90
68	MO1134-9222-01 Available to backorder	Mulching Winged Blade. Right And Left Stiga Packed into 182004353.0 + 182004354.0	£60.60 £50.50
69	MO1134-9224-01 Available to backorder	Winged Blades. Right And Left Stiga Packed into 182004344.1 + 182004345.1	£59.24 £49.37
