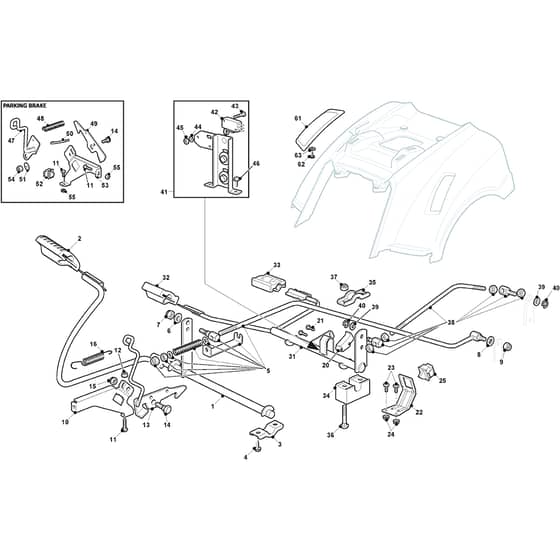

PGX 140 HD - 2013-2020 - 2T0420273/Y13 - Castel Garden Ride On Mower Gearbox Controls Diagram

Name: PGX 140 HD - 2013-2020 - 2T0420273/Y13 - Castel Garden Ride On Mower Gearbox Controls Diagram
SKU: pgx_140_hd_2t0420273_y13_gearbox_controls-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PGX 140 HD - 2013-2020 - 2T0420273/Y13 - Castel Garden Ride On Mower Gearbox Controls Diagram

Description

Castel Garden PGX 140 HD Parts Diagram

Product Name - PGX 140 HD

Model Year - 2013-2020

Model Type - NJX 92 Hydro

Art.N - 2T0420273/Y13

Engine Model - B&S 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382500029/1 Available to backorder	Pedal	£67.43 £56.19
2	MO325110416/0 Available to backorder	Clamp Cover	£10.84 £9.03
4	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
5	MO382000577/0 Available to backorder	Brake Control Rod Assy	£108.68 £90.57
8	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
11	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
14	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
15	MO112155000/0 In stock	Nut	£1.55 £1.29
20	MO325060034/1 Available to backorder	Cam	£2.12 £1.77
21	MO112735404/0 Available to backorder	Screw	£1.55 £1.29
22	MO325547375/0 Available to backorder	Plate	£5.48 £4.57
23	MO112793102/0 In stock	Screw	£1.55 £1.29
24	MO112293201/0 In stock	Nut	£1.69 £1.41
25	MO119410623/0 Available to backorder	Microswitch	£7.62 £6.35
31	MO382000605/1 Available to backorder	Feed.Reverse Gear Control Axle Assy	£68.54 £57.12
32	MO325110417/0 Available to backorder	Clamp Cover Front	£10.84 £9.03
33	MO325110418/0 Available to backorder	Clamp Cover Rear	£10.84 £9.03
34	MO325785185/0 Available to backorder	Support	£3.67 £3.06
35	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
36	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
37	MO112154510/0 In stock	Nut	£1.55 £1.29
38	MO382000578/0 Available to backorder	Drive.Reverse Rod Assy	£38.00 £31.67
39	MO112523040/0 In stock	Washer	£1.49 £1.24
40	MO112000940/0 Available to backorder	Circlip Ø7	£1.55 £1.29
41	MO382394853/0LC Available to backorder	Switch Ass.Y	£56.32 £46.93
42	MO119410609/1LC In stock	Microswitch	£27.17 £22.64
43	MO112735602/0 Available to backorder	Screw	£1.55 £1.29
44	MO112581100/0 Available to backorder	Grower	£1.33 £1.11
45	MO112290791/0 Available to backorder	Nut	£1.55 £1.29
46	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
47	MO382318289/0 Available to backorder	Brake Lever	£24.78 £20.65
48	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
49	MO325253007/1 Available to backorder	Brake Hook	£6.34 £5.28
50	MO125033119/0 Available to backorder	Rod	£7.03 £5.86
51	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
52	MO119410622/1 In stock	Microswitch	£6.62 £5.52
53	MO325785261/0 Available to backorder	Support	£6.62 £5.52
54	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
55	MO112292102/0 In stock	Nut	£1.69 £1.41
61	MO325207171/1 Available to backorder	Cover (Hydro)	£11.86 £9.88
62	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
63	MO112523050/0 In stock	Washer	£1.55 £1.29
