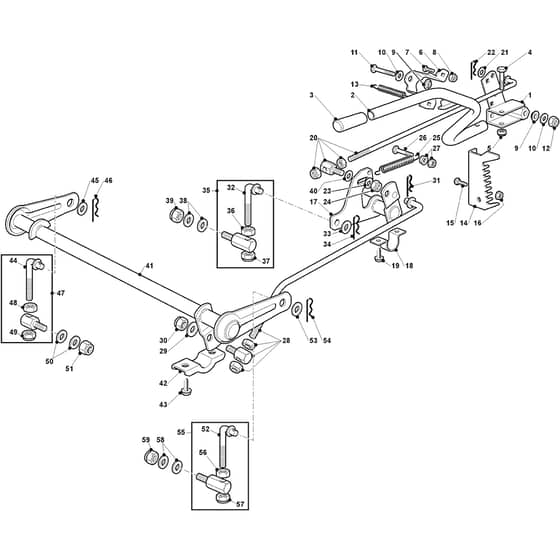

PGX 140 HD - 2013-2020 - 2T0420273/Y13 - Castel Garden Ride On Mower Deck Lifting Diagram

Name: PGX 140 HD - 2013-2020 - 2T0420273/Y13 - Castel Garden Ride On Mower Deck Lifting Diagram
SKU: pgx_140_hd_2t0420273_y13_deck_lifting-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PGX 140 HD - 2013-2020 - 2T0420273/Y13 - Castel Garden Ride On Mower Deck Lifting Diagram

Description

Castel Garden PGX 140 HD Parts Diagram

Product Name - PGX 140 HD

Model Year - 2013-2020

Model Type - NJX 92 Hydro

Art.N - 2T0420273/Y13

Engine Model - B&S 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382774249/0 Available to backorder	Clamp	£27.32 £22.77
2	MO382318219/1 Available to backorder	Lever	£45.04 £37.53
3	MO325394535/0 Available to backorder	Knob	£3.94 £3.28
4	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
5	MO112154510/0 In stock	Nut	£1.55 £1.29
6	MO325650113/0 Available to backorder	Plate	£4.93 £4.11
9	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
10	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
11	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO125430259/0 Available to backorder	Spring	£4.78 £3.98
14	MO325735511/0 Available to backorder	Sector	£7.03 £5.86
15	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
16	MO112293201/0 In stock	Nut	£1.69 £1.41
17	MO382000387/0 In stock	Rear Lifting Deck Axle Assy	£28.72 £23.93
18	MO325547041/1 Available to backorder	Plate	£5.35 £4.46
19	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
20	MO382000618/0 Available to backorder	Cutting Deck Lifting Control Axle Assy	£43.75 £36.46
21	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
22	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
23	MO112523040/0 In stock	Washer	£1.49 £1.24
24	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
25	MO122446402/1 Available to backorder	Spring	£5.06 £4.22
26	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
27	MO112292102/0 In stock	Nut	£1.69 £1.41
28	MO382000537/0 Available to backorder	Connecting Rod Assy	£32.51 £27.09
35	MO382640808/0LC Available to backorder	Tie Rod Assy	£20.72 £17.27
36	MO112295200/0 In stock	Nut	£1.40 £1.17
39	MO112156602/0 In stock	Nut	£1.40 £1.17
40	MO112521360/0 In stock	Washer	£1.55 £1.29
41	MO382000385/0 Available to backorder	Front Lifting Deck Axle Assy	£52.08 £43.40
42	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
43	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
44	MO125840025/0 Available to backorder	Tie Rod	£9.43 £7.86
45	MO325670008/1 In stock	Washer	£1.55 £1.29
46	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
47	MO382640807/1 Available to backorder	Tie Rod Assy Incl. Pos.44-47-48-49	£29.80 £24.83
