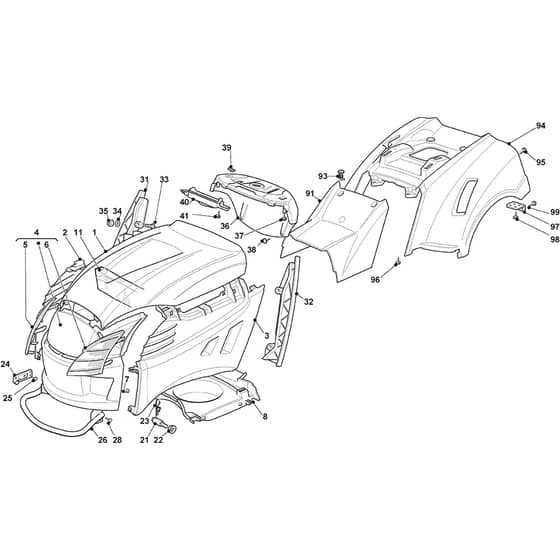

PGX 140 HD - 2013-2020 - 2T0420273/Y13 - Castel Garden Ride On Mower Body Diagram

Name: PGX 140 HD - 2013-2020 - 2T0420273/Y13 - Castel Garden Ride On Mower Body Diagram
SKU: pgx_140_hd_2t0420273_y13_body-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PGX 140 HD - 2013-2020 - 2T0420273/Y13 - Castel Garden Ride On Mower Body Diagram

Description

Castel Garden PGX 140 HD Parts Diagram

Product Name - PGX 140 HD

Model Year - 2013-2020

Model Type - NJX 92 Hydro

Art.N - 2T0420273/Y13

Engine Model - B&S 3130 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325076858/0 Available to backorder	Red Upper Bonnet	£103.12 £85.93
1	MO325076979/0 Available to backorder	Upper Engine Hood. Red Dark Red	£108.40 £90.33
2	MO325207120/1 Available to backorder	Hood. Right	£45.83 £38.19
3	MO325207121/1 Available to backorder	Hood. Left	£45.83 £38.19
4	MO382394647/0 Available to backorder	Hood. Front Stiga Grey	£88.68 £73.90
5	MO325410874/0 Available to backorder	Right Light Grill	£41.27 £34.39
6	MO325410875/0 Available to backorder	Left Light Plastic Cover	£41.27 £34.39
7	MO112735405/0 Available to backorder	Screw	£1.55 £1.29
8	MO325108025/0 Available to backorder	Conveyor	£39.42 £32.85
21	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
22	MO112293201/0 In stock	Nut	£1.69 £1.41
23	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
24	MO325547109/2 Available to backorder	Plate	£4.93 £4.11
25	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
26	MO382869029/1 Available to backorder	Muffler Protection	£89.21 £74.34
28	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
31	MO325599012/0 Available to backorder	Dashboard. Right Profile	£7.03 £5.86
32	MO325599013/0 Available to backorder	Dashboard. Left Profile	£6.90 £5.75
33	MO112815221/0 Available to backorder	Screw	£1.40 £1.17
34	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
35	MO112154510/0 In stock	Nut	£1.55 £1.29
36	MO325120273/0 Available to backorder	Dashboard From S.N 325549	£43.21 £36.01
37	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
38	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
39	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
40	MO325600074/0 Available to backorder	Card Protection	£9.16 £7.63
91	MO325110393/0 Available to backorder	Black Central Cover Black	£44.59 £37.16
91	MO325110486/0 Available to backorder	Red Central Cover Dark Red	£42.23 £35.19
93	MO125580020/2 In stock	Stake	£8.29 £6.91
94	MO325110392/0 Available to backorder	Black Wheels Cover Black	£160.99 £134.16
94	MO325110485/0 Available to backorder	Red Wheels Cover Dark Red	£125.29 £104.41
97	MO325755041/0 Available to backorder	Bracket	£1.69 £1.41
98	MO112728686/0 In stock	Screw	£1.55 £1.29
99	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
