Echo PB-265ESLT Carburettor

Name: Echo PB-265ESLT Carburettor
SKU: pb_265eslt_carburettor-group
Price: 1.72 GBP
Availability: InStock

Part No. pb_265eslt_carburettor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

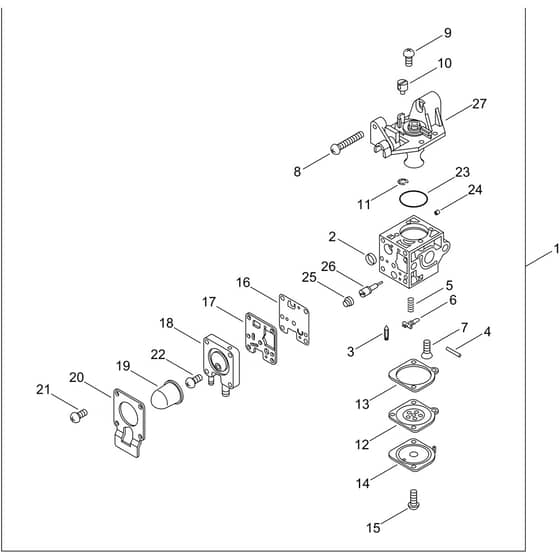

Echo PB-265ESLT - Carburettor - Parts Diagram

	Part No.	Details

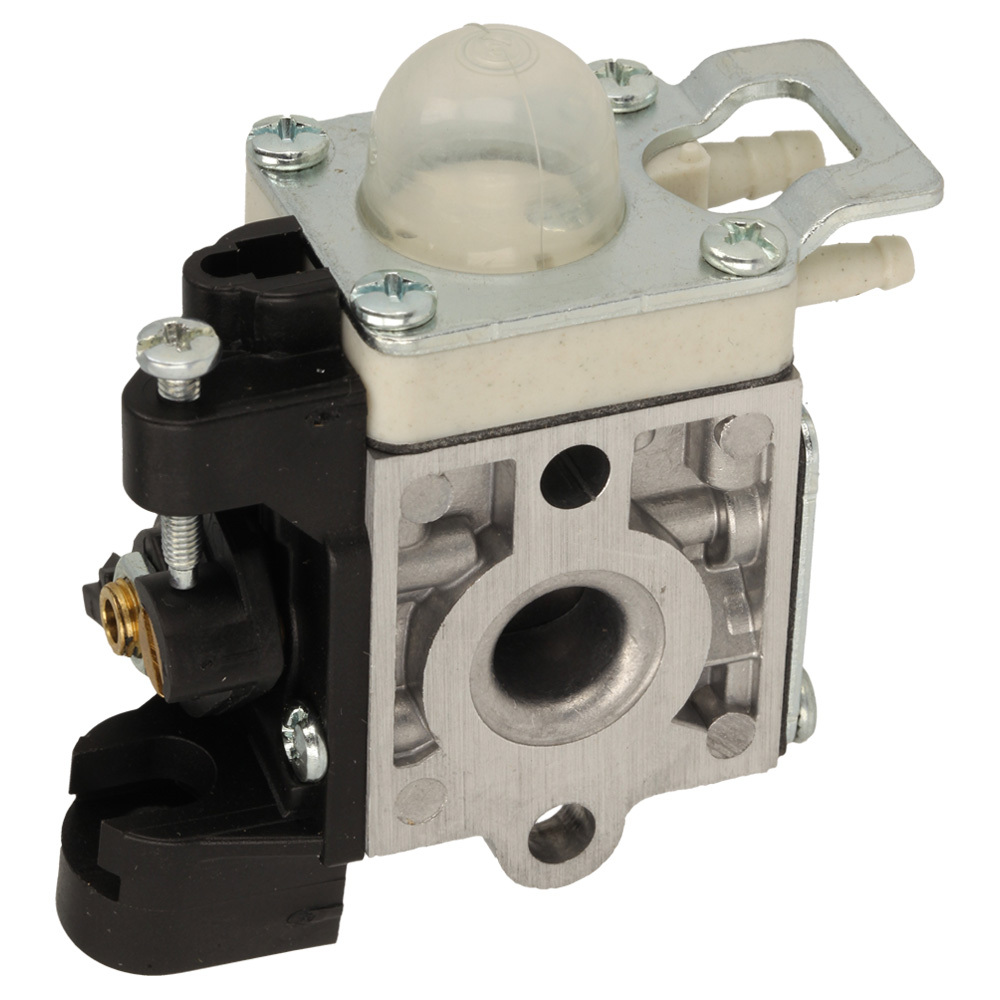

1	ECA021005030 Available to backorder	Diaphragm Carburetor	£69.36 £57.80
2	ECP005000010 Available to backorder	Strainer	£2.65 £2.21
3	EC12533708260 Available to backorder	Inlet Needle Valve	£10.06 £8.38
4	EC12533813930 Available to backorder	Metering Arm Pin	£2.46 £2.05
5	ECP005000940 Available to backorder	Meter. Lever Spring	£2.38 £1.98
6	EC12532308260 Available to backorder	Valve Arm	£5.00 £4.17
7	EC12533942030 Available to backorder	Screw	£2.46 £2.05
8	ECP005000100 Available to backorder	Throttleadjust Screw	£10.72 £8.93
9	EC12534413931 Available to backorder	Screw	£2.26 £1.88
10	ECP005002090 Available to backorder	Post	£8.89 £7.41
11	ECP005000190 Available to backorder	E-Ring	£2.65 £2.21
12	ECP005002230 In stock	Metering Diaphragm	£18.38 £15.32
13	ECP005000200 In stock	Metering Gasket	£2.94 £2.45
14	EC12534252130 Available to backorder	Diaphragm Cover	£8.66 £7.22
15	EC12534452130 Available to backorder	Screw	£2.26 £1.88
16	ECP005000510 In stock	Pump Diaphragm	£9.97 £8.31
17	ECP005000520 In stock	Pump Gasket	£5.02 £4.18
18	ECP005001890 Available to backorder	Asy Primer Base	£35.17 £29.31
19	ECP005003110 In stock	Primer Pump	£6.67 £5.56
20	ECP005000250 Available to backorder	Retainer	£5.00 £4.17
21	ECP005001900 Available to backorder	Screw	£2.06 £1.72
22	ECP005000270 Available to backorder	Screw	£2.36 £1.97
23	ECP005004260 In stock	O-Ring	£6.67 £5.56
24	ECP005001000 Available to backorder	Guide Roller	£2.92 £2.43
25	ECP005001250 Available to backorder	Plug Ball Retainer	£2.81 £2.34
26	ECP005001260 Available to backorder	Mainn Mixture Screw	£9.40 £7.83
27	ECP005002000 Available to backorder	Rotor Cover Asy	£56.42 £47.02
