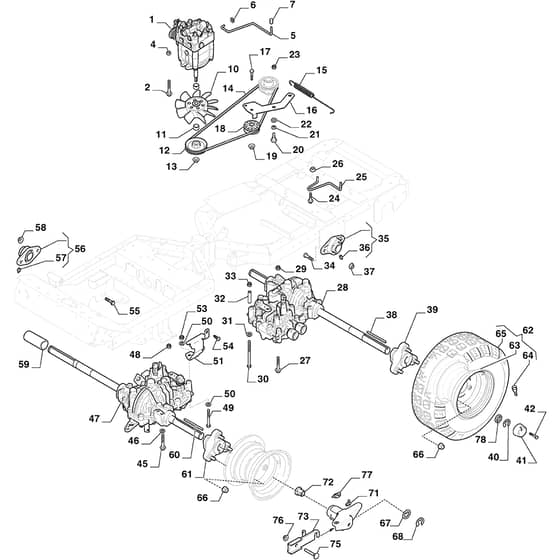

PARK PRO 900 WX - 2024 - 2F6431831/ST1 - Stiga Front Mower Transmission 01 Diagram

Name: PARK PRO 900 WX - 2024 - 2F6431831/ST1 - Stiga Front Mower Transmission 01 Diagram
SKU: park_pro_900_wx_2f6431831_st1_transmission_01-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK PRO 900 WX - 2024 - 2F6431831/ST1 - Stiga Front Mower Transmission 01 Diagram

Description

Stiga PARK PRO 900 WX Parts Diagram

Product Name - PARK PRO 900 WX

Model Year - 2024

Model Type - P 901 PH

Art.N - 2F6431831/ST1

Engine Model - Honda GXV630

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118475000/0 Available to backorder	Hydraulic Pump	£2,069.36 £1,724.47
6	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
7	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
10	MO1134-4190-01 In stock	Fan	£21.12 £17.60
11	MO1134-5862-01 Available to backorder	Spacer	£6.05 £5.04
12	MO1134-5821-01 Available to backorder	Belt Pulley	£38.00 £31.67
14	MO1134-9058-01 In stock	Drive Belt	£21.67 £18.06
15	MO1134-5713-02 Available to backorder	Spring	£12.67 £10.56
16	MO1134-5739-01 Available to backorder	Tension Arm Assy	£43.64 £36.37
17	MO112794300/0 Available to backorder	Screw	£1.82 £1.52
18	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
20	MO1134-0240-00 In stock	Screw	£8.80 £7.33
21	MO9665-0002-00 Available to backorder	Washer	£2.26 £1.88
22	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
24	MO9959-0820-16 In stock	Screw	£1.55 £1.29
25	MO1134-5764-01 Available to backorder	Belt Guide	£9.72 £8.10
26	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
27	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
28	MO118400998/1 Available to backorder	Rear Motor Unit (Ktm 10G)	£994.03 £828.36
30	MO9997-0812-02 Available to backorder	Screw	£1.69 £1.41
32	MO1134-1565-15 Available to backorder	Spacer	£5.06 £4.22
41	MO1134-4796-01 Available to backorder	Hub Cap	£5.06 £4.22
42	MO9947-0540-19 Available to backorder	Screw	£1.97 £1.64
45	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
47	MO118400997/1 Available to backorder	Front Motor Unit (Ktm 10F)	£994.03 £828.36
49	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
50	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
51	MO387785257/0 Available to backorder	Engine Support	£30.89 £25.74
53	MO112155000/0 In stock	Nut	£1.55 £1.29
54	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
55	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
56	MO1134-5703-01 Available to backorder	Flange Bearing Unit	£29.56 £24.63
57	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
59	MO1137-1093-01 Available to backorder	Spacer	£2.40 £2.00
60	MO1134-3383-02 Available to backorder	Key	£8.94 £7.45
61	MO1134-4844-03 Available to backorder	Wheel Hub Assy	£57.43 £47.86
62	MO387680309/1 Available to backorder	Wheel Assy	£202.10 £168.42
63	MO187000454/0 Available to backorder	Rim	£83.75 £69.79
64	MO9545-0500-00 Available to backorder	Valve Assy.	£5.35 £4.46
65	MO137950017/0 Available to backorder	Tyre 17 x 8.00 - 8	£95.59 £79.66
67	MO137670203/0 Available to backorder	Washer	£5.42 £4.52
68	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
68	MO9653-0002-04 Available to backorder	Lock Ring	£3.25 £2.71
71	MO9501-0502-00 Available to backorder	Grease Joint	£8.52 £7.10
72	MO1134-5686-01 In stock	Bearing	£14.22 £11.85
73	MO1134-7465-01 Available to backorder	Attachment Kit Support RH + LH	£63.35 £52.79
75	MO9898-1035-16 Available to backorder	Screw	£2.81 £2.34
76	MO9739-1031-22 In stock	Nut	£1.97 £1.64
77	MO1137-0077-01 In stock	Locking Pin	£3.52 £2.93
78	MO1134-0341-01 Available to backorder	Washer	£6.62 £5.52
