PARK PRO 900 WX - 2024 - 2F6431831/ST1 - Stiga Front Mower Cylinder Head Diagram

Description

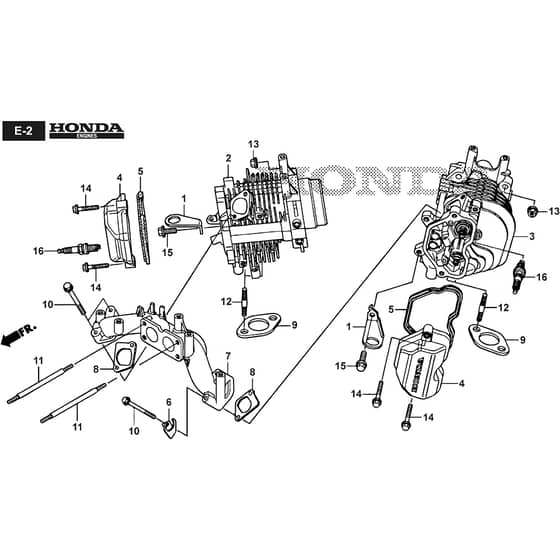

Stiga PARK PRO 900 WX Parts Diagram

Product Name - PARK PRO 900 WX

Model Year - 2024

Model Type - P 901 PH

Art.N - 2F6431831/ST1

Engine Model - Honda GXV630

	Part No.	Details
1	HP11911-Z6L-000 Available to backorder	Hanger. Engine	£6.66 £5.55
2	HP12110-Z6L-010 Available to backorder	Head Comp. Cylinder (#1)	£625.20 £521.00
3	HP12120-Z6L-010 Available to backorder	Head Comp. Cylinder (#2)	£625.20 £521.00
4	HP12311-Z6L-000 Available to backorder	Cover. Cylinder Head	£72.48 £60.40
5	HP12312-Z6L-000 Available to backorder	Packing. Head Cover	£15.60 £13.00
6	HP16722-Z6L-010 Available to backorder	Stay. Fuel Tube Grommet	£5.23 £4.36
8	HP17151-Z6L-010 Available to backorder	Packing. Intake Manifold	£7.73 £6.44
9	HP18333-ZE3-801 In stock	Gasket. Ex. Pipe	Was £6.25 £5.21 Special Price £4.55 £3.79
10	HP90006-Z6L-000 Available to backorder	Bolt. Flange. 8X55	£5.50 £4.58
11	HP90043-Z6L-000 Available to backorder	Bolt. Stud. 6X106	£20.44 £17.03
13	HP94050-10000 Available to backorder	Nut. Flange. 10mm	£3.25 £2.71
14	HP95701-0603000 Available to backorder	Bolt. Flange. 6X30	£1.55 £1.29
15	HP95701-0801600 Available to backorder	Bolt. Flange. 8X16	£1.55 £1.29
16	7956 In stock	Spark Plug [Zfr5F]	£6.72 £5.60
