PARK PRO 900 WX - 2022-2025 - 2F6430831/ST2 - Stiga Front Mower PTO Diagram

Description

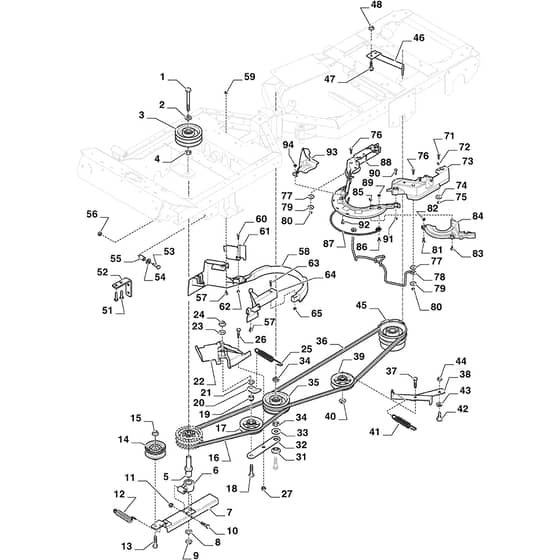

Stiga PARK PRO 900 WX Parts Diagram

Product Name - PARK PRO 900 WX

Model Year - 2022-2025

Model Type - P 901 PH

Art.N - 2F6430831/ST2

Engine Model - Honda GXV630

	Part No.	Details
1	MO9997-1011-06 Available to backorder	Screw	£10.98 £9.15
5	MO1134-5663-01 Available to backorder	Shaft	£46.46 £38.72
6	MO1134-6314-01 In stock	Tension Arm Attachment	£8.66 £7.22
7	MO1134-5660-01 Available to backorder	Tension Arm Assy	£45.04 £37.53
8	MO9699-0030-02 In stock	Washer	£1.97 £1.64
10	MO112689515/0 Available to backorder	Screw	£1.63 £1.36
12	MO1134-5824-01 In stock	Spring	£5.48 £4.57
13	MO112794900/0 Available to backorder	Screw	£1.79 £1.49
14	MO387605013/0 In stock	Tension Roller Assy	£42.22 £35.18
16	MO1134-9098-01 In stock	V-Belt	£22.72 £18.93
17	MO387605009/0 In stock	Tension Wheel	£50.68 £42.23
18	MO9997-1070-12 In stock	Screw	£3.52 £2.93
19	MO1134-1888-06 Available to backorder	Spacer	£8.94 £7.45
20	MO337546545/0 Available to backorder	Spring	£5.22 £4.35
21	MO137038000/0 Available to backorder	Bush	£5.06 £4.22
22	MO337600001/2 Available to backorder	Protection	£9.28 £7.73
23	MO112521360/0 In stock	Washer	£1.55 £1.29
24	MO9739-1031-22 In stock	Nut	£1.97 £1.64
25	MO1134-5713-04 Available to backorder	Spring	£7.62 £6.35
26	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
27	MO112154510/0 In stock	Nut	£1.55 £1.29
31	MO1134-0222-00 Available to backorder	Washer	£16.88 £14.07
32	MO1134-1730-02 In stock	Tensioning Wheel Arm	Was £42.17 £35.14 Special Price £24.55 £20.46
33	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
34	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
35	MO387605002/0 In stock	Double Pulley Assy	£83.06 £69.22
36	MO1134-9097-01 In stock	Drive Belt Service code for Belt. 9585-0147-01	£43.63 £36.36
38	MO1134-5742-01 Available to backorder	Tension Arm	£39.42 £32.85
41	MO1134-5713-03 In stock	Spring	£13.81 £11.51
42	MO1134-0240-00 In stock	Screw	£8.80 £7.33
43	MO9665-0002-00 Available to backorder	Washer	£2.24 £1.87
44	MO112155000/0 In stock	Nut	£1.55 £1.29
45	MO1134-5674-01 Available to backorder	Magnet Clutch	£450.46 £375.38
46	MO1134-6452-01 Available to backorder	Strut	£27.17 £22.64
47	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
48	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
51	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
52	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
53	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
55	MO1134-1565-14 Available to backorder	Spacer	£1.84 £1.53
57	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
58	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
61	MO337060007/0 Available to backorder	Protection Cover	£7.87 £6.56
64	MO337060008/0 Available to backorder	Protection Cover	£7.87 £6.56
72	MO112292102/0 In stock	Nut	£1.70 £1.42
73	MO337060006/0 Available to backorder	Belt Cover	£7.87 £6.56
77	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
78	MO337785100/0 Available to backorder	Support	£56.32 £46.93
79	MO112523050/0 In stock	Washer	£1.57 £1.31
84	MO337600017/0 Available to backorder	Protection Cover	£3.38 £2.82
86	MO112727796/0 Available to backorder	Screw	£1.63 £1.36
87	MO137294101/0 Available to backorder	Belt Guide	£13.81 £11.51
88	MO337060005/0 Available to backorder	Belt Cover	£8.72 £7.27
89	MO112154330/0 In stock	Nut	£1.55 £1.29
90	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
91	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
93	MO337600016/0 Available to backorder	Protection Cover	£3.38 £2.82
