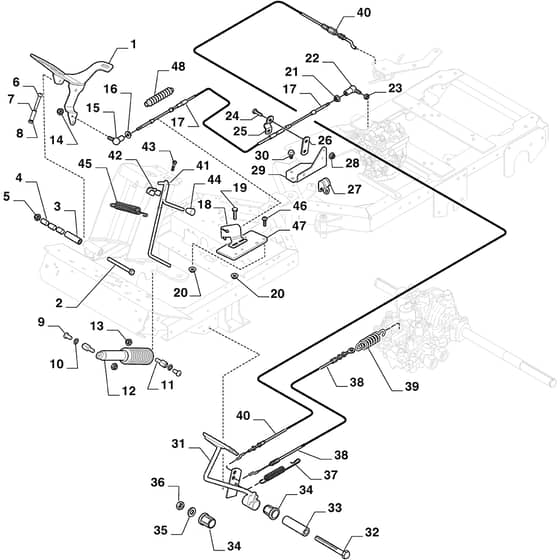

PARK PRO 900 WX - 2022-2025 - 2F6430831/ST2 - Stiga Front Mower Foot Controls Diagram

Name: PARK PRO 900 WX - 2022-2025 - 2F6430831/ST2 - Stiga Front Mower Foot Controls Diagram
SKU: park_pro_900_wx_2f6430831_st2_foot_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK PRO 900 WX - 2022-2025 - 2F6430831/ST2 - Stiga Front Mower Foot Controls Diagram

Description

Stiga PARK PRO 900 WX Parts Diagram

Product Name - PARK PRO 900 WX

Model Year - 2022-2025

Model Type - P 901 PH

Art.N - 2F6430831/ST2

Engine Model - Honda GXV630

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387500001/1 Available to backorder	Drive Pedal	£85.87 £71.56
2	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
3	MO137160000/0 Available to backorder	Spacer	£21.83 £18.19
4	MO137040600/0 Available to backorder	Bush	£3.52 £2.93
6	MO112760520/0 Available to backorder	Screw	£1.55 £1.29
7	MO1134-1565-14 Available to backorder	Spacer	£1.82 £1.52
8	MO112155015/0 Available to backorder	Nut	£1.69 £1.41
9	MO112760600/1 Available to backorder	Screw	£2.26 £1.88
10	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
11	MO137510302/0 Available to backorder	Pin	£5.35 £4.46
12	MO1134-4187-01 Available to backorder	Damper	£137.86 £114.88
13	MO112155000/0 In stock	Nut	£1.55 £1.29
17	MO187000210/0 In stock	Cable	£87.98 £73.32
18	MO337546551/0 Available to backorder	Plate	£12.67 £10.56
19	MO9959-0620-16 Available to backorder	Screw	£1.97 £1.64
20	MO112292102/0 In stock	Nut	£1.69 £1.41
22	MO9570-0001-00 In stock	Elbow Link	£19.57 £16.31
23	MO112154330/0 In stock	Nut	£1.55 £1.29
24	MO112789021/0 Available to backorder	Screw	£1.82 £1.52
25	MO1134-0266-00 Available to backorder	Attaching Clamp	£7.03 £5.86
26	MO325547443/0 Available to backorder	Clamp Plate	£6.05 £5.04
27	MO118375061/0 Available to backorder	Hose Clamp	£5.35 £4.46
28	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
29	MO387773555/1 Available to backorder	Clamp	£29.56 £24.63
30	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
31	MO387500003/0 Available to backorder	Brake Pedal Assy	£67.57 £56.31
32	MO9997-1070-12 In stock	Screw	£3.52 £2.93
33	MO1134-5677-02 Available to backorder	Spacer	£11.12 £9.27
34	MO1134-0068-00 Available to backorder	Bushing	£4.37 £3.64
35	MO9699-0030-02 In stock	Washer	£1.97 £1.64
36	MO9739-1031-22 In stock	Nut	£1.97 £1.64
37	MO4231-0013-00 In stock	Spring	£8.52 £7.10
38	MO137065319/0 Available to backorder	Cable. Thread Engine Brake	£38.00 £31.67
39	MO1134-5989-01 Available to backorder	Spring	£10.27 £8.56
40	MO137065318/0 Available to backorder	Cable	£35.20 £29.33
41	MO387000301/0 Available to backorder	Rod	£32.24 £26.87
42	MO1134-4002-01 Available to backorder	Brake Rod Attachment	£11.96 £9.97
43	MO112728697/0 In stock	Screw	£1.55 £1.29
44	MO1134-2786-01 Available to backorder	Knob	£6.05 £5.04
45	MO1131-1497-01 Available to backorder	Brake Spring	£10.20 £8.50
46	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
47	MO387773545/0 Available to backorder	Bracket	£21.83 £18.19
48	MO337260001/0 Available to backorder	Hst Cable Rubber Protection	£4.93 £4.11
