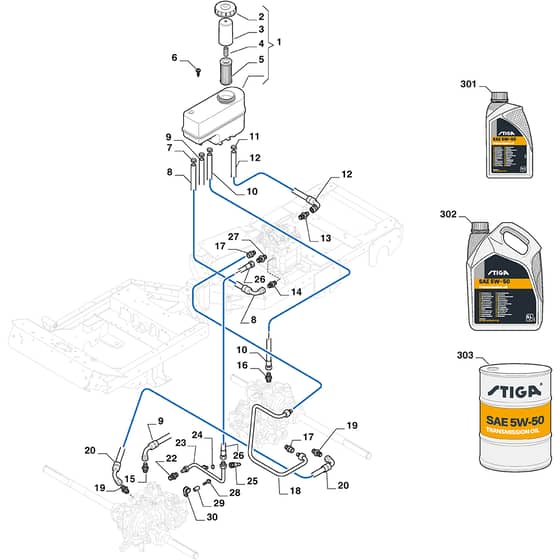

PARK PRO 740 IOX - 2021 - 2F6430931/ST1P - Stiga Front Mower Transmission 02 Diagram

Description

Stiga PARK PRO 740 IOX Parts Diagram

Product Name - PARK PRO 740 IOX

Model Year - 2021

Model Type - P 901 PH

Art.N - 2F6430931/ST1P

Engine Model - Honda GXV690

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387735253/2 Available to backorder	Oil Tank	£135.13 £112.61
2	MO1137-0272-01 Available to backorder	Tank Cap	£32.38 £26.98
3	MO1134-5963-01 Available to backorder	Cover-Oil Filter	£11.53 £9.61
4	MO1134-5964-01 Available to backorder	Spring	£11.27 £9.39
5	MO118803490/0 In stock	Oil Filter Ø 45 - L.130	£20.14 £16.78
6	MO112728697/0 In stock	Screw	£1.55 £1.29
8	MO387869518/1 Available to backorder	Hydraulic Hose	£66.16 £55.13
9	MO387869517/1 Available to backorder	Hydraulic Hose	£99.95 £83.29
10	MO387869516/1 Available to backorder	Hydraulic Hose	£36.59 £30.49
11	MO118375059/0 Available to backorder	Fair Led	£14.86 £12.38
12	MO387869519/1 Available to backorder	Hydraulic Hose	£74.62 £62.18
14	MO1134-4282-01 Available to backorder	Hydraulic Nipple	£45.04 £37.53
16	MO1134-5809-01 Available to backorder	Hydraulic Coupling	£17.60 £14.67
17	MO112375004/0 Available to backorder	Hydraulic Coupling	£12.76 £10.63
17	MO1134-5808-01 Available to backorder	Hydraulic Coupling Replaced by 112375004.0	£45.46 £37.88
18	MO387869500/0 Available to backorder	Oil Hose	£97.14 £80.95
20	MO387869530/0 Available to backorder	Oil Hose	£146.41 £122.01
22	MO1134-5875-01 Available to backorder	Hydraulic Coupling	£63.23 £52.69
23	MO1134-6039-01 Available to backorder	Hydraulic Pipe Assy	£190.04 £158.37
24	MO1134-4948-01 Available to backorder	Washer	£2.68 £2.23
25	MO1134-6042-01 Available to backorder	Quick Coupling-Male	£30.97 £25.81
26	MO387869513/0 Available to backorder	Oil Hose	£106.27 £88.56
27	MO1134-5810-01 Available to backorder	Hydraulic Coupling	£17.53 £14.61
28	MO9578-0028-01 Available to backorder	Tube Clamp	£9.43 £7.86
29	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
30	MO1134-1565-09 Available to backorder	Spacer	£14.22 £11.85
301	MO1111-9281-01 Available to backorder	Transmission Oil Sae 5W-50 1.4L	£29.47 £24.56
302	MO1111-9282-01 In stock	Transmission Oil Sae 5W-50 5L	£100.91 £84.09
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.29 £787.74
