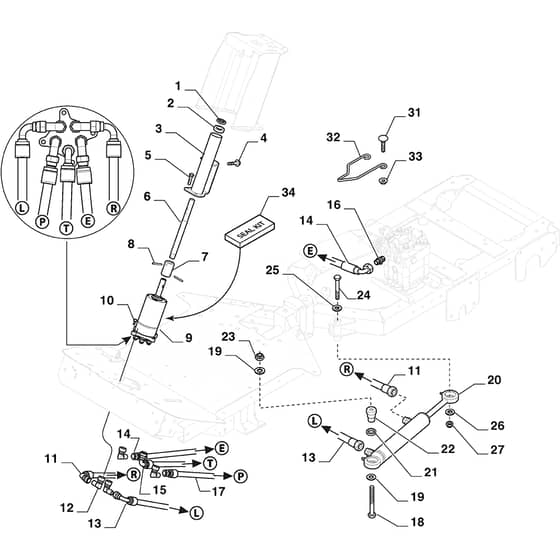

PARK PRO 740 IOX - 2021 - 2F6430931/ST1P - Stiga Front Mower Steering Diagram

Description

Stiga PARK PRO 740 IOX Parts Diagram

Product Name - PARK PRO 740 IOX

Model Year - 2021

Model Type - P 901 PH

Art.N - 2F6430931/ST1P

Engine Model - Honda GXV690

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9695-0011-00 Available to backorder	Washer	£2.12 £1.77
2	MO9549-0017-00 Available to backorder	Ball Bearing	£11.82 £9.85
3	MO387650001/0 Available to backorder	Stiffening	£88.04 £73.37
4	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
5	MO9939-0612-16 Available to backorder	Screw	£1.97 £1.64
6	MO1137-0045-01 Available to backorder	Steering Rod	£50.68 £42.23
7	MO137040601/0 Available to backorder	Spacer	£21.12 £17.60
8	MO9595-0256-01 Available to backorder	Locating Pin	£2.12 £1.77
9	MO187305500/0 Available to backorder	Steering Booster	£1,196.58 £997.15
10	MO9959-0820-16 In stock	Screw	£1.55 £1.29
11	MO387869501/1 Available to backorder	Oil Hose	£80.23 £66.86
12	MO112000401/0 Available to backorder	Tube Connection	£12.53 £10.44
13	MO387869502/1 Available to backorder	Oil Hose	£83.06 £69.22
14	MO387869507/1 Available to backorder	Oil Hose	£97.14 £80.95
15	MO387869506/1 Available to backorder	Oil Hose	£101.35 £84.46
16	MO1134-4282-01 Available to backorder	Hydraulic Nipple	£45.04 £37.53
17	MO387869508/1 Available to backorder	Oil Hose	£97.14 £80.95
18	MO112760572/0 Available to backorder	Screw	£5.48 £4.57
19	MO112521360/0 In stock	Washer	£1.55 £1.29
20	MO187584001/0 Available to backorder	Piston	£605.32 £504.43
21	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
22	MO137510301/0 Available to backorder	Pin	£13.51 £11.26
23	MO112156602/0 In stock	Nut	£1.40 £1.17
24	MO112692080/0 Available to backorder	Screw	£1.55 £1.29
25	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
26	MO112524006/0 Available to backorder	Washer	£2.40 £2.00
26	MO112524010/0 Available to backorder	Washer Replaced code 112524006.0	£1.82 £1.52
27	MO112155000/0 In stock	Nut	£1.55 £1.29
31	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
32	MO137295200/0 Available to backorder	Guide	£20.28 £16.90
33	MO112292102/0 In stock	Nut	£1.69 £1.41
34	MO1139-2081-01 Available to backorder	Seal Kit	£188.64 £157.20
