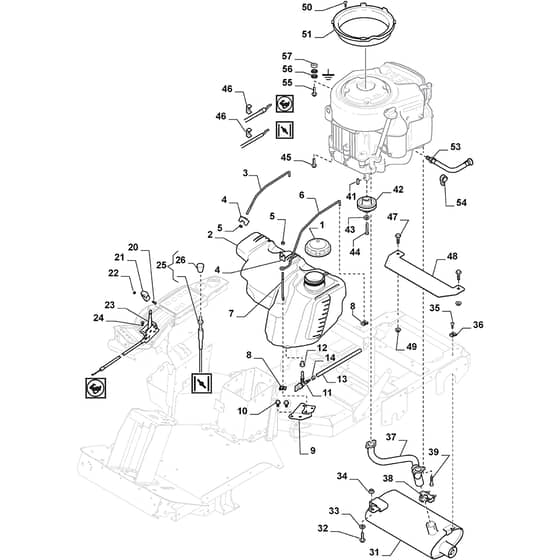

PARK PRO 740 IOX - 2015-2019 - 13-6491-11 - Stiga Front Mower Engine Diagram

Name: PARK PRO 740 IOX - 2015-2019 - 13-6491-11 - Stiga Front Mower Engine Diagram
SKU: park_pro_740_iox_13_6491_11_engine-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK PRO 740 IOX - 2015-2019 - 13-6491-11 - Stiga Front Mower Engine Diagram

Description

Stiga PARK PRO 740 IOX Parts Diagram

Product Name - PARK PRO 740 IOX

Model Year - 2015-2019

Model Type - P 901 PH

Art.N - 13-6491-11

Engine Model - B&S Intek 8270

Be the first to review this product

0 product questions

	Part No.	Details
1	MO137793050/0 Available to backorder	Fuel Cap	£45.26 £37.72
2	MO337735110/1 Available to backorder	Fuel Tank	£133.74 £111.45
3	MO137840001/0 Available to backorder	Fuel Tank Loop	£19.78 £16.48
4	MO1134-4481-02 Available to backorder	Wing Nut	£5.76 £4.80
5	MO112154510/0 In stock	Nut	£1.55 £1.29
6	MO137840002/0 Available to backorder	Fuel Tank Loop	£19.57 £16.31
7	MO137840003/0 Available to backorder	Fuel Tank Loop	£5.06 £4.22
8	MO1134-4176-01 Available to backorder	Clips	£4.78 £3.98
9	MO337785023/0 Available to backorder	Tank Support	£29.56 £24.63
10	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
11	MO118563206/0 In stock	Fuel Shut-Off Valve	£23.65 £19.71
12	MO337260156/0 In stock	Gasket From S.N 20CA1FMV000001	£8.66 £7.22
13	MO1134-2975-15 Available to backorder	Fuel Tube Cutting length 0.65 mt	£16.09 £13.41
14	MO9578-0023-02 Available to backorder	Hose Clamp	£6.47 £5.39
20	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
21	MO337592150/0 Available to backorder	Knob	£2.95 £2.46
22	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
23	MO187000201/1 Available to backorder	Throttle Control From S.N 19IA1FMV000168	£63.35 £52.79
24	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
25	MO137090200/0 Available to backorder	Choke Control	£69.97 £58.31
26	MO1134-4338-01 Available to backorder	Control Button-Choke	£15.42 £12.85
31	MO1137-0179-01 Available to backorder	Muffler Assy	£514.68 £428.90
33	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
35	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
36	MO1137-1130-01 Available to backorder	Washer	£3.79 £3.16
37	MO118738253/1 Available to backorder	Exhaust Pipe	£214.64 £178.87
38	MO084-351-01 Available to backorder	Band	£11.82 £9.85
39	MO112737450/0 Available to backorder	Screw	£3.79 £3.16
39	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
41	MO9600-0251-00 Available to backorder	Key	£4.50 £3.75
42	MO1137-0207-01 Available to backorder	Engine Belt Pulley	£36.59 £30.49
43	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
44	MO112737320/0 In stock	Screw	£4.37 £3.64
45	MO9955-3725-16 Available to backorder	Screw	£2.53 £2.11
46	MO1137-0115-01 Available to backorder	Wire Clamp	£2.26 £1.88
47	MO9959-0820-16 In stock	Screw	£1.55 £1.29
48	MO1137-0072-01 Available to backorder	Deflector	£64.20 £53.50
49	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
50	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
51	MO337108501/0 Available to backorder	Air Conveyor	£11.88 £9.90
53	MO387869524/0 Available to backorder	Oil Discharge Extension	£16.34 £13.62
54	MO133320509/0 Available to backorder	Cable Holder	£1.40 £1.17
55	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
56	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
57	MO112154210/0 Available to backorder	Self-Lock Winged Nut M8 Din 6927	£1.69 £1.41
